SS316 Lithium Ion Battery Testing Equipment , Swagelok Battery Test Cell

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-SW
Minimum Order Quantity 1 Piece
Price USD100-120/Piece
Packaging Details Wooden packing
Delivery Time 14
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-SW Stainless Stell Caps Outer Diameter: 25.4mm
Teflon Body Inner Diameter:13mm Materials SS316 Stainless Steel
T5 Holdes5 Cells Dimension: 500 X 70* 90mm T8 Holdes 8 Cells Dimension: 800 X 70 * 90mm
High Light

swagelok type cells


coin cells simulator


coin cell test

Leave a Message
Product Description

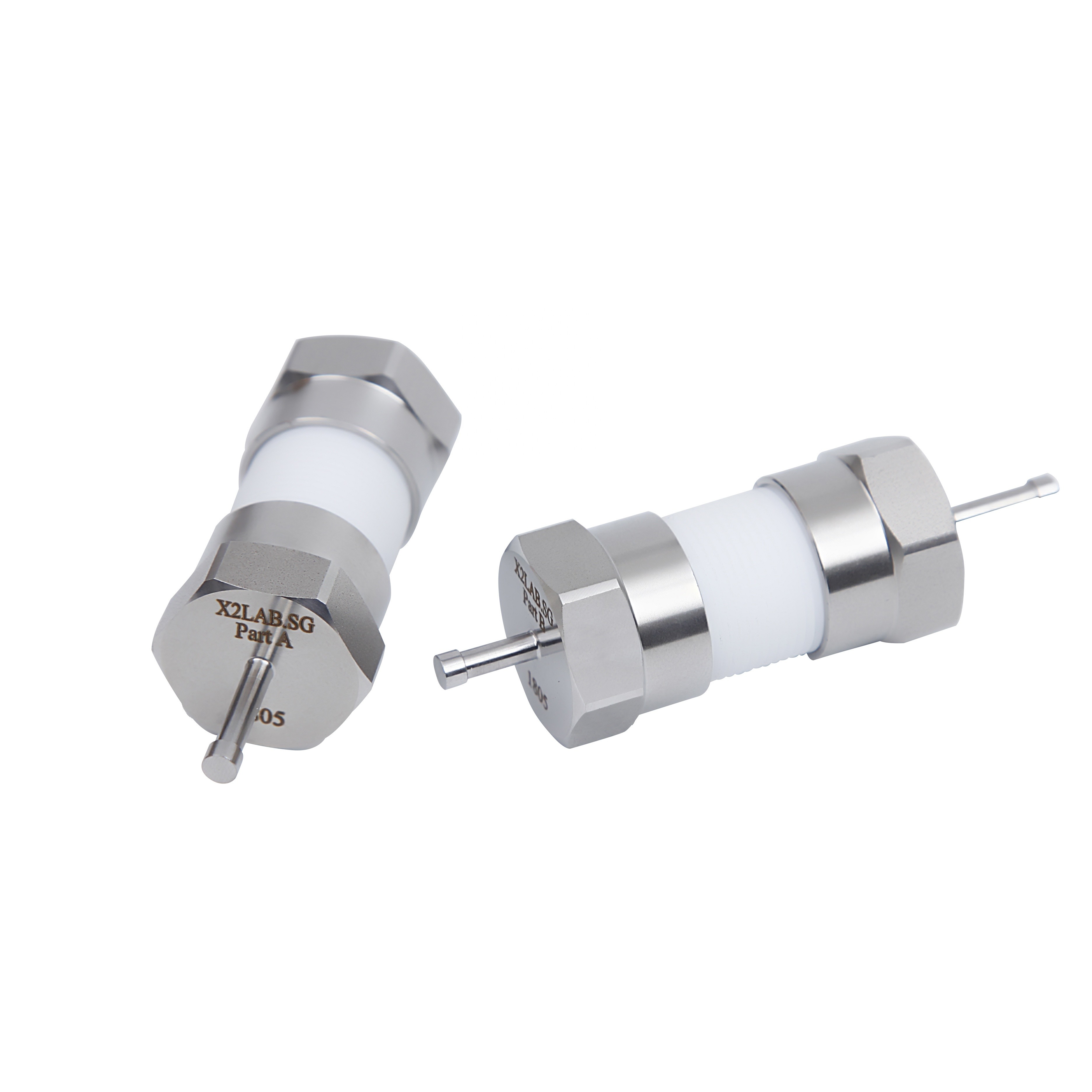

Button Cell Swagelok-Type Cell for Cell Testing

swagelok-type cells

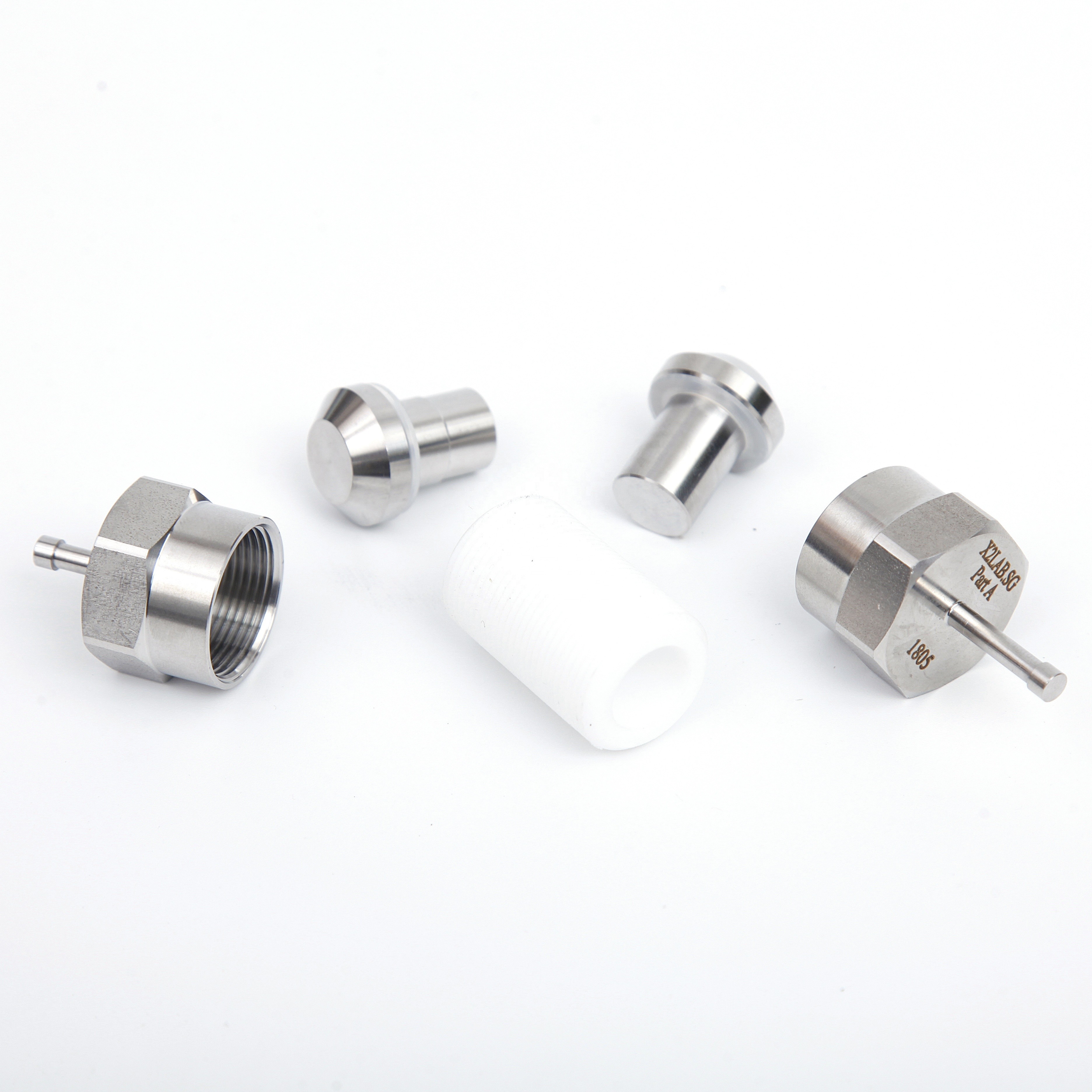

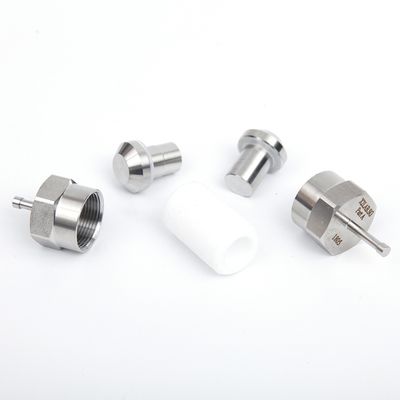

This swagelok-type cells are specially designed to facilitate lithium ion battery research. It's made of 5 parts, as shown in the

Dimensions of the parts:
1. Stainless Stell caps(outer diameter: 25.4mm)
2. Teflon body(inner diameter:13mm)
3. Materials: SS316 stainless steel


Dimensions of the parts
Stainless Stell caps
outer diameter: 25.4mm
Teflon body
inner diameter:13mm
SS316 stainless steel
Two types of racks are available
T5 Holdes5 cells
Dimension: 500 x 70* 90mm
T8 Holdes 8 cells
Dimension: 800 x 70 * 90mm
Bracket material
