Energy Saving Lithium Battery Testing Equipment 512 Point 9KW AC380V

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-BTS512J
Minimum Order Quantity 1 Set
Price USD8000-12000/Set
Packaging Details Wooden packing
Delivery Time 14
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Power 9KW Input Power AC380V ±10%/50Hz
Number Of Main Channels Per Unit 512 Fixture Spacing 85mm
Discharge Voltage Range 4.5~2V Output Range 6000mA
High Light

380V Lithium Battery Testing Equipment


9KW Lithium Battery Testing Equipment


512Point Lithium Battery Test Equipment

Leave a Message
Product Description

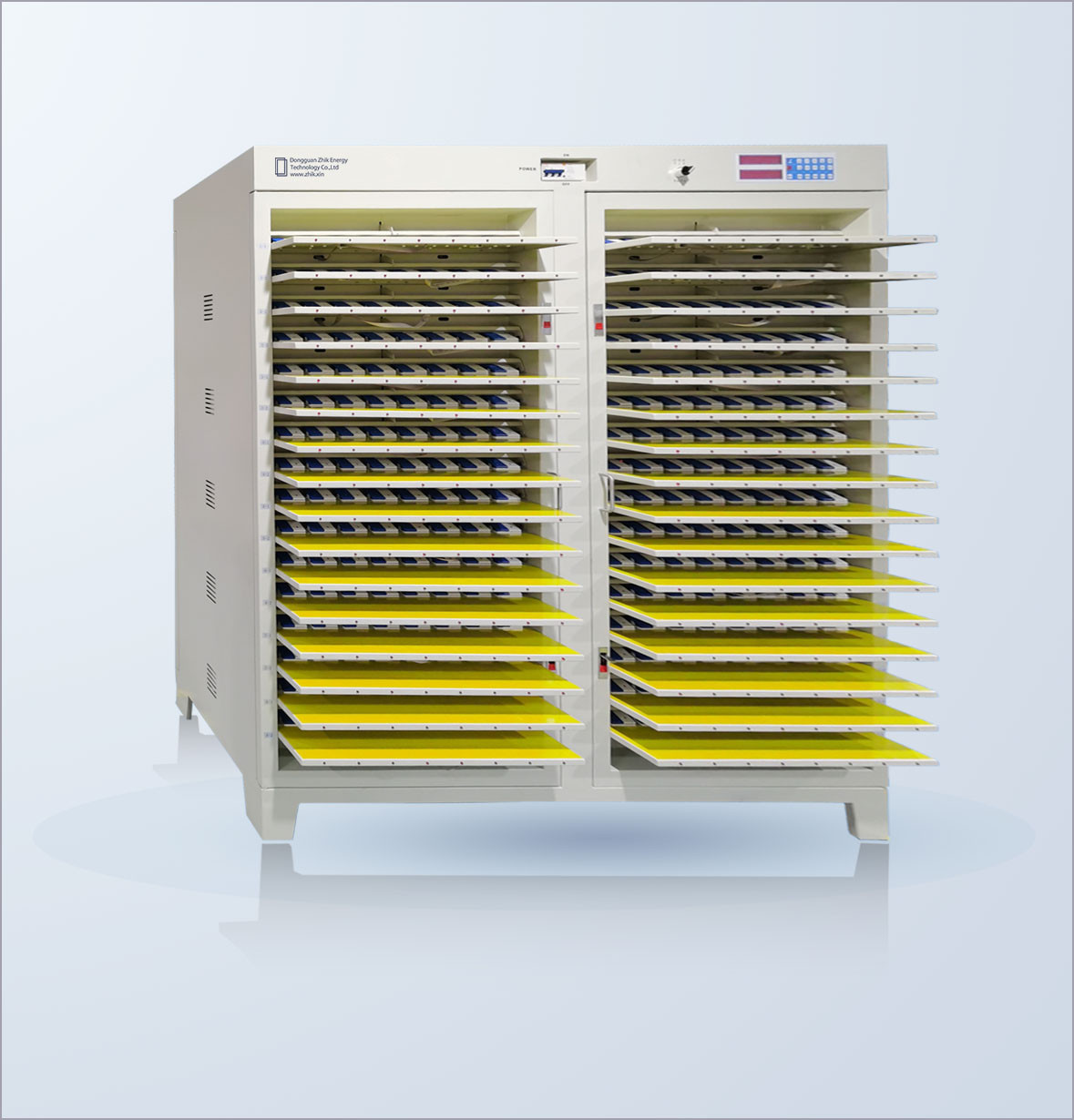

512-Point Energy-Saving Lithium Battery Test Equipment

Equipment structure
Number of device channels: 512 channels in total
Dimensions: width 1680mm × depth 800mm × height 1840mm
Chassis color: standard off-white (can be customized)

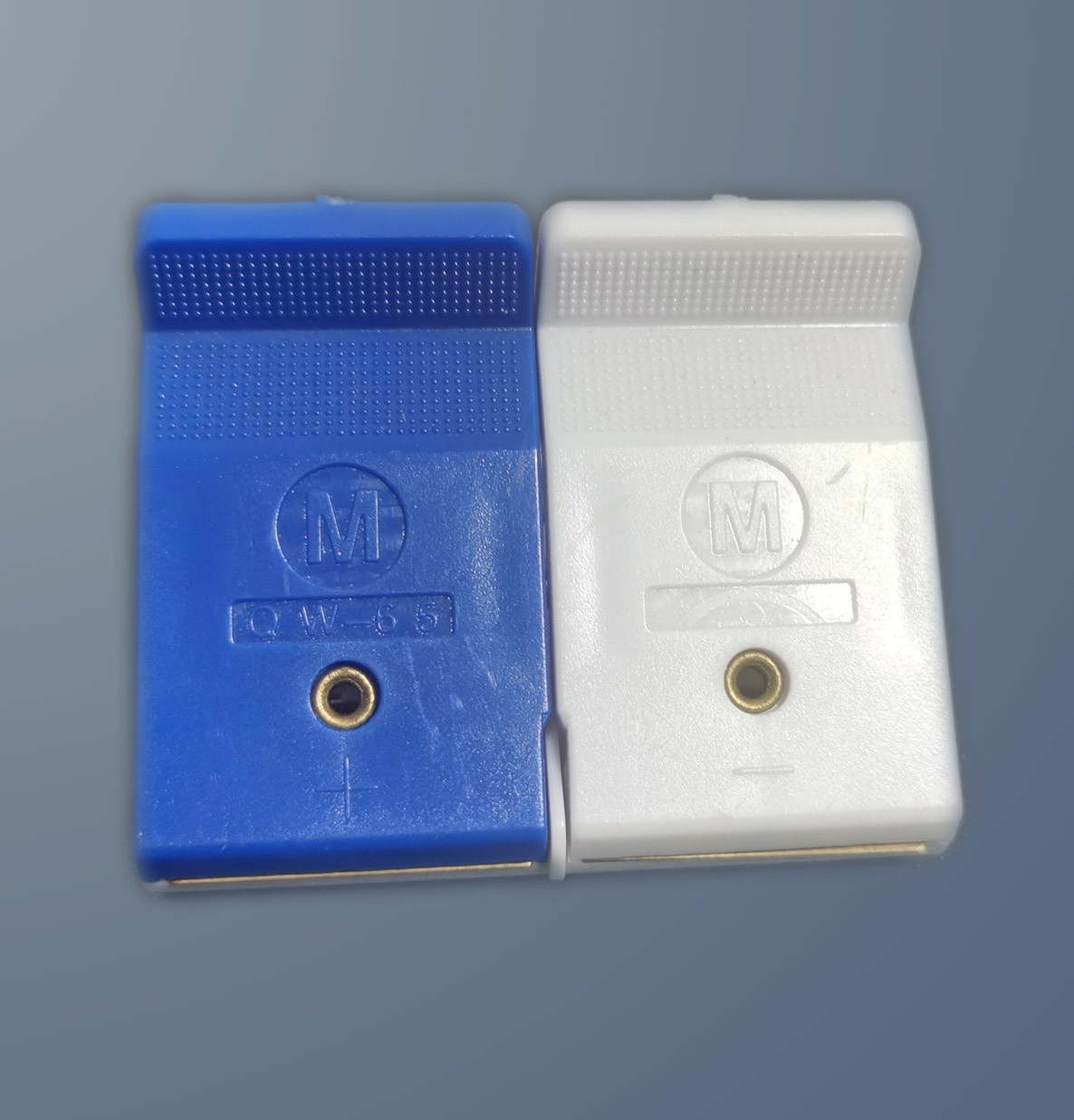

Clamp form: 65 one-piece snap-on polymer
Fixture spacing: 85mm
Supported battery specifications: pole piece < 65mm, width < clamp spacing
Working power supply: three-phase five-wire system AC380V±10%, 50HZ
Working power consumption: ≤9KW
Working environment: temperature 0 ~ 40 ℃, relative humidity ≤ 80%
Cooling method: natural air intake, upward exhaust


Channel parameters
Voltage measurement range: 0 ~ 5V
Battery voltage range: charging 0~4.5V; discharging 4.5~2V
Constant voltage voltage range: 2.5 ~ 4.5V
Voltage accuracy: ±(1‰ reading+1‰ full scale)
Voltage Resolution: 1mV
Voltage stability: ≤1‰
Current range: charging 20mA~2A; discharging 20mA~2A
Current accuracy: ±(1‰ reading+1‰ full scale)
Current resolution: 1mA
Current stability: ≤1‰

Software function
Control method: software installed computer connection equipment work, the whole cabinet control
Communication method: serial port, baud rate 57600
Process setting: up to 32 steps and 256 cycles can be set
Charging mode: constant current, constant voltage, constant current and constant voltage
Charge cut-off conditions: voltage, current, time, capacity
Discharge mode: constant current
Discharge cut-off conditions: voltage, time, capacity
Protection functions: overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power failure protection, data breakpoint recovery
Time range: arbitrarily set within 0 to 30000 minutes, the time unit is min
Time accuracy: ≤±1‰
Sampling inspection cycle: ≤8s
Minimum data recording frequency: ≤8s
Battery sorting: sorting according to (capacity, time, open circuit voltage, discharge platform, etc.)
Data processing: can record data such as voltage, current, time, capacity, etc., automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data, provide data curve and cycle diagram; can output generated text, EXCEL, WORD or MDB database format file
