100V 20A Lithium Ion Battery Testing Equipment 1400W for Charge And Discharge Test

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-BCDS100
Minimum Order Quantity 1 Set
Price USD6600-12000/Set
Packaging Details Wooden packing
Delivery Time 14
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Input Voltage 220V Measuring Range 10-100V
Precision 0.2% Overcharge Protection Current 5~10A
Over Discharge Protection Current 5~20mA Discharge Power 1400W
High Light

20A Lithium Ion Battery Testing Equipment


100V Lithium Ion Battery Testing Equipment


1400W lithium battery discharge tester

Leave a Message
Product Description

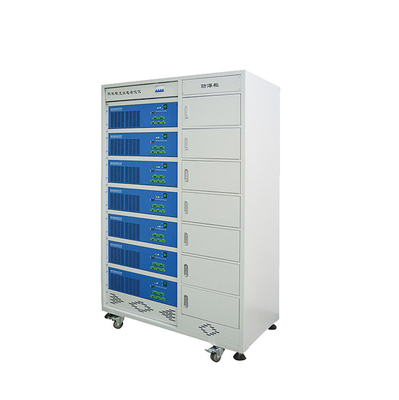

Lithium Battery Charge And Discharge Test Cabinet 100V 20A


1. Introduction to the scope of application and functions of the equipment
1.1 Scope of application of BCDS: BCDS series charge and discharge test equipment is mainly used for charge and discharge cycle test of lithium battery
1.2 Test items: battery charging protection voltage, discharge protection voltage, capacity, etc. The device has four test steps of charging, discharging, shelving, and cycling. By editing the corresponding steps, the battery can be tested according to the set process.

2.Second, the main performance of the test equipment:
2.1 Charge and discharge function:
It has constant current and constant voltage charging function and constant current discharging function, which can charge and discharge the battery and record the battery capacity.
2.2 Charge and discharge interface:
Fully meet the requirements of the same port for charging and discharging of the battery pack and separate ports for charging and discharging, that is, 2 wires (P+ P-) and 3 wires (P+ P- C-). At the same time, the power tool battery (CH+ P+ P-) can be aged for the charging protection of the positive plate and the discharge protection of the negative plate.
2.3 Check the voltage protection:
By charging and discharging the battery, it is detected whether the charging protection and discharging protection of the battery work.
2.4 Security protection:
Anti-reverse connection protection function; voltage upper and lower limit setting protection; safe discharge current protection;
2.5 Online mode:
If the instrument is single or less than 5, it can be connected to the PC through the serial port; if more than 5 use the network connection mode, the PC only needs to provide one network port to control the instruments within 60.
2.6 Control system:
The software system adopts the classic and mature C/S mode. There are two communication modes: serial port and network. The serial port can realize accurate communication between several instruments in short distance, and the network can realize accurate communication between many instruments in long distance.
2.7 PC software:
Based on the Windows operation interface, the SQL database is used to store the test data, which greatly facilitates the staff to query data online and export data. According to the battery barcode, time, and device number, the charge and discharge aging curve can be viewed, and the curve can be exported at the same time.
