512 Point Battery Testing Machine With Quick Loading Fixture 9000W 6000mA

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-BTS512k
Minimum Order Quantity 1 Set
Price USD8000-12000/Set
Packaging Details Wooden packing
Delivery Time 14
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Power 9000W Input Power AC380V ±10%/50Hz
Number Of Main Channels Per Unit 512 Charging Voltage Range 4.5V
Discharge Voltage Range 4.5~2V Output Range 6000mA
High Light

5V3A Battery testing Equipment


512 Channel Battery capacity Tester


Battery Charging And Discharging tester

Leave a Message
Product Description

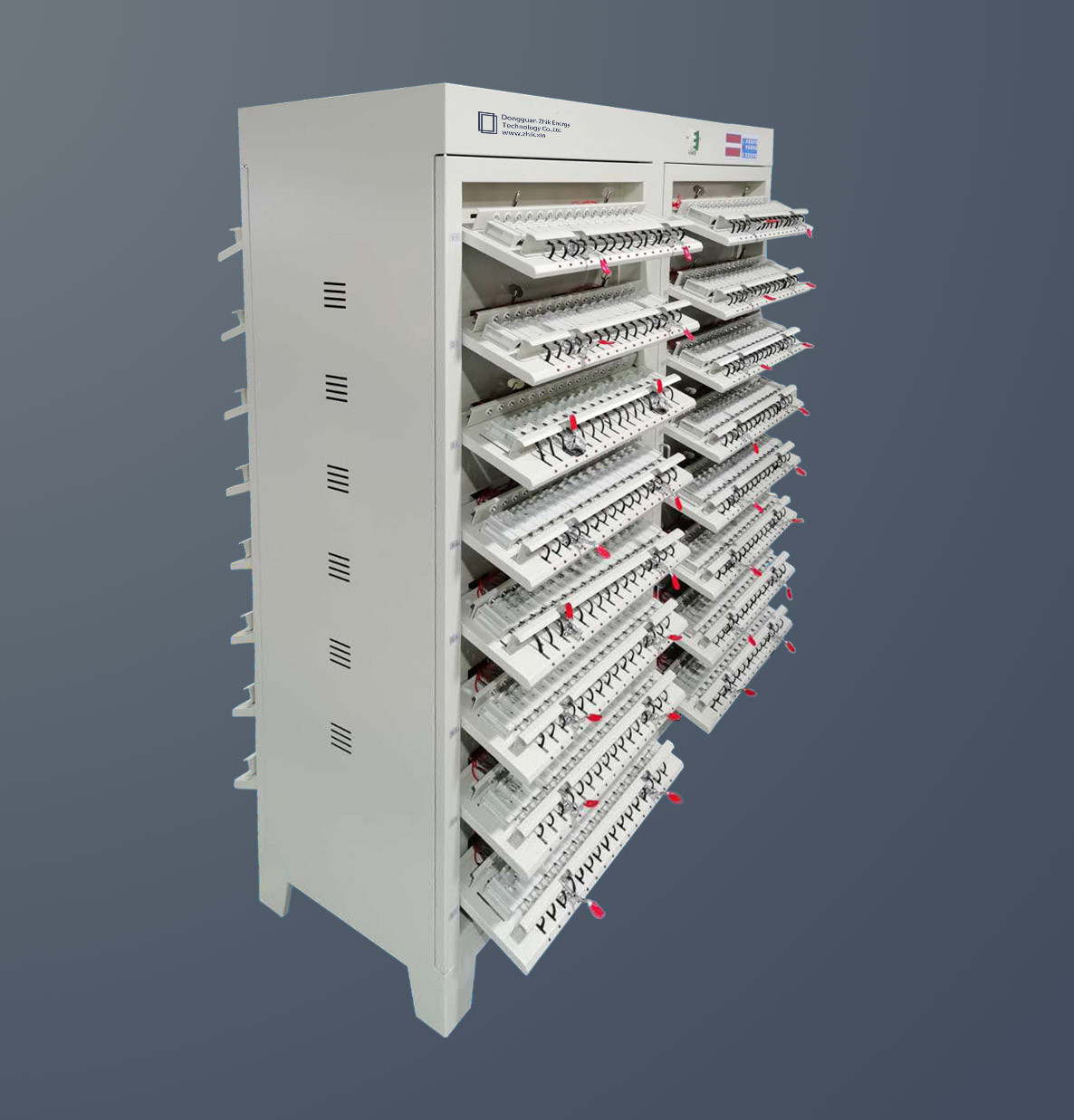

512 Point Cylindrical Battery Tester with Quick Loading Fixture




Supporting Software Functions:

A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors;

B) Battery capacity indication of any section (up to 100 sections);

C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is ≤ 4 Second;

D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);

E) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data;

F) Set operator authority and operate in different levels;

Display charge discharge curve and cycle chart;


Number of device channels: 512 channels in total
Dimensions: width 1620mm × depth 850mm × height 1840mm
Chassis color: standard off-white (can be customized)

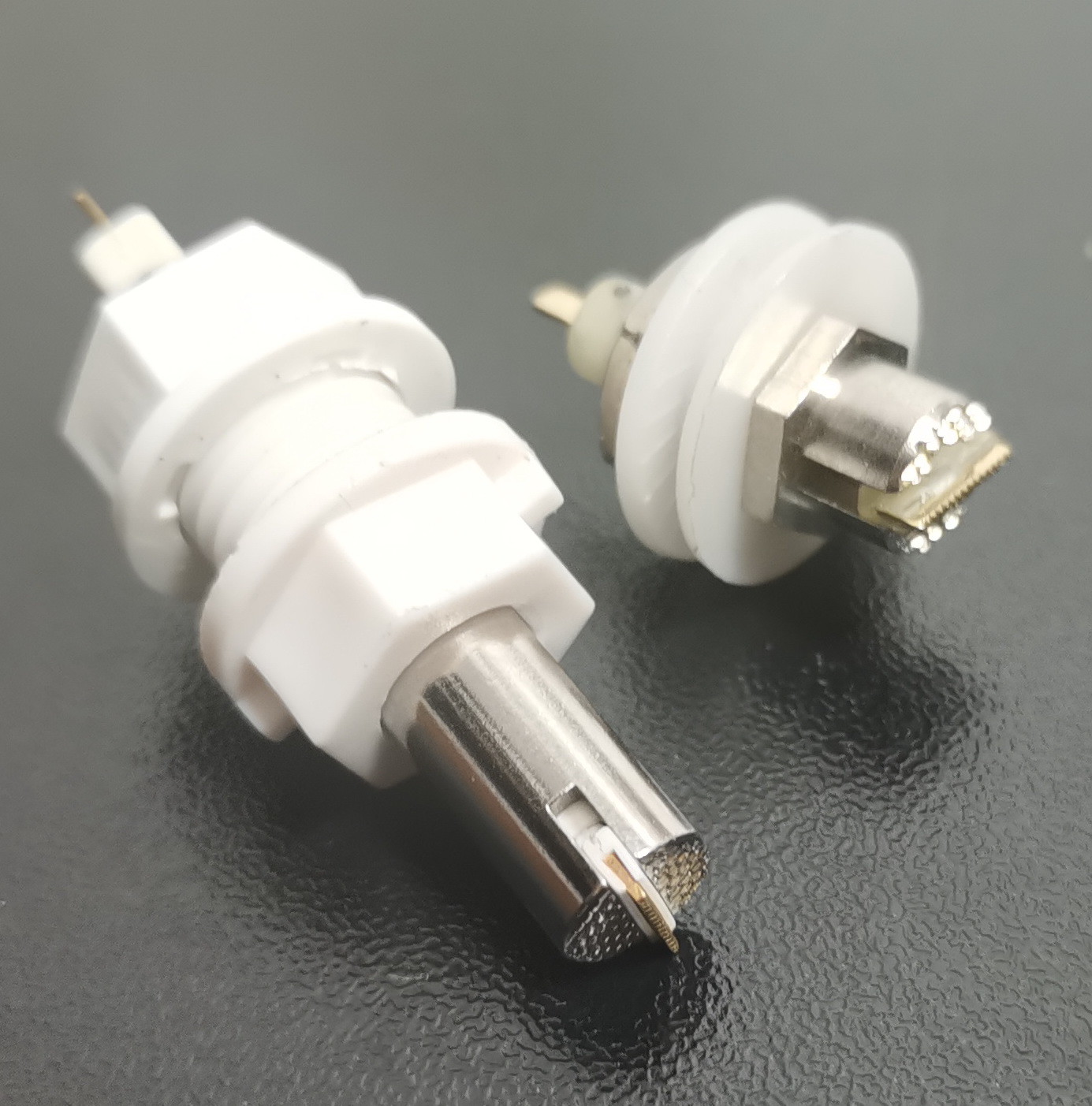

Clamp form: quick clamp, clamp (pointed head, flat head, two pieces) optional, equipped with battery tray
Fixture spacing: 35mm
Support battery specifications: 18650, 21700, 26650, 32650
Working power supply: three-phase five-wire system AC380V±10%, 50HZ
Working power consumption: ≤9KW
Working environment: temperature 0 ~ 40 ℃, relative humidity ≤ 80%
Cooling method: natural air intake, upward exhaust


Channel parameters
Voltage measurement range: 0 ~ 5V
Battery voltage range: charging 0~4.5V; discharging 4.5~2V
Constant voltage voltage range: 2.5 ~ 4.5V
Voltage accuracy: ±(1‰ reading+1‰ full scale)
Voltage Resolution: 1mV
Voltage stability: ≤1‰
Current range: charging 20mA~2A; discharging 20mA~2A
Current accuracy: ±(1‰ reading+1‰ full scale)
Current resolution: 1mA
Current stability: ≤1‰
