8 Channels Lithium Ion Battery Testing Equipment 4.2mm Wire Polypropylene Material

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-BC-8C
Minimum Order Quantity 1 Piece
Price USD110-139/Piece
Packaging Details Wooden packing
Delivery Time 14
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-BC-8C Number Of Channels 8
Max Wire Diam 4.2 Mm Holder Material Polypropylene
Dimensions 230 Mm L X 80 Mm W X 32 Mm H Weight 1.5Kg
High Light

8 Channels Coin Cell Testing Board


BST8 Series Battery Analyzers


Coin Cell Testing Board

Leave a Message
Product Description

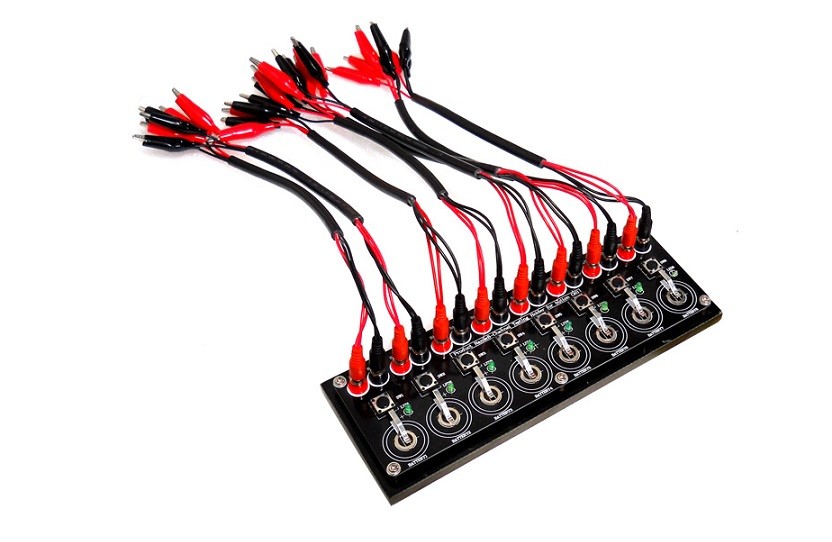

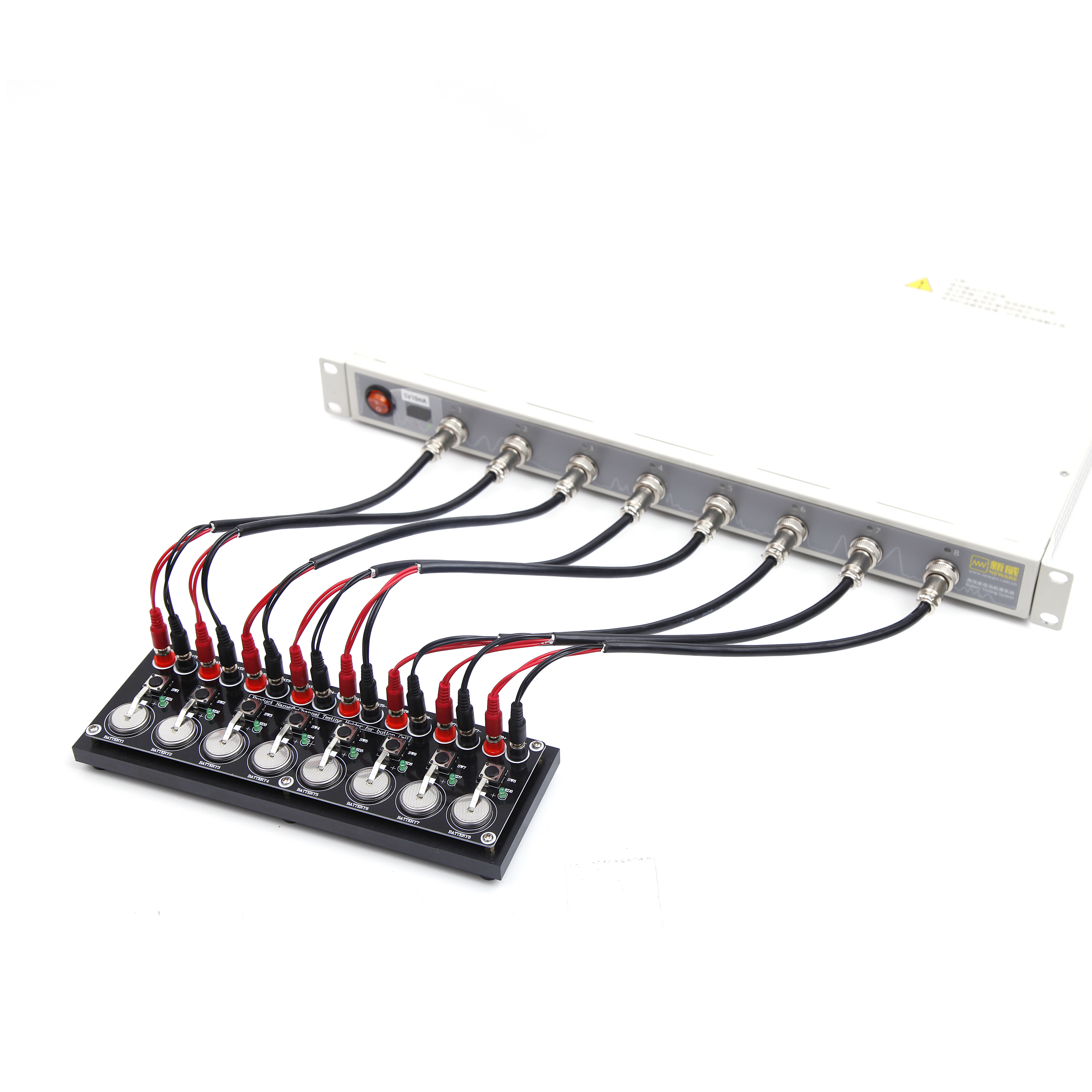

8 Channels Coin Cell Testing Board With Cable And Optional Connector For BST8 Series Button Coin Cell Battery Analyzer


· 8 cables with optional connectors are included in the standard package for immediate useT

o The connectors to the board are the banana plug for easy insertion and removal. The Banana Plug of the cable are 4mm banana plug, Max wire diam.4.2 mm

o Another end or of connector testing system are optional connectors

§ 4 alligator clamps (Two small for voltage and two big for current) compatible with other vendor's testing system

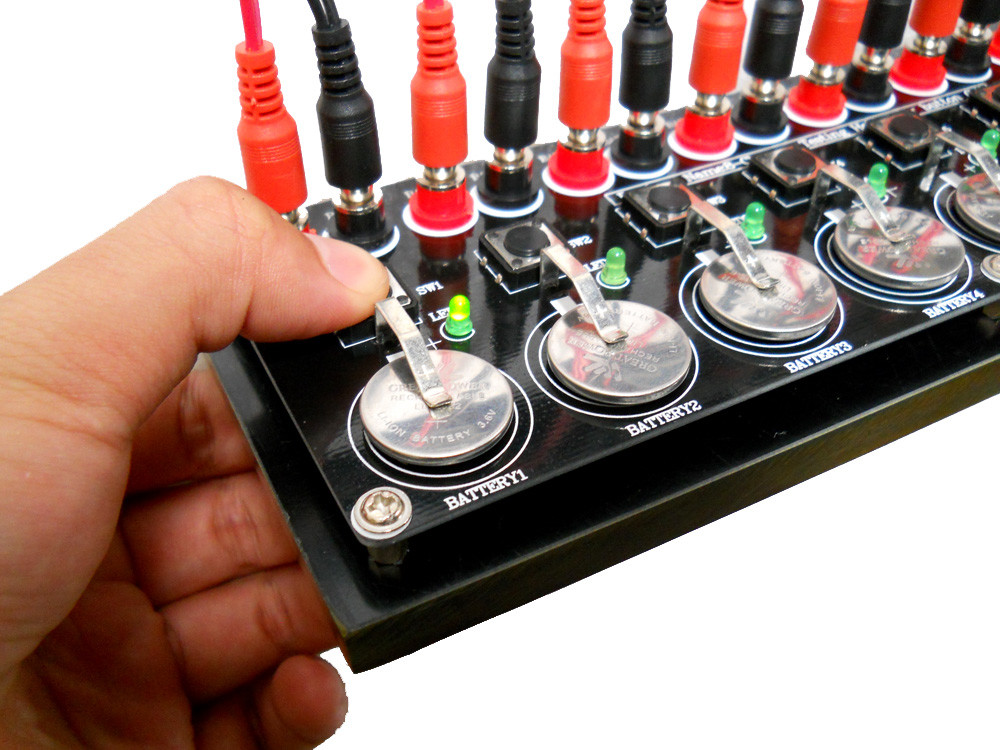

· Built-in battery polarity check light will be on when right place the coin cell and press down the check button

· Can test coin cell with diam. up to 25mm and compatible with most of the popular coin cell size, like CR2016, CR2032, CR2325, and CR2450

· 8 channels work independently

· Easy battery insertion and removal

· Holder Material: Polypropylene

· Dimension: 230 mm L x 80 mm W x 32 mm H
