50V 60A Comprehensive battery tester equipment CE ISO certificate
| Place of Origin | China |
|---|---|
| Brand Name | ZHIK |
| Certification | CE IOS |
| Model Number | ZK-BTS50 |
| Minimum Order Quantity | 1 Set |
| Price | USD3000-4000/Set |
| Packaging Details | Wooden packing |
| Delivery Time | 14 |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15set/month |
Product Details
| Power | 3KW | Input Power | AC 220V ±10% / 50Hz |
|---|---|---|---|
| Open Circuit Voltage | 50V | Charging Current | 0-5A |
| Discharge Current | 60A | Internal Impedance | 0-1000mΩ |
| High Light | 60A Battery Tester Equipment,50V Battery Tester Equipment |
||
Product Description

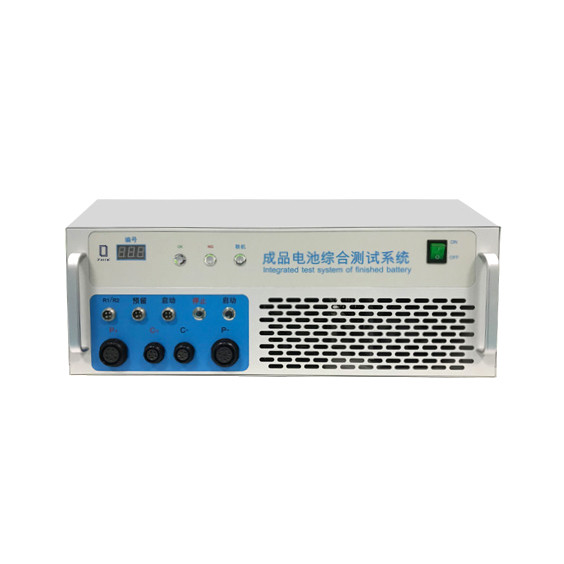

50V60A finished battery comprehensive tester
1. Introduction to the scope of application and functions of the equipment
1.1 Scope of application: ZK-BTS50 lithium battery comprehensive test equipment is a device that can quickly and accurately test the performance of finished batteries. The system uses 32-bit ARM processor, and the voltage and current use 16-bit AD converter. High test accuracy and support for simultaneous operation of multiple devices. Widely used in automotive electronics, aerospace, shipbuilding, solar energy storage, electric bicycles, electric motorcycles, backup power batteries, communication power supply and other power battery pack production and scientific research experimental testing
1.2 Test items: open circuit voltage, AC internal resistance, discharge test, discharge overcurrent test, short circuit protection test, charging test, charging protection test, etc.
Main performance of test equipment
2.1 Open circuit voltage: test the voltage across the positive and negative terminals of the battery open circuit.
2.2 AC internal resistance: test the resistance at both ends of the battery discharge circuit.
2.3 Discharge test: Test the continuous load capacity of the battery, and let the battery continue to discharge for a certain period of time to check the voltage drop.
2.4 Discharge overcurrent test: Test the battery high current discharge protection function, the battery high current discharge triggers the discharge overcurrent protection function of the battery protection board.
2.5 Charging test: test the continuous charging function of the battery, and test whether the charging function of the battery is good.
2.6 Charging overcurrent test: test the battery high current charging protection function, the battery high current charging triggers the charging current protection function of the battery protection board.
2.7 Resistor R1/R2: Test the resistance of specific functions of the battery, such as NTC, ID, etc.
Equipment advantage
3.1: Programmable control of test items
3.2: Battery pack high current charging protection test
3.3: The device supports charging to activate the battery function
3.4: Consistency assessment test of battery pack
3.5: Internal resistance test of the whole battery pack
3.6: Battery pack load test
3.7: Battery pack high current protection test
3.8: Battery pack authenticity short-circuit protection test
