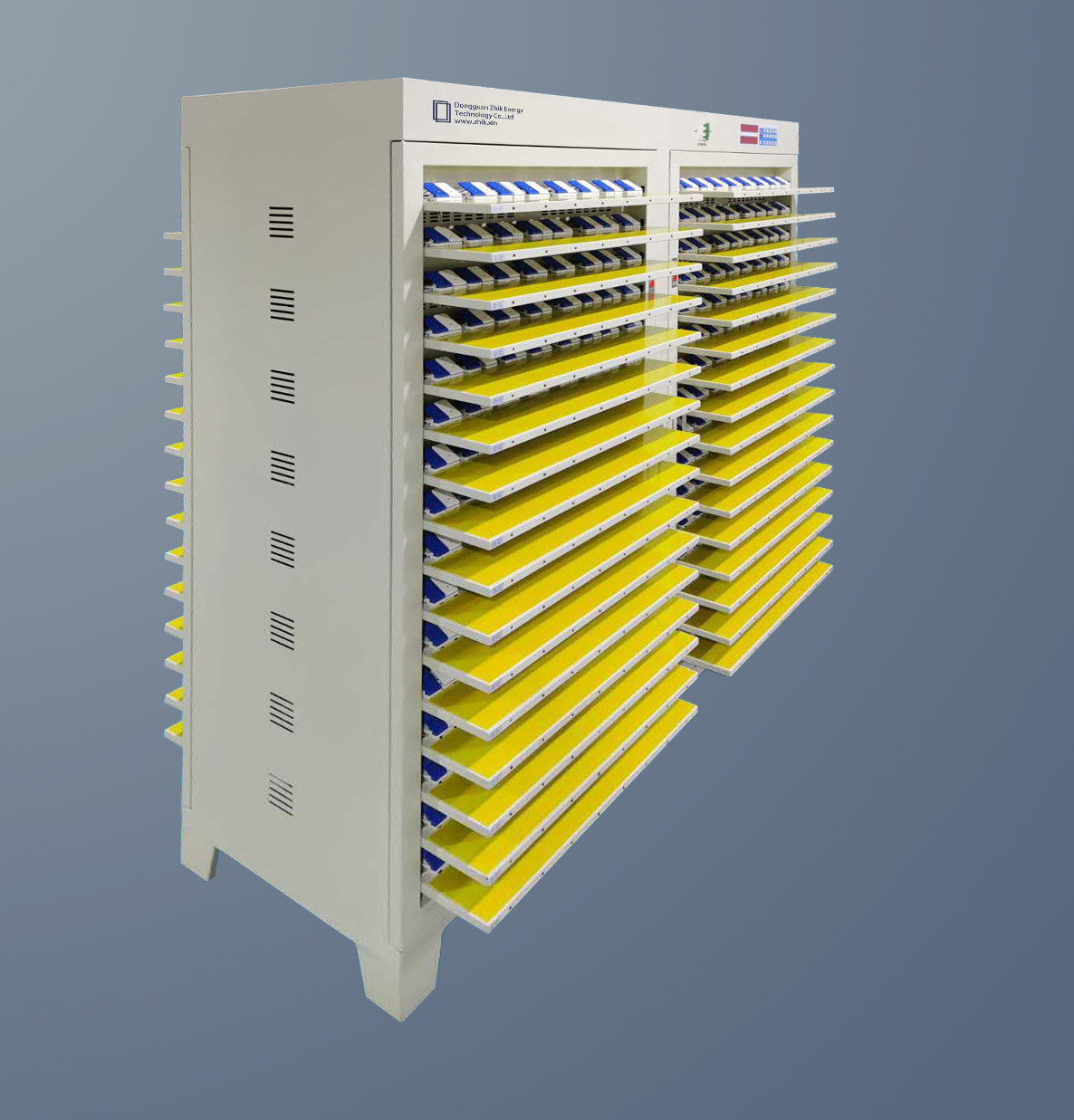

512 Channel Lithium Ion Battery Testing Equipment For Charging Discharging 8400W 380V

  • 512 Channel Lithium Ion Battery Testing Equipment For Charging Discharging 8400W 380V
  • 512 Channel Lithium Ion Battery Testing Equipment For Charging Discharging 8400W 380V
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-BTS512P
Minimum Order Quantity 1 Set
Price USD5000-8000/Set
Packaging Details Wooden packing
Delivery Time 14
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Power 8400W Input Power AC380V ±10%/50Hz
Number Of Main Channels Per Unit 512 Charging Voltage Range 4.3V (Remarks: If The Customer Needs Charging Measurement Range 0 ~ 5V, It Needs To Be Customized)
Discharge Voltage Range 5V Output Range 2000mA
High Light

512 Channel Battery Tester

,

Battery Charging And Discharging Equipment

,

5V2A Lithium Battery Testing Equipment
Leave a Message
Product Description

512 Channel Battery Tester For Battery Charging And Discharging



Features:



Supporting Software Functions:

A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors;

B) Battery capacity indication of any section (up to 100 sections);

C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is ≤ 4 Second;

D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);

E) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data;

F) Set operator authority and operate in different levels;

Display charge discharge curve and cycle chart;





Indicator items
index parameter
Input power
AC220V ±10%/50Hz
Input active power
8300W
Voltage
Charging voltage range
0V ~ 4.3V (Remarks: If the customer needs charging measurement range 0 ~ 5V, it needs to be customized)
Discharge voltage range
2.5V~5V
Accuracy
±(0.1% of reading + 0.1% of range)
Electric current
Output range
±2000mA
Accuracy
±(0.1% of reading + 0.1% of range)
Constant voltage cut-off current
15mA minimum
time
Inspection time
Real time＜2s
Timing range
0 ~ 9999 minutes
Data logging interval
Time ≥20s
Charge
Charging mode
Constant current charging, nickel metal hydride charging, lithium battery charging
Cut-off condition
Voltage, time, cut-off current, -ΔV
Discharge
Discharge mode
Constant current discharge
Cut-off condition
Voltage, time
cycle
Cycle range
1 ~ 999 times
Loop nesting
With nested loop function, maximum support 3 levels of nesting
Single cycle working steps
254
protection
Software protection
Power-down data protection
Safety protection conditions can be set, and overvoltage protection, undervoltage protection, and protection voltage can be set
Number of main channels per unit
512
Chassis size
W*D*H1680*800*1840(mm)

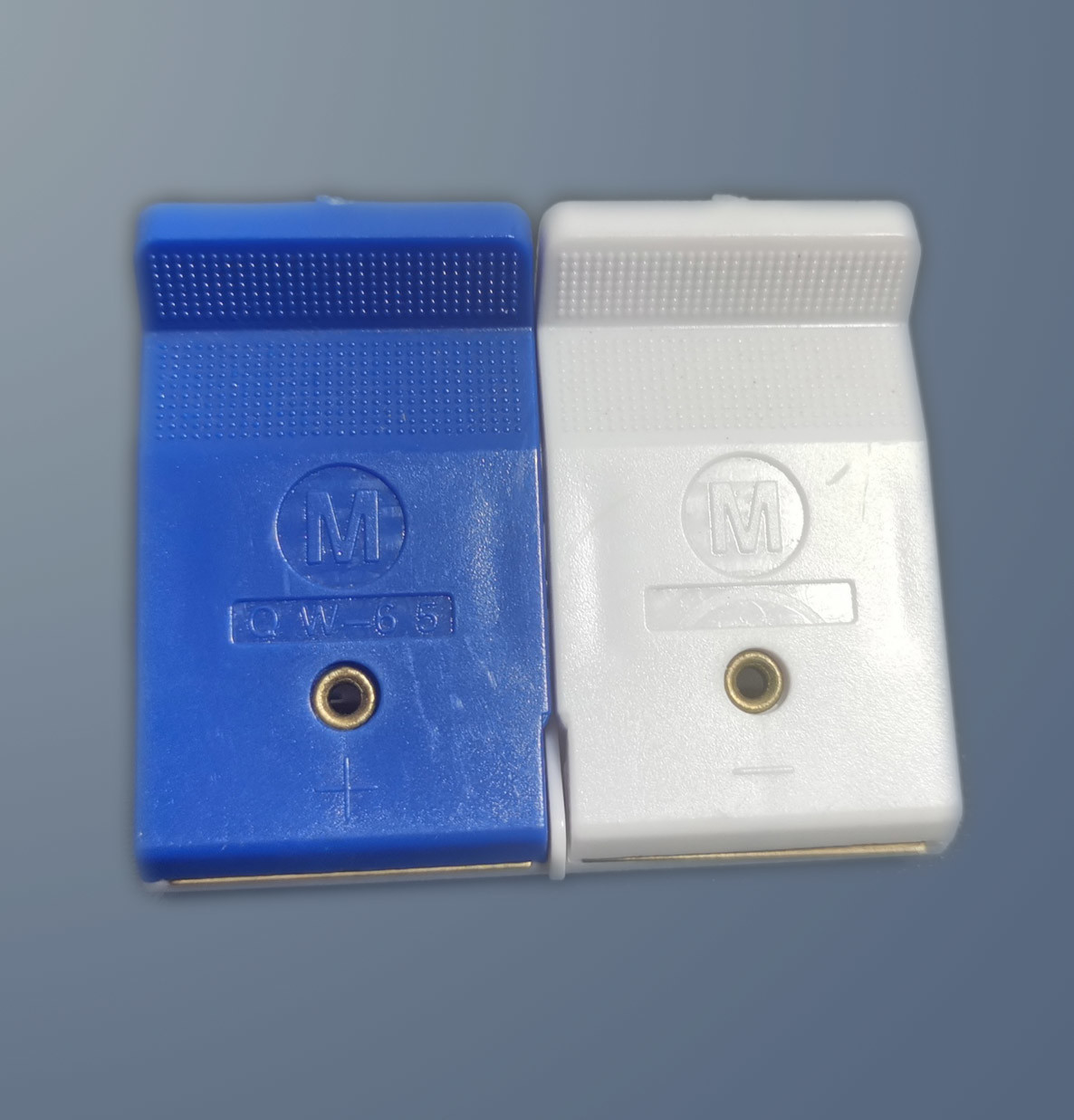

Fixture type
Probe fixture, polymer fixture
