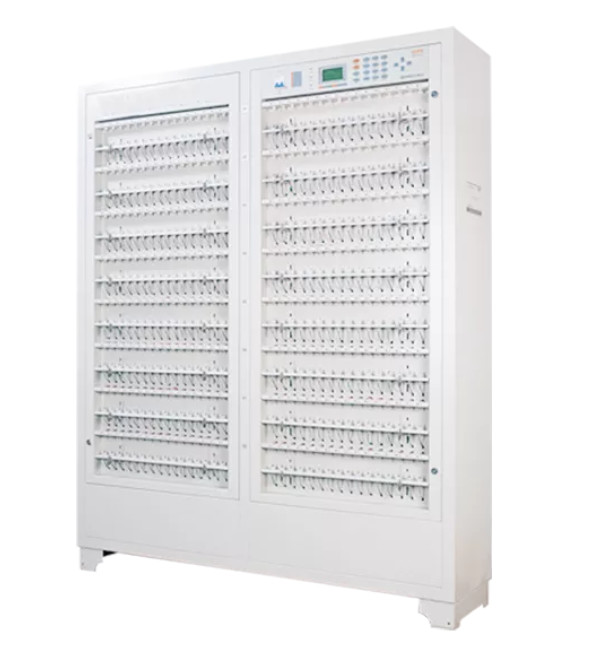

5V 2A Lithium Ion Battery Testing Equipment 512 Channel 8300W

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-BTS512
Minimum Order Quantity 1 Set
Price USD5000-8000/Set
Packaging Details Wooden packing
Delivery Time 14
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Power 8300W Input Power AC220V ±10%/50Hz
Number Of Main Channels Per Unit 512 Charging Voltage Range 0V ~ 4.3V (Remarks: If The Customer Needs Charging Measurement Range 0 ~ 5V, It Needs To Be Customized)
Discharge Voltage Range 2.5V~5V Output Range ±3000mA
High Light

5V2A Lithium Battery Testing Equipment


512 Channel Battery Testing Equipment


battery capacity tester

Leave a Message
Product Description

5V 2A 512 Channel Li-Ion Battery Charging And Discharging Testing Equipment



1. Each device can carry out constant current and constant voltage charging and constant current discharge test on 512 batteries meeting the voltage range.


2. Adopt the constant current constant voltage power supply of the invention patent, constant current to constant voltage switching without impact, especially suitable for the charging requirements of lithium-ion battery.


3. The AVR single-chip computer is used as the control center of the equipment, and the peripheral sampling circuit is used. The equipment can be controlled by the superior computer. When the computer is connected, the complete charge discharge curve of all channels can be saved, or it can be separated from the superior computer. Through the operation of the control panel, the constant current and voltage charging, constant current discharge test, time sorting and other work can be completed.


4. Each battery has an independent constant current and voltage source, and the self-made circuit does not affect each other.


5. Detect the voltage of each battery in real time. When charging, charge at constant current first. When the battery voltage reaches the set value, it will smoothly switch to constant voltage charging. When the set time or current termination conditions are met, the charging will end. During constant current discharge, when the battery voltage is lower than the set value, the discharge is ended and the corresponding battery indicator light is on.


6. It has the function of power-off protection, and can continue to operate after receiving the original workflow


7. The power tube is 50N06, which is suitable for batteries requiring low discharge voltage, such as lithium iron phosphate battery


8. The upper computer can set 32 working step parameters and 256 cycles, and each upper computer can be connected with 1-10 sets of single-chip system (less than 10 sets are recommended).




Indicator items
index parameter
Input power
AC220V ±10%/50Hz
Input active power
Charging voltage range
0V ~ 4.3V (Remarks: If the customer needs charging measurement range 0 ~ 5V, it needs to be customized)
Discharge voltage range
±(0.1% of reading + 0.1% of range)
Electric current
Output range
±(0.1% of reading + 0.1% of range)
Constant voltage cut-off current
15mA minimum
Inspection time
Real time<2s
Timing range
0 ~ 9999 minutes
Data logging interval
Time ≥20s
Charging mode
Constant current charging, nickel metal hydride charging, lithium battery charging
Cut-off condition
Voltage, time, cut-off current, -ΔV
Discharge mode
Constant current discharge
Cut-off condition
Voltage, time
Cycle range
1 ~ 999 times
Loop nesting
With nested loop function, maximum support 3 levels of nesting
Single cycle working steps
Software protection
Power-down data protection
Safety protection conditions can be set, and overvoltage protection, undervoltage protection, and protection voltage can be set
Number of main channels per unit
Chassis size
Fixture type
Probe fixture, polymer fixture
