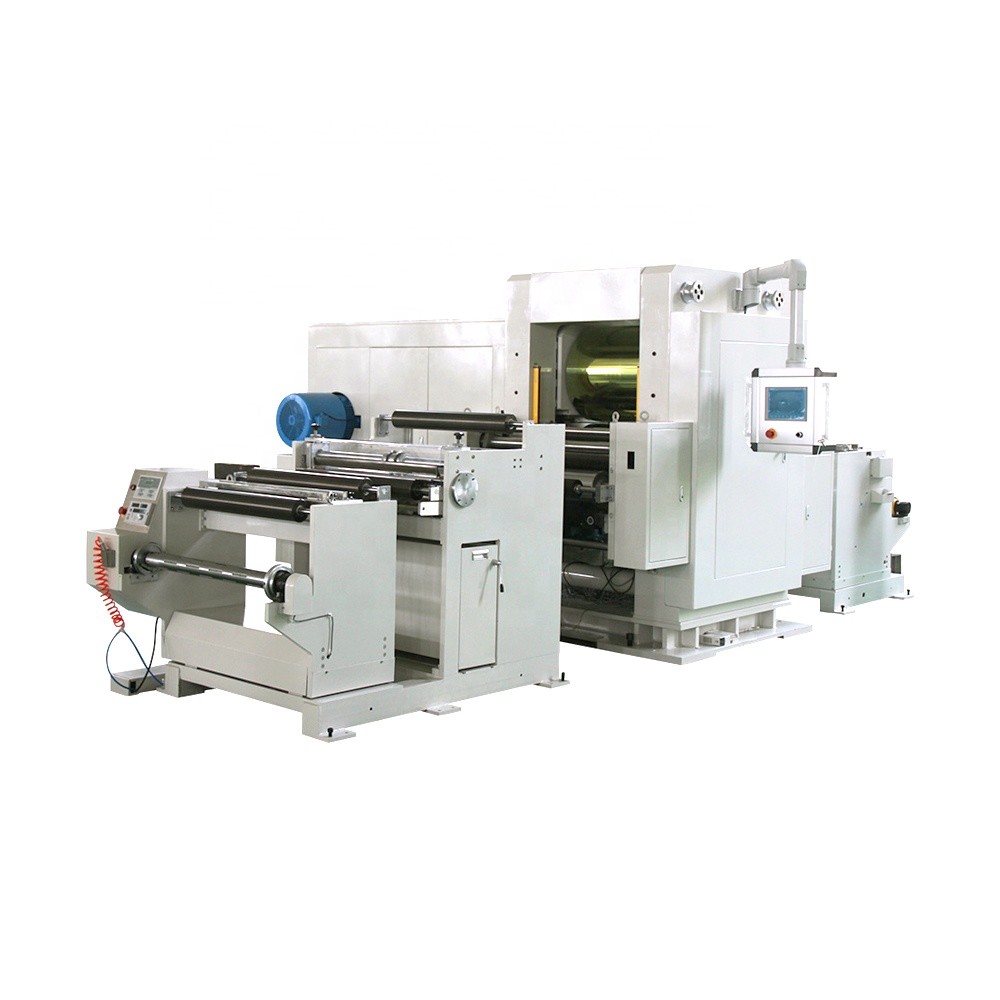

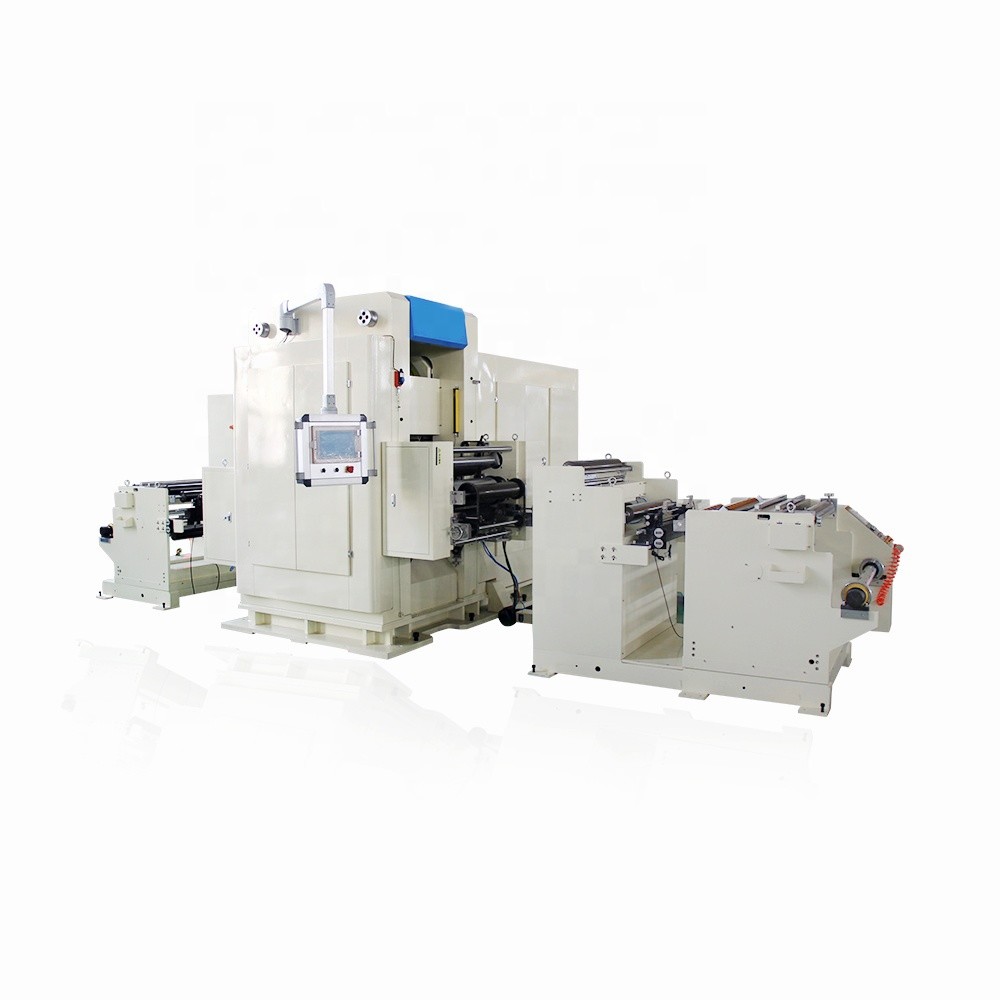

Lithium Battery Electrode Roll To Roll Heat Press Machine With PLC Control

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-RPC300
Minimum Order Quantity 1 Piece
Price USD35000-45000/Piece
Packaging Details Wooden packing
Delivery Time 14
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-RPC300 Roll Specifications Diameter 300 * 350mm
Maximum Feed Width 300mm Rolling Speed 0.5-6m / Min
Rolling Accuracy ± 0.002mm System Working Pressure 25Mpa
High Light

Battery Rolling Press


Continuous Roller Press


Roll To Roll Roll Press

Leave a Message
Product Description
  • Lithium Battery Electrode Roll-To-Roll Roll Press With PLC Control
  • Roll to Roll Roll Press
ZK-RPC300 roll-to-roll roll press, using a booster pump to pressurize, the maximum pressure can reach 25Mpa, with tension control system and deviation correction system, the roll gap can be adjusted through PCL touch screen


Roll specifications
diameter 300 * 350mm
Maximum feed width
Rolling speed
0.5-6m / min
Rolling accuracy
± 0.002mm
System working pressure
Tension adjustment range
Rolling gap adjustment range
Correction accuracy
± 0.4mm
Equipment size
2100 * 1000 * 1800
Equipment weight
