Laboratory Lithium Battery Calendering Machine 200 Degrees 200mm roll width

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-RP200H
Minimum Order Quantity 1 Piece
Price USD3000-4200/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-RP200H Effective Roll Width 200mm
Rolling Gap 0-1.2mm Adjustable Rolling Speed 0 ~ 26mm / S Adjustable
Heating Temperature Up To 200 ℃ Equipment Size 620L * 280W * 370Hmm
High Light

Lithium Battery Electrode Calender


Battery Roller Press


Laboratory Heatable Electrode Rolling Machine

Leave a Message
Product Description

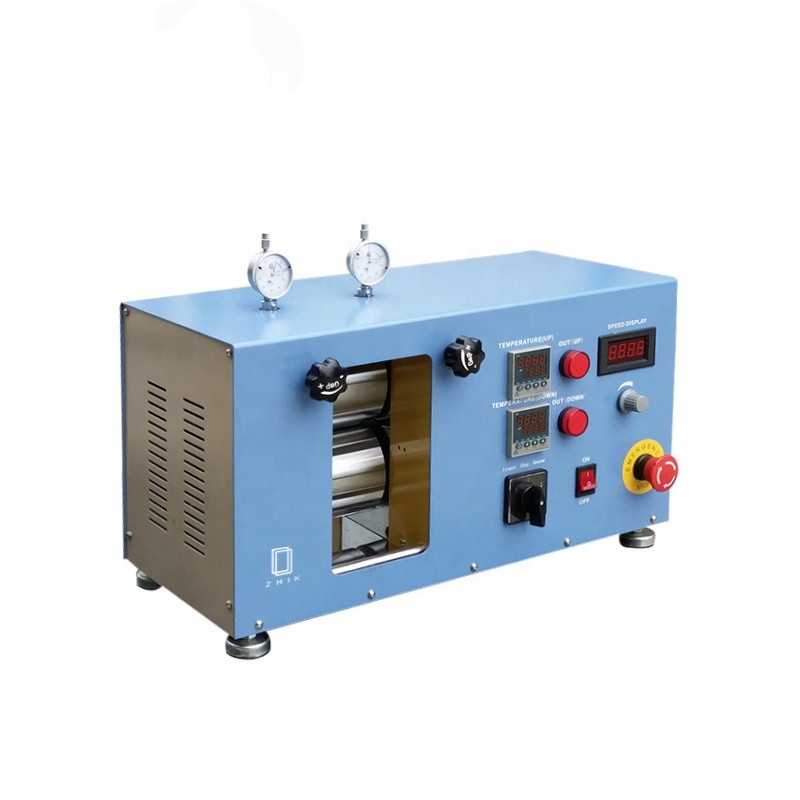

  • Laboratory Lithium Battery Electrode Calender Can Be Heated To 200 Degrees Celsius

  • Heatable roller press ZK-RP200H


ZK-RP200H is a desktop heatable roller press. The temperature of the two rollers is controlled by two independent temperature control systems. The maximum heating temperature can reach 200 ℃. It can be used to make flexible battery electrodes, separators, electrolytes of solid batteries, etc.



Effective roll width
Roll material
high-strength hard steel, chrome-plated surface RC> 52
Rolling gap
0-1.2mm adjustable
Rolling speed
0 ~ 26mm / s adjustable
Heating temperature
up to 200 ℃
Heating rate
1.3 ℃ / min
Heating power
Temperature control accuracy
± 5 ℃
Power supply
AC208-240V 50 / 60HZ
Equipment power
Equipment size
620L * 280W * 370Hmm
Equipment weight
