Laboratory Small Battery Rolling Machine Press 200mm roll width 1.2mm Rolling gap

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-RP200L
Minimum Order Quantity 1 Piece
Price USD1000-5000/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-RP200L Effective Roll Width 200mm
Rolling Gap 0-1.2mm Adjustable Rolling Speed 0 ~ 26mm / S Adjustable
Weight 100kg Power Supply AC110V/220V 50 / 60HZ
High Light

Lithium Battery Roll Machine


Battery Roller Press


Laboratory Heatable Electrode Rolling Machine

Leave a Message
Product Description
  • Battery Laboratory Equipment/Lithium Ion Battery Small Electric Rolling Press Machine

  • Heatable roller press ZK-RP200L

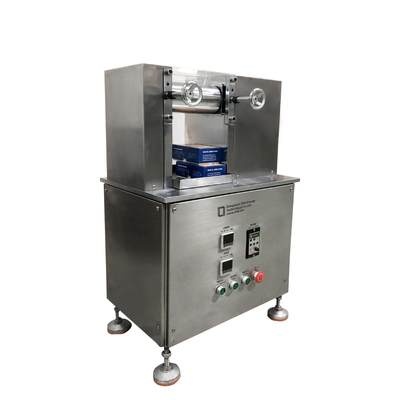

1 ZK-RP200L Lab Roll Press Machine is a compact precision Hot Roll Press Machine . It has dual rollers of 100mm dia. x 200mm
width and dual grade micrometer. This lab roll press machine is an ideal Hot rolling press for adjusting thickness and increasing
active material density of the electrode in Li-Ion batteries research after coating and drying.
2 This model Electric Calender is mainly used for small electrodes in the rolling process, suitable for use by universities and
enterprises experiment line, make the battery electrode compression molding, increased density.
3 It has a pair of 200mm width steel rollers. Such a roller can be heated up to 80℃.



Effective roll width
Roll material
high-strength hard steel, chrome-plated surface RC> 62
Rolling gap
0-1.2mm adjustable
Rolling speed
0 ~ 26mm / s adjustable
Heating temperature
up to 80 ℃
Heating rate
1.3 ℃ / min
Temperature control accuracy
± 5 ℃
Power supply
AC110V/220V 50 / 60HZ
Equipment weight
