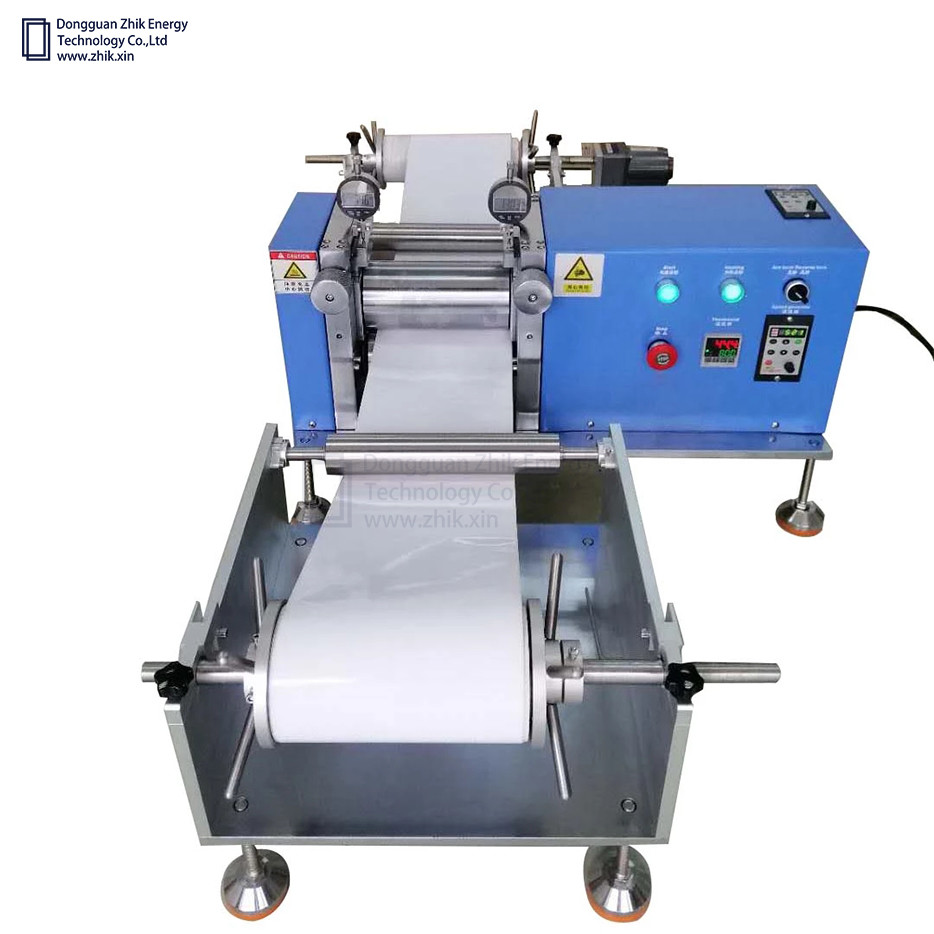

Lithium Battery Rolling Machine 200mm roll width AC110V 220V

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-RP200C
Minimum Order Quantity 1 Piece
Price USD2000-4000/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-RP200C Effective Roll Width 200mm
Rolling Gap 0-1.2mm Adjustable Rolling Speed 0 ~ 26mm / S Adjustable
Weight 150kg Power Supply AC110V/220V 50 / 60HZ
High Light

Lithium Battery Roll Machine


Coil To Coil Continuous Rolling Mill


Laboratory Heatable Electrode Rolling Machine

Leave a Message
Product Description

Lithium battery electrode rolling mill / coil to coil continuous rolling mill


All rolls are made of high-strength and high-hardness rolls, with the hardness reaching HRC62-63. The roller material is 9Cr2Mo which is high-hardness and high-performance. After heat treatment, the material is frozen. The surface quenching layer is deep and the performance is stable.


Effective roll width
Roll material
high-strength hard steel, chrome-plated surface RC> 62
Rolling gap
0-1.2mm adjustable
Rolling speed
0 ~ 26mm / s adjustable
Heating temperature
up to 130℃
Heating rate
1.3 ℃ / min
Temperature control accuracy
± 5 ℃
Power supply
AC110V/220V 50 / 60HZ
Equipment weight
