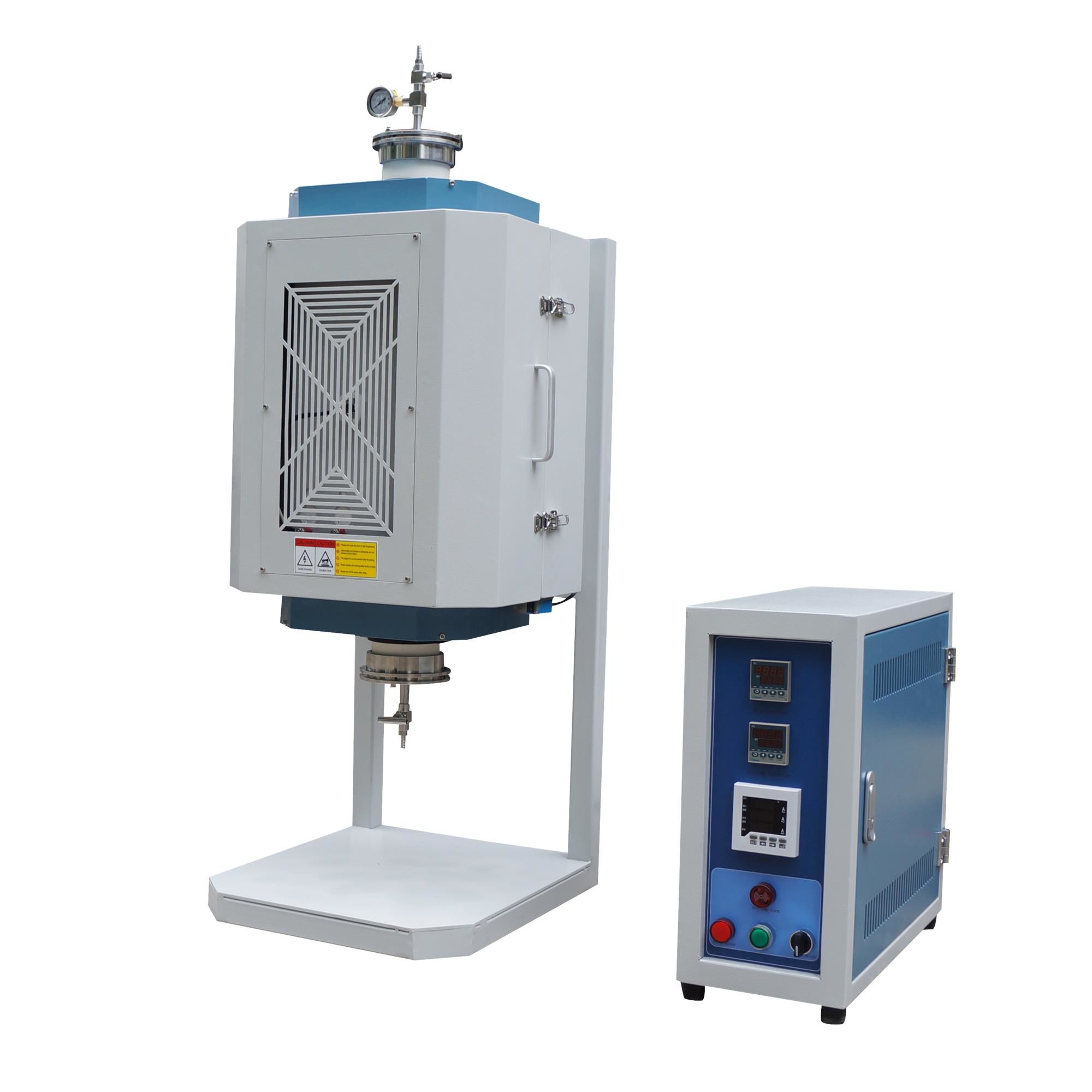

80L Vertical Tube Furnace 1200 Degrees 220V 4KW CE Certificate

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZKGL-80-12
Minimum Order Quantity 1 Piece
Price USD550-1000/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZKGL-80-12 Power 4KW
Voltage 220V Control Precision +/- 1 ℃
Rated Temperature 1200 ℃ Dimensions O.D80*1000 Length 300mm
High Light

80L Vertical Tube Furnace


1200 degree vertical tube furnace


1200C Tube Furnace

Leave a Message
Product Description
  • 1200 degree vertical tube furnace


    Features of vertical tube furnace


    1. Furnace material is high-purity alumina ceramic fiber materials, new assembly structure, no transformation in long term high temperature, sturdy and durable

    2. Vertical or horizontal operation freely adjustable; working height freely adjustable,
    3. Operation also possible separate from stand if safety guidelines are observed

    4. Control system integrated in furnace base
    5. Defined application within the constraints of the operating instructions
    6. The heating element is made of high-quality alloy wire, which can bear large load, stable and long service life
    7. The furnace tube adopts quartz tube as carrier and the stainless steel flanges on its both ends are simple design, reasonable, easy to disassemble and convenient for entering and leaving sintered samples


    Specification of vertical tube furnace

    Model No.
    Aluminum tube size (mm)
    Chamber size (mm)
    O.D.80*1000 Length 300mm

     Power supply

    Max. temperature
    1200 ℃
    Continuous temp.
    Heating rate
    ≤ 25℃/min ( suggest 15℃/min for longer life using of furnace )
    One pair of high temperature furnace gloves;
    One piece of furnace hook
    One set of Stainless Steel Vacuum Sealing Flange Kit
    Optional devices
    Paperless recorder
    Quartz Boat
    Vacuum Pump
