1500C Laboratory Tube Furnace Five Temperature Zones CE certificate

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-TL1500V
Minimum Order Quantity 1 Piece
Price USD17800-20000/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-TL1500V Power 25KW
Voltage 380V Control Precision +/- 1 ℃
Rated Temperature 1450 ℃ Dimensions 2200*60*80mm(L*W*H)
High Light

1500C Tube Furnace


Five temperature zones Tube Furnace


Lithium battery materials Tube Furnace

Leave a Message
Product Description

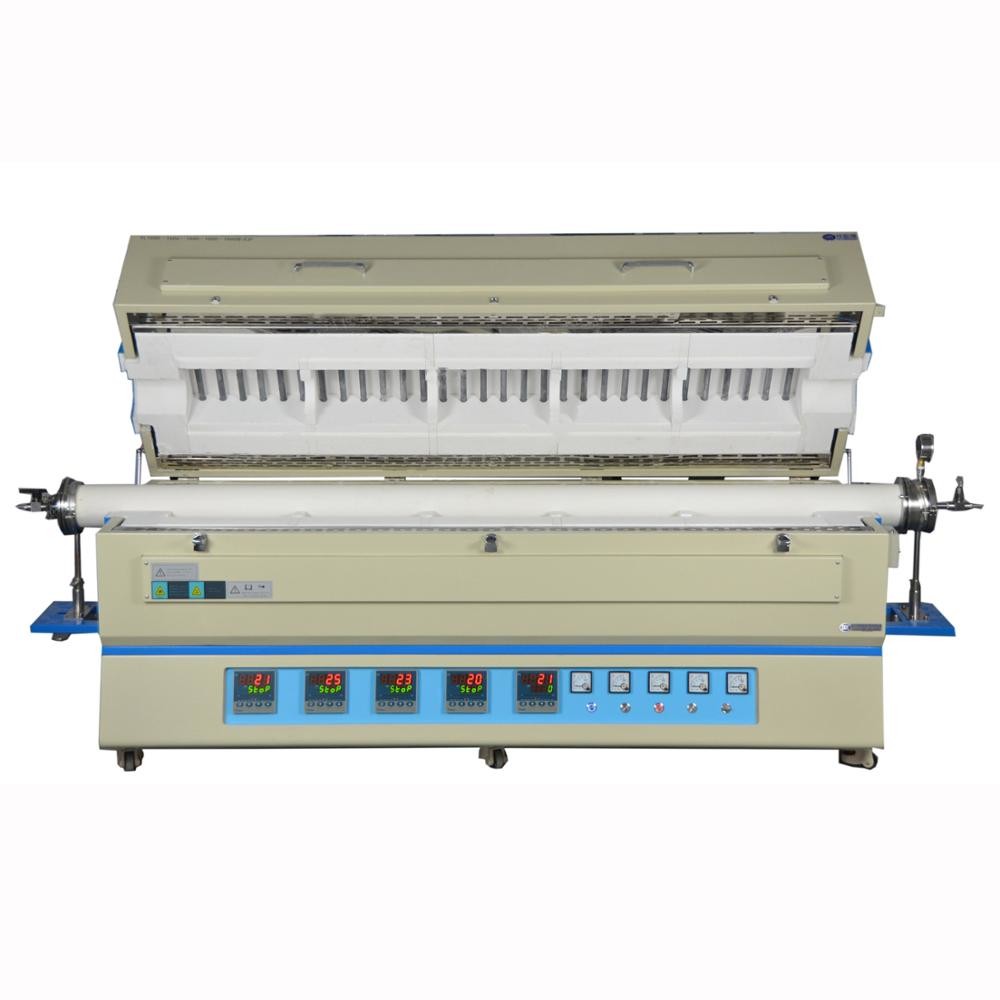

Laboratory Five temperature zones 1500C Tube Furnace for calcination Lithium battery positive and negative materials


Laboratory Five temperature zones 1500C Tube Furnace


ZK-TL1500V is a CE-certified five-temperature zone super-long open tube furnace. Each temperature zone is individually controlled by an independent temperature control system. By adjusting the temperature of each temperature zone, five heating zones can be formed. The temperature gradient may form a long constant temperature zone, a 1500mm long constant temperature zone, and a maximum temperature of 1200oC. The furnace can also be used with different diameters of dia1 "~ 4" x1400mm long furnace tubes. There are 5 independent control units The 50-segment program temperature controller can control the furnace at a distance and can work in a variety of atmospheres. This tube furnace is 2.5 meters long and can be used to make carbon nanotubes.




Swedish Kanthal A1 resistance wire

(1), the surface temperature can reach 1420 ℃

(2) The surface is stainless steel (very bright, pay attention when customers identify it), will not rust, and will not drop slag even if it is used for a long time.

(3) , Kanthal resistance wire data download

(4) Kanthal resistance wire website: www.kanthal.com

(5), resistance balance, temperature field balance is good





Can connect with computer

The furnace is equipped with a communication interface and software, which can directly control various parameters of the furnace through a computer, and can observe the PV and SV temperature values on the furnace and the operation of the instrument from the computer. The actual heating curve of the furnace will be drawn by the computer in real time And can save the temperature data at each moment, you can call up at any time


Hearth hall

1. High-quality high-purity alumina polycrystalline fiber curing furnace formed by vacuum suction filtration.

2. Molded by Japanese technology.

3.The spacing and pitch of the resistance wires in the furnace are all arranged according to the best thermal technology in Japan, and the temperature field is simulated by thermal software

4. Adopting 4 weeks heating, the temperature field is more balanced
