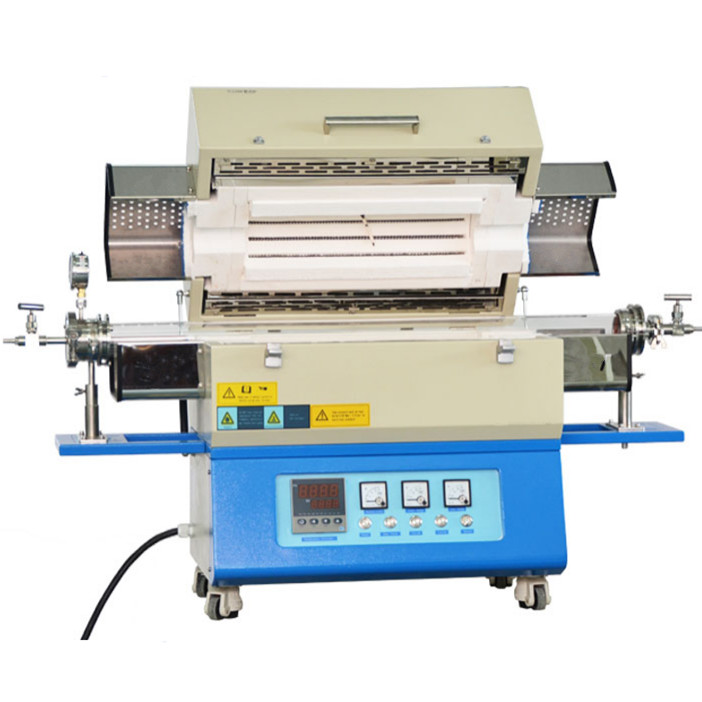

1700C Single Zone Laboratory Tube Furnace 5KW With Software Control System

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-TL1700
Minimum Order Quantity 1 Piece
Price USD2100-4900/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-TL1700 Power 5KW
Voltage 380V Control Precision +/- 1 ℃
Rated Temperature 1650 ℃ Dimensions 1120X490X855(L*W*H)
High Light

1700C Laboratory Tube Furnace


High Temperature Tube Furnace


Tube Furnace for Lithium battery materials

Leave a Message
Product Description
  • High Temperature 1700C  Single Zone Tube Furnace With Software Control System




his tube furnace uses 1800 type silicon molybdenum rod as heating element, adopts double-layer shell structure and 50-stage program temperature control system, phase shift trigger, thyristor control, furnace with alumina polycrystalline fiber material, double There is an air-cooling system between the furnace shells, which can quickly raise and lower the temperature. The ends of the corundum tubes are sealed with stainless steel flanges. The flow rate is controlled by a flow meter. The furnace has a warm field balance, low surface temperature, fast temperature rise and fall, and energy saving. The advantages are the ideal products for high-temperature atmosphere sintering, atmosphere reduction, CVD experiment and vacuum annealing in universities, research institutes and industrial and mining enterprises.




Model 1700-I 1700-II 1700-III
Power 5KW 5KW 6kw
Tube size(OD)(mm)

High purity corundum tube :60/80/100*1000mm(tube diameter optional)

Two furnace plugs are placed on each side, the plug can block the heat radiation in the center of the tube, and must be placed in the correct position of the furnace before heating



1120X490X855 1120X490X855 1120X520X945
Supply voltage 220V
Phase single phase
Heating element · 1800 type MoSi2 heating element

Temperature control type


UAV program temperature control instrument (standard)

1, 30-stage program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit is automatically cut off when the temperature is over-temperature or broken, (when the electric furnace temperature exceeds 1720 degrees or the thermocouple is blown, the AC relay on the main circuit will be automatically disconnected, the main circuit is broken. On, the ON light on the panel is off, the OFF light is on, and the limited protection electric furnace).

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is turned on after the power is turned off, the program does not start from the starting temperature, but the furnace temperature rises from the time of power failure.

5, the meter has the function of temperature self-tuning

1700C Single Zone Laboratory Tube Furnace 5KW With Software Control System 0

Chamber material

1. Furnace material, using high quality alumina polycrystalline fiber

2. The surface of the inner furnace is coated with imported 1800 degree high temperature alumina coating, which can increase the emissivity and make the temperature field more balanced.

Valve and flange
Control precision +/- 1 ℃
Trigger · Phase-shifted trigger
Electric appliance Zhejiang chint
Silicon controlled · 106/16E SEMIKRON
Maximum temperature 1700 ℃
Rated temperature 1650 ℃
Heating rate ≤20 ℃/ Min (it can be modified as required)
Recommended rate of temperature rise ≤10 ℃/ Min
Thermocouple Type B Type
Heating length 300mm
Temperature curve
Peripheral surface temperature ≤45℃
