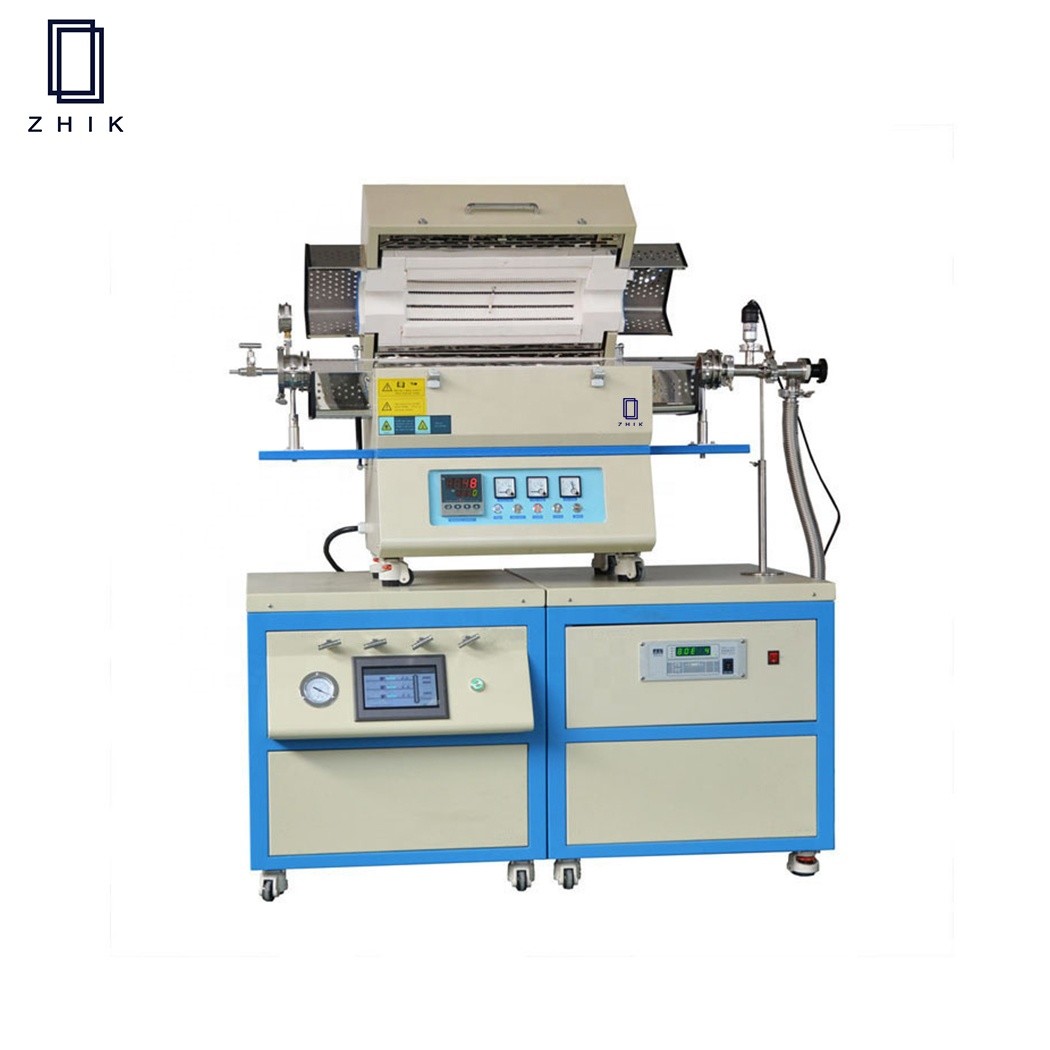

PECVD Laboratory Tube Furnace Vertical Sliding Rotary 1350 Degree
| Place of Origin | China |
|---|---|
| Brand Name | ZHIK |
| Certification | CE IOS |
| Model Number | ZK-CVD1400 |
| Minimum Order Quantity | 1 Piece |
| Price | USD4000-6000/Piece |
| Packaging Details | Wooden packing |
| Delivery Time | 24 |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 15set/month |
Product Details
| Model | ZK-CVD1400 | Power | 5KW |
|---|---|---|---|
| Voltage | 220/380V | Control Precision | +/- 1 ℃ |
| Rated Temperature | 1350 ℃ | Dimensions | 610*490*800mm(L*W*H) |
| High Light | Laboratory Tube Furnace,High Temperature tube furnace,Vertical Sliding Rotary Tube Furnace |
||
Product Description
High Temperature CVD 1200C 1400C 1600C 1700C 1800C Vertical Sliding Rotary PECVD Tube Furnace
The CVD system consists of a gas supply system + a tube furnace + a gas extraction system. The maximum temperature can reach 1200 degrees, 1400 degrees, 1600 degrees, and 1700 degrees. The heating zone can be single temperature zone, dual temperature zone, three temperature zone, etc., and the ultimate vacuum It can reach 10-3Pa. The air supply system can be adjusted by a proton flow meter or a float flow meter. The number of gas mixing channels can be 2 channels, 3 channels, 4 channels, and 5 channels.
Heating element
(1) The thickness d of the hot end of the silicon carbide rod is 14mm, 12MM used by general manufacturers, the heating end is thick, not easy to bend, the surface load of the rod is low, and the service life is long. (2) The length of the cold end of m is 210mm, and the general manufacturer uses 180mm. The long cold end has a low top temperature. (3) The densely oxidized amorphous film on the surface of silicon carbide rods can better protect the carbon rod

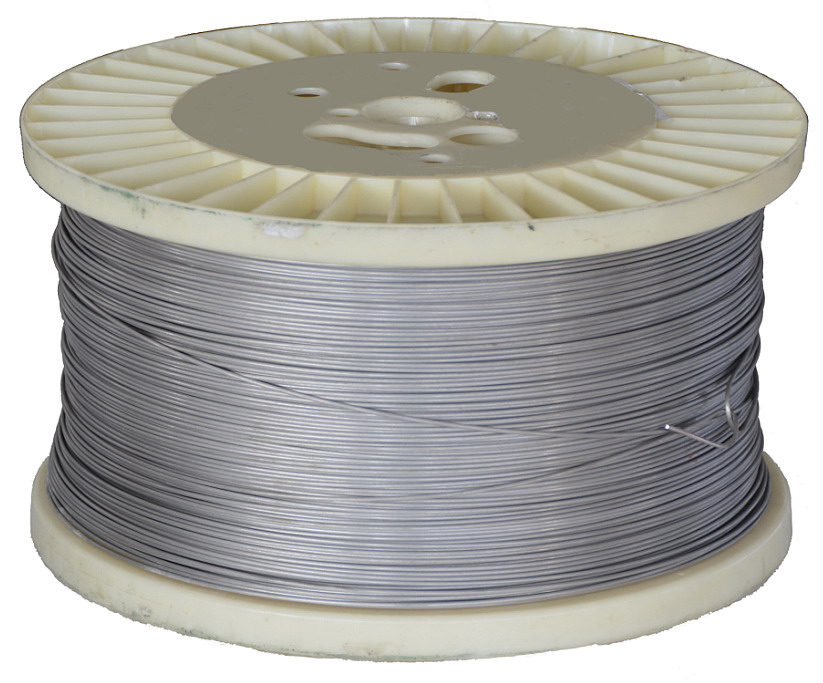

Swedish Kanthal A1 resistance wire
(1), the surface temperature can reach 1420 ℃ (2) The surface is stainless steel (very bright, pay attention when customers identify it), will not rust, and will not drop slag even if it is used for a long time. (3) , Kanthal resistance wire data download (4) Kanthal resistance wire website: www.kanthal.com (5), resistance balance, temperature field balance is good
