Three Electrode Split Test Cell for R&D Battery 15mm Diameter

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number 3ESTC
Minimum Order Quantity 1 Set
Price USD600-1000/Set
Packaging Details Wooden packing
Delivery Time 14
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Max. Working Temperature 200°C Bottom Recess Area 16mm Dia
Reference Ring OD 26 Mm X ID 19mm. Cathode Disk 15mm
Anode Disk 15 Mm Dia Meter Or Les Thickness 1.92mm
High Light

battery Electrode Tester


Three Electrode Split Test cell


battery Split Test

Leave a Message
Product Description

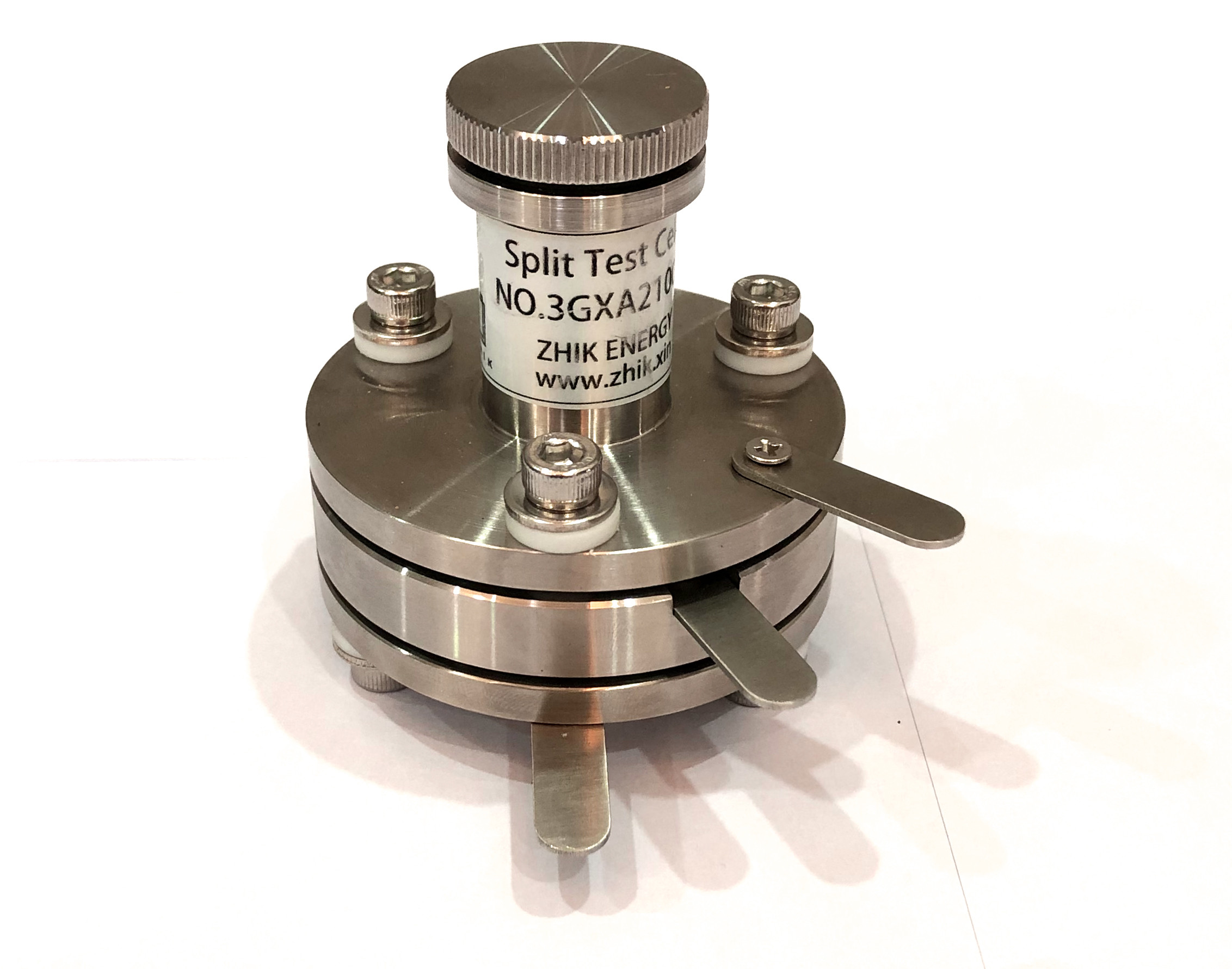

Three-Electrode Split Test Cell for R&D Battery - 15 mm Diameter Cell


The EQ-3ESTC split-able test cell is designed for R&D of rechargeable battery materials by testing three electrodes. It is designed to test various electrodes easily and quickly by providing the user with a structure to simulate assembled coin cells without the need to crimp actual coin cell cases. Two sides of the test cell connect to both electrode (the anode and cathode), with the middle being connected to the reference electrode which can be used for monitoring voltage variations of the two electrodes. This test cell can accept 15 mm diameter electrodes and 24mm separators.



Item Number EQ-3ESTC-Al EQ-3ESTC15 EQ-3ESTC15P
Structure Aluminium Alloy: LY12 (dedicated to using at high voltage > 4.5V) Full stainless steel SS304 SS304
  • This is a three-electode with dimension of cathode/anode and reference ring as the follow:
    • Cathode disk: 15 mm dia or less
    • Anode disk: 15 mm dia meter or less
    • Reference ring: OD 26 mm x ID 19mm.
  • Electrolyte corrosive-proof PTFE Guide Sleeve capable of withstanding up to 250 ºC is included
  • The adjustable spring tension on top to accept various electrode thicknesses is included
  • Easy to separate after testing.
  • Small enough to be put into and taken out from a glove box.
Additional Features N/A Needle valve w/ 1/4" brass fitting.

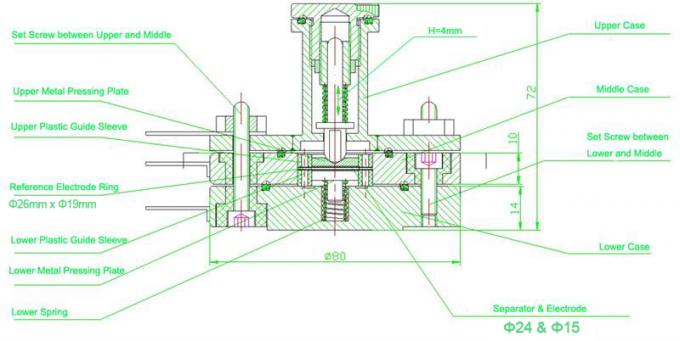

Detailed Illustrations of the Cell Three Electrode Split Test Cell for R&D Battery 15mm Diameter 0
Max. Working Temperature 200 ºC
  • to cut all electrode disc, including a ring-shaped reference electrode (26mm OD x 16 mm ID, usually Li metal). Please click on the left picture below to order.
  • For strong corrosive electrolyte, you may choose gold coating inside the cell (choose from personalization)
  • One year limited manufacturer warranty with lifetime support
  • Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty
