Dual Jar 3D Laboratory Ball Mill Machine Shaker with 180W Power

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-GB80D
Minimum Order Quantity 1 Piece
Price USD4500-5500/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-GB80D Power 180W
Feeding Size <1mm Swing Frequency 1000 RPM
Discharge Size As Small As 0.1μm Dimensions 525×365×280(mm)
High Light

3D Laboratory Ball Mill


Dual Jar 3D Laboratory Ball Mill


battery 3D Ball Mill

Leave a Message
Product Description

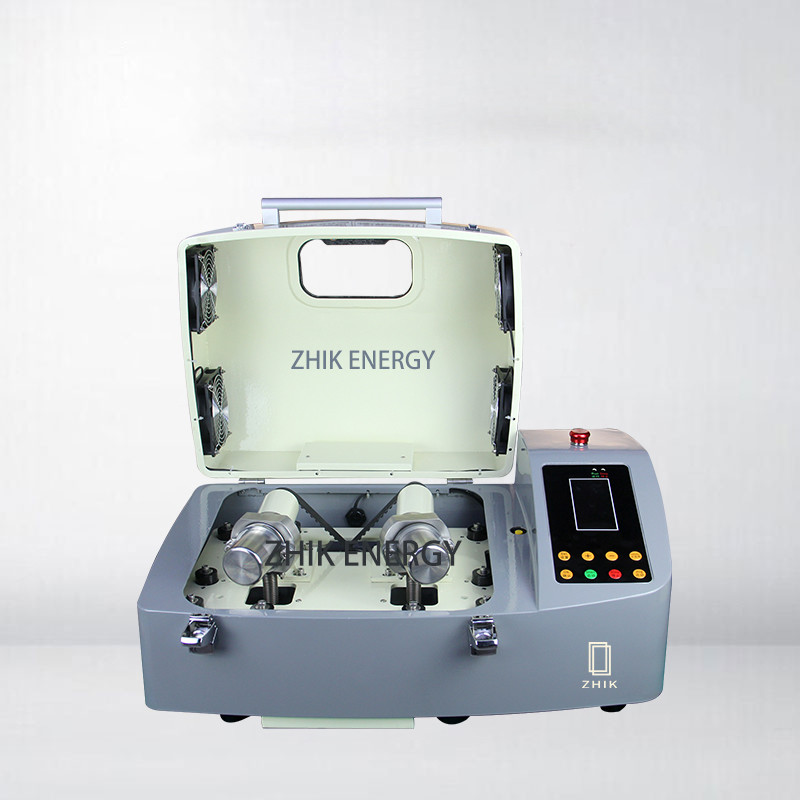

Dual Jar 3D Rotary & Shaker Ball Mill

ZK-GB80D is a dual jar high energy ball mill with 3D movement which can mill two types of powder into nanoscale at the same time. It has a
higher impact force created by three-dimensional movement, e.g. rotation, vibration and oscillation with frequency up to 1000 RPM.
The 24VDC motor is built-in with the separated and programmable control unit, which can be operated inside a glovebox with Argon


The high-speed vibrating ball mill has an eccentric swing shaft. During high-speed operation of the motor, the tank body oscillates oscillatingly; it drives the entire support to vibrate up and down, so that the grinding process is completed in the three-dimensional space of high-speed oscillation and vibration. Greatly improve the grinding speed and efficiency.
Dual Jar 3D Laboratory Ball Mill Machine Shaker with 180W Power 0
technical parameter
Model specifications
Jar specifications
Maximum load
One third of the volume of the ball mill
Feeding size
Discharge size
As small as 0.1μm
Swing frequency
1000 RPM
Timing range
0 ~ 9999 seconds and normally open
Motor specifications
Single phase 220V 180W 50HZ
product description
ZK-GB80D high-speed vibrating ball mill is a kind of high-efficiency small instrument used for the preparation of laboratory samples
(a small amount and a trace amount)
working principle
The instrument has three-dimensional rotation and vibration and vibration during grinding, and the collision energy is higher than
other types of ball mills.
The instrument is small in size, light in weight, high in efficiency and cheap in price
Scope of application
The high-speed vibration ball mill can be used to dry or wet ball mill or mix various types of solids, suspensions and pastes with
different particle sizes and different materials. It can be used for grinding, mixing and mechanical alloying of materials
Included accessories
Dual Jar 3D Laboratory Ball Mill Machine Shaker with 180W Power 1
Optional accessories
Dual Jar 3D Laboratory Ball Mill Machine Shaker with 180W Power 2
