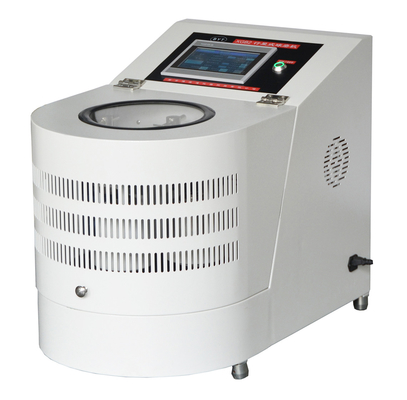

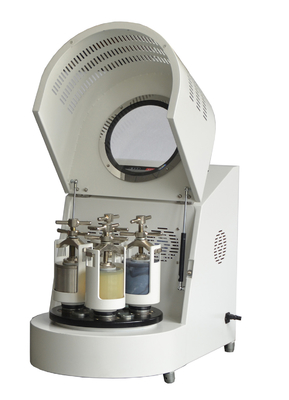

Laboratory 2L Planetary Ball Mill Machine 0.75KW for Benchtop Battery

  • Laboratory 2L Planetary Ball Mill Machine 0.75KW for Benchtop Battery
  • Laboratory 2L Planetary Ball Mill Machine 0.75KW for Benchtop Battery
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-XGB2L
Minimum Order Quantity 1 Piece
Price USD3000-3500/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ZK-XGB2L Power 0.75KW
Transfer Method Gear Drive Output Granularity Up To 0.1um
Rotation Speed Of Ball Mill Tank 00 ～ 580 Rpm Disk Speed 00 ～ 290 Rpm
Highlight

Laboratory 2L Planetary Ball Mill

,

small Lab Planetary Ball Mill

,

battery Planetary Ball Mill
Leave a Message
Product Description

  • Laboratory 2L Planetary Benchtop Battery Ball Mill Grinder

  • ZK-XGB2L planetary ball mill

Planetary ball mills can grind or mix solid particles, suspensions and pastes of different particle sizes and materials by dry and wet methods. If a vacuum ball mill is used, the samples can be ground and mixed in vacuum or inert gas. This series of ball mills are widely used in geology, metallurgy, soil, building materials, chemical industry, light industry, medicine, electronics, ceramics, batteries, environmental protection and other fields.
power
0.75KW
power supply
220V 50HZ
Display method
LED display, and can display the speed of ball mill
transfer method
gear drive
Way of working
Two or four ball mill tanks working simultaneously
Loading capacity
Two-thirds of the ball mill tank volume
Abrasive method
Can be dry or wet Stainless steel vacuum cans can be ball milled under aerated or vacuum conditions. With a stainless steel vacuum
sleeve, other common cans can be sheathed, so that the materials are in
agate, zirconia, polytetrafluoroethylene, etc., under aerated or vacuum ball milling.
Feed size
Soil material ≤10mm, other materials ≤3mm
Output granularity
Up to 0.1um
Speed ​​ratio
(Roller speed: ball mill tank speed) 1: 2
Rotation speed of ball mill tank
00 ～ 580 rpm
Disk speed
00 ～ 290 rpm
control method
Variable frequency stepless speed regulation and program control
intelligent control
With timing, automatic shutdown function. Able to set automatic forward and reverse rotation, set intermittent rotation Open lid
and power off
Maximum continuous working time
(full load) 72 hours
Models that can be equipped with ordinary ball mill tanks
(Can fit 4 such jars) 100ML 250ML 500ML
Models that can be equipped with stainless steel vacuum ball mill tanks (can fit 4 such tanks)
100ML 250ML
Models that can be equipped with stainless steel vacuum ball mill sleeves (can fit 4 such jars)
100ML 250ML
