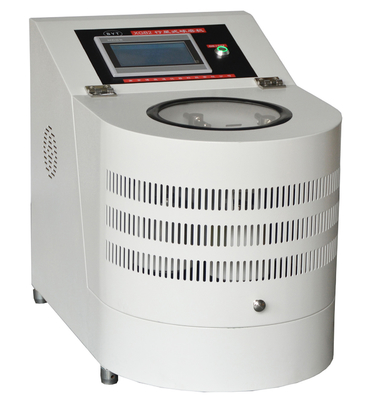

Benchtop Battery Planetary Ball Milling Machine 4L 1.5KW For Laboratory

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-XGB4L
Minimum Order Quantity 1 Piece
Price USD3500-4000/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-XGB4L Power 1.5KW
Transfer Method Gear Drive Output Granularity Up To 0.1um
Rotation Speed Of Ball Mill Tank 00 ~ 530 Rpm Disk Speed 00 ~ 265 Rpm
High Light

4L Planetary Ball Mill


Laboratory 4L grinder


battery materail Planetary grinder

Leave a Message
Product Description
  • Laboratory 4L Planetary Benchtop Battery Ball Mill Grinder


  • ZK-XGB4L planetary ball mill

1. The gear transmission is adopted, and the gear transmission will not slip, which can ensure that the rotation speed of the 4 cans is consistent! In the case of ball milling the same material, it can ensure that the consistency of the materials in the 4 jars after ball milling is very good! And can ensure that the same material, under the same process, the effect of each ball milling is the same! That is, it has good repeatability and consistency!
2. Fast rotation, large energy, high efficiency and fine granularity
3. One experiment can grind four samples of different sizes and materials at the same time.
4. The ball mill has the functions of frequency conversion, program-controlled stepless speed regulation, etc. The ideal speed is selected according to the test results.
5. Equipped with timing shutdown, automatic timing forward and reverse devices, which can be freely selected according to needs, which is practical and convenient.
6. This machine has the advantages of low center of gravity, good rigidity, compact structure, convenient operation, safety and reliability, low noise, no pollution, and low loss.

7. The planetary ball mill is equipped with 4 wheels, next to the wheels is a height adjustment screw, which can adjust the position balance of the ball mill

power supply
220V 50HZ
Display method
LED display, and can display the speed of ball mill
transfer method
gear drive
Way of working
Two or four ball mill tanks working simultaneously
Loading capacity
Two-thirds of the ball mill tank volume
Abrasive method
Can be dry or wet Stainless steel vacuum cans can be ball milled under aerated or vacuum conditions. With a stainless steel vacuum
sleeve, other common cans can be sheathed, so that the materials are in
agate, zirconia, polytetrafluoroethylene, etc., under aerated or vacuum ball milling.
Feed size
Soil material ≤10mm, other materials ≤3mm
Output granularity
Up to 0.1um
Speed ​​ratio
(Roller speed: ball mill tank speed) 1: 2
Rotation speed of ball mill tank
00 ~ 530 rpm
Disk speed
00 ~ 265 rpm
control method
Variable frequency stepless speed regulation and program control
intelligent control
With timing, automatic shutdown function. Able to set automatic forward and reverse rotation, set intermittent rotation Open lid
and power off
Maximum continuous working time
(full load) 72 hours
Models that can be equipped with ordinary ball mill tanks
(Can fit 4 such jars) 250ML 500ML 1000ML
Models that can be equipped with stainless steel vacuum ball mill tanks (can fit 4 such tanks)
250ML 500ML
Models that can be equipped with stainless steel vacuum ball mill sleeves (can fit 4 such jars)
250ML 500ML
