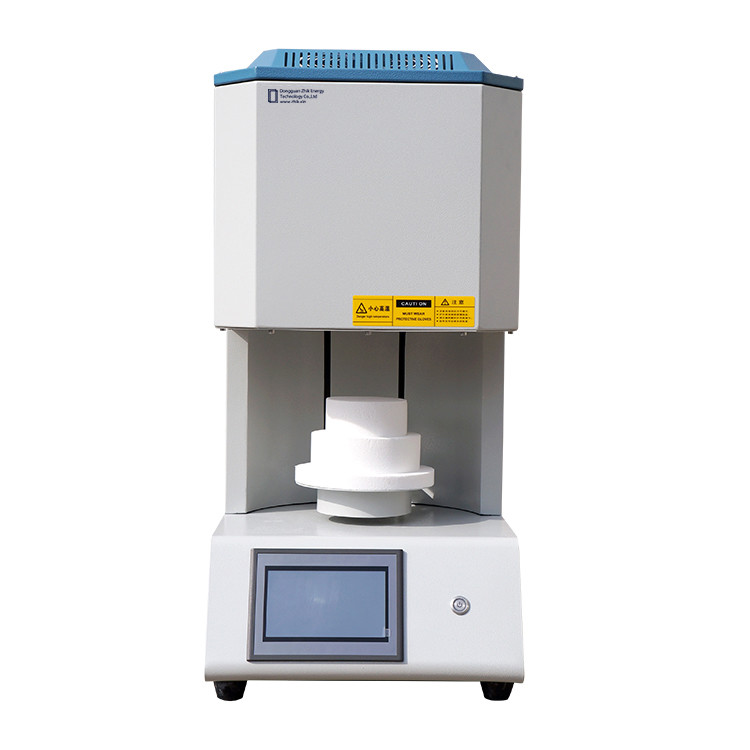

1200 Degree Programmable Muffle Furnace , 2KW 220V High Temperature Laboratory Furnace

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZKY-120-12
Minimum Order Quantity 1 Piece
Price USD1500-2000/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZKY-120-12 Power 2KW
Voltage 220V Control Precision +/- 1 ℃
Rated Temperature 1200 ℃ Chamber Size Mm(W*D*H) 120x120mm
High Light

1200 Degree Muffle Furnace


Laboratory Programmable Muffle Furnace


High Temperature Muffle Furnace

Leave a Message
Product Description
  • 1200 degree programmable lift furnace

1. Product description

The series of products are mainly aimed at the heat treatment of samples in an air atmosphere. The high-quality furnace materials and stable temperature control system can ensure the reliability of the experimental data; the products use new ceramic fiber materials as the furnace materials, and the heating elements are installed around the furnace. The precision lead screw is linearly raised and lowered, and the material is loaded down; the temperature control is controlled by a 7-inch touch screen, and the heating data curve can be viewed online in real time.


2. Product Features

1. The furnace material is made of high-purity alumina ceramic fiber material, with a new assembly structure, which is not deformed at high temperature, and is durable.

2. The heating element adopts high temperature alloy wire, which can bear large load, is stable and has a long service life

3. The heating speed is fast. It usually takes 15-30 minutes to rise from room temperature to 1000 degrees Celsius.

4. Using intelligent PID temperature control instrument, high temperature control accuracy, small punch temperature, with temperature compensation and temperature correction functions, the accuracy is ± 1 ℃

5. The temperature control instrument has a program function, which can set the heating curve and can program 30 segments

6. One-piece structure, patented appearance design, beautiful and generous

7. The electronic components are all well-known products, with leakage protection function, safe and reliable

8. The machine will send an alarm signal to the over temperature during the working process, and automatically complete the protection action

9. When the instrument program setting is completed, as long as the run button is pressed, the next work will be completed automatically
