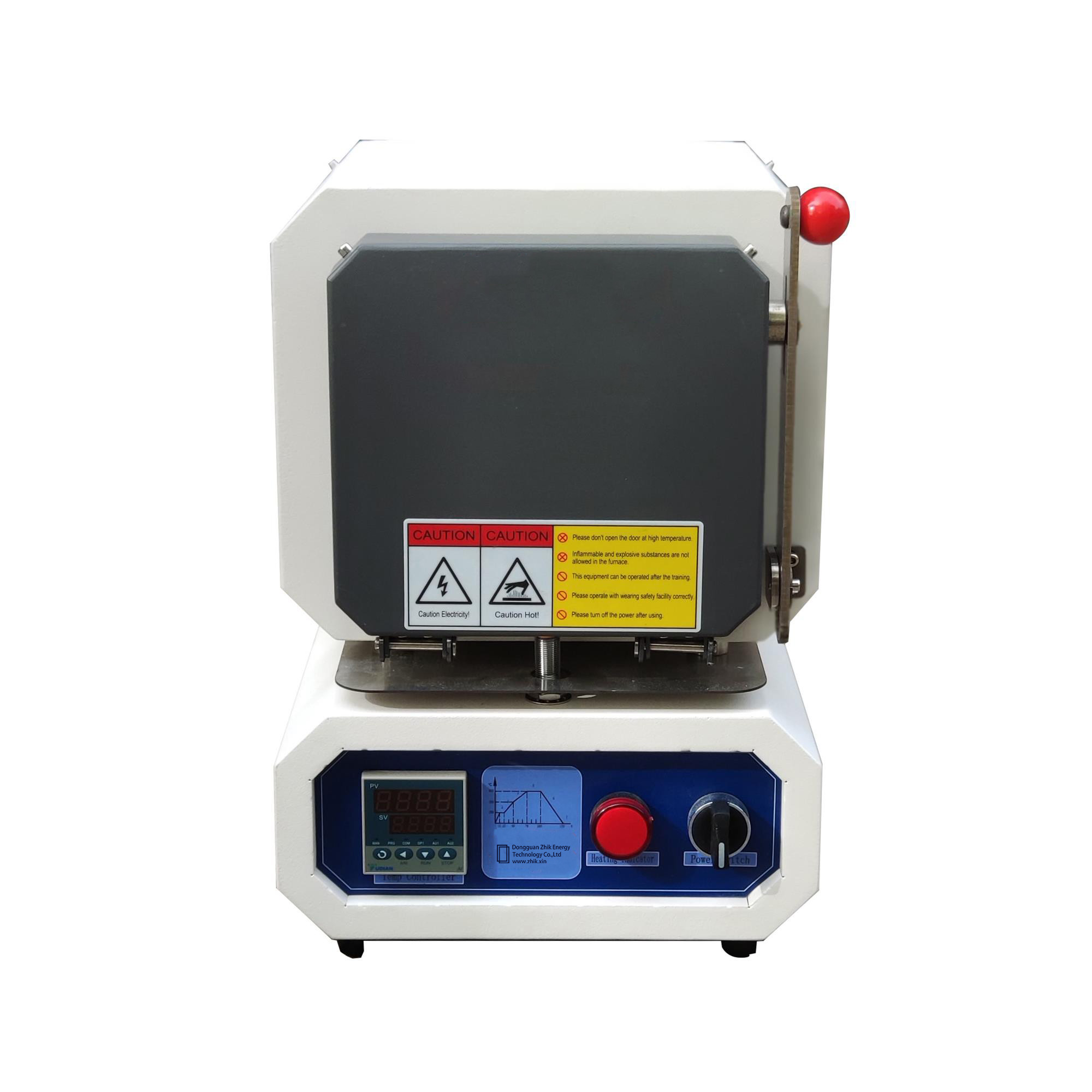

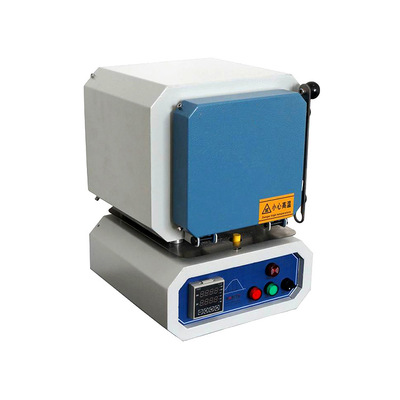

1000 Degree Laboratory Muffle Furnace 1 Liter With 1.8KW Power

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZKM-1-10
Minimum Order Quantity 1 Piece
Price USD550-1000/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZKM-1-10 Power 1.8KW
Voltage 380V Control Precision +/- 1 ℃
Rated Temperature 1000 ℃ Dimensions 100x100x100mm
High Light

1000 Degree Muffle Furnace


Laboratory 1000 Degree Muffle Furnace


battery material Muffle Furnace

Leave a Message
Product Description
  • 1000C Degree 1 Liter Muffle Furnace




1100c Compact Muffle Furnace (4x4x4",1.0L) with Programmable Controller With the features of small volume, low energy consumption and light weight, the mini furnace is convenient for every person hold one set in the laboratory. It use electric resistance wire as heating element, adopted carbon steel shell structure and intelligent temperature control system;


Model No.
Chamber size(mm)W*D*H
Power supply
Max. temperature
1000 ℃
Continuous temp.
Heating rate
≤ 25℃/min ( suggest 15℃/min for longer life using of furnace )
Temp. controller
PID Automatic control and auto-tune function
30 programmable segments for precise control
built in protection for the over-heating and broken thermocouple
large digital control panel for easy operation
One pair of high temperature furnace gloves;
One pair of crucible stongs
Optional devices
Paperless recorder
Stainless steel exhaust chimney
Alumina crucible


Main Features

1. The furnace material is vacuum-formed alumina ceramic fiber material and does not drop powder in high temperature, heat capacity is small, energy saving above 50%
2. The heating element is made of high-quality alloy wire, which can bear large load, stable and long service life
3. The heating rate is fast, from room temperature to 1000 degrees, generally takes 15-30 minutes
4. High precision of temperature control, small temperature compensation and temperature accuracy ± 1 ° C
5. Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 30 segments
6. Electronic components are used Delixi products, with leakage protection, safe and reliable
7. Microprocessor-based PID control with self-tuning capability to prevent overshooting of set temperature.
8. When the instrument program is set, just press the run button and the next work will be completed automatically

9. Optional air inlet can be used to purge and protect the inert gas such as air. It can also be installed with an exhaust chimney and connected with stainless steel bellows to discharge the toxic and harmful gases volatilized in the furnace to the designated location.
