Protection Board Laser Welding Machine For Lithium Ion Batteries 500W 1000W 2000W

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-LW200
Minimum Order Quantity 1 Set
Price USD15000-20000/Set
Packaging Details Wooden packing
Delivery Time 20
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Power 200W Laser Frequency 1-50Hz
Demand For Electricity 380V±5V 50Hz/60A /220V±5V 50Hz/40A Pulse Width 0.1-30Ms
Laser Wavelength 1064nm Spot Adjustment Range 0.3-2mm
High Light

Battery Laser Welding Machine


Mobile Phone Battery Welder


Protection Plate Welding Machine

Leave a Message
Product Description

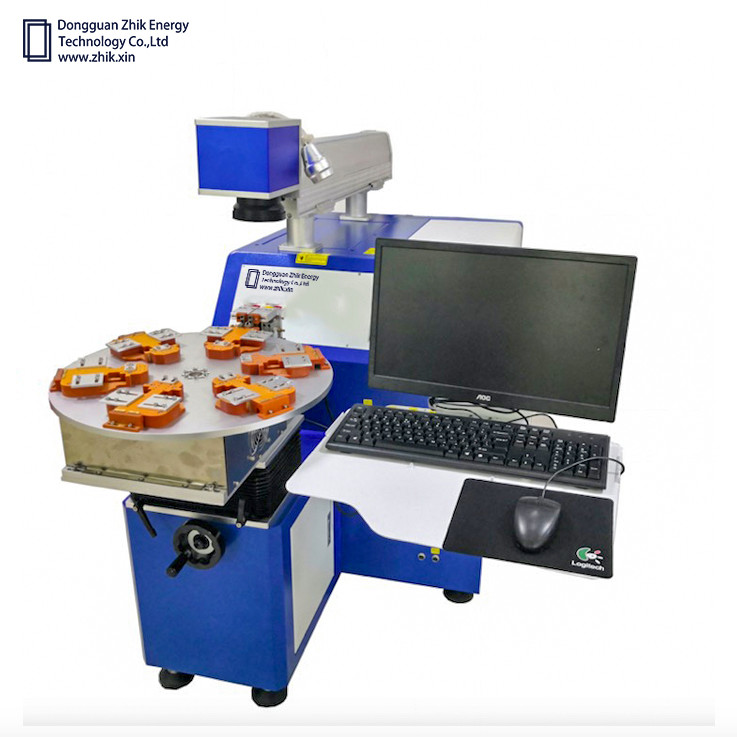

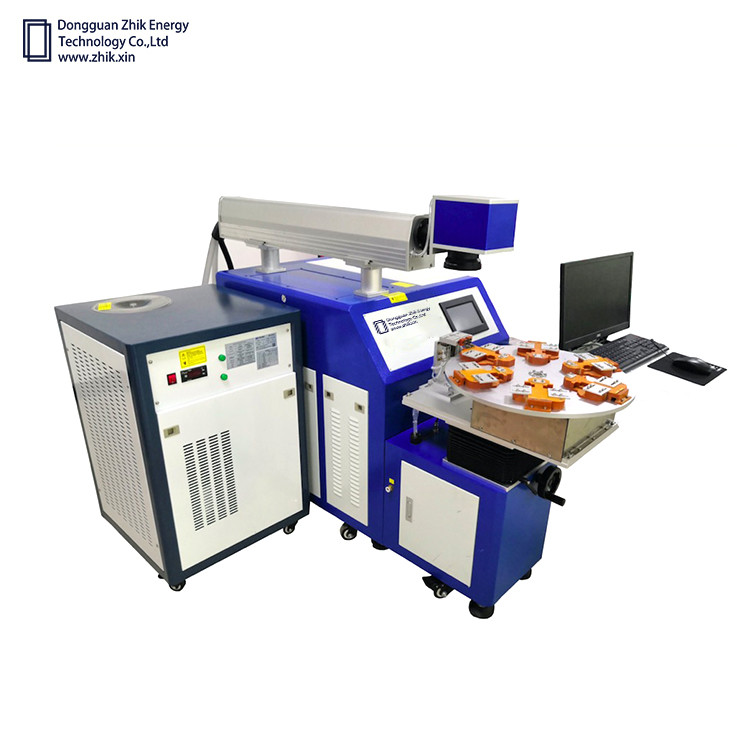

500W 1000W 2000W Mobile Phone Prism Aluminum Shell Battery Protection Board Laser Welding Machine
Product Description

1. Adopt imported ceramic concentrating cavity, high reflectivity, strong energy, high temperature resistance, corrosion
resistance and long service life; 2, equipped with 1P special chiller, can meet the long-term, high-power welding stability; 3,
small spot design precision is higher; 4, special welding control system, high stability, with full Chinese Teaching programming,
LCD touch screen is super control, easy to understand and easy to learn, expand Strong, can be combined with assembly lines,
photodetectors, pneumatic fixtures and other devices for automatic processing; 5. Specially optimize the welding processing of
mobile phones, batteries, MP3 metal casings and structural parts, with more specificity and higher efficiency;

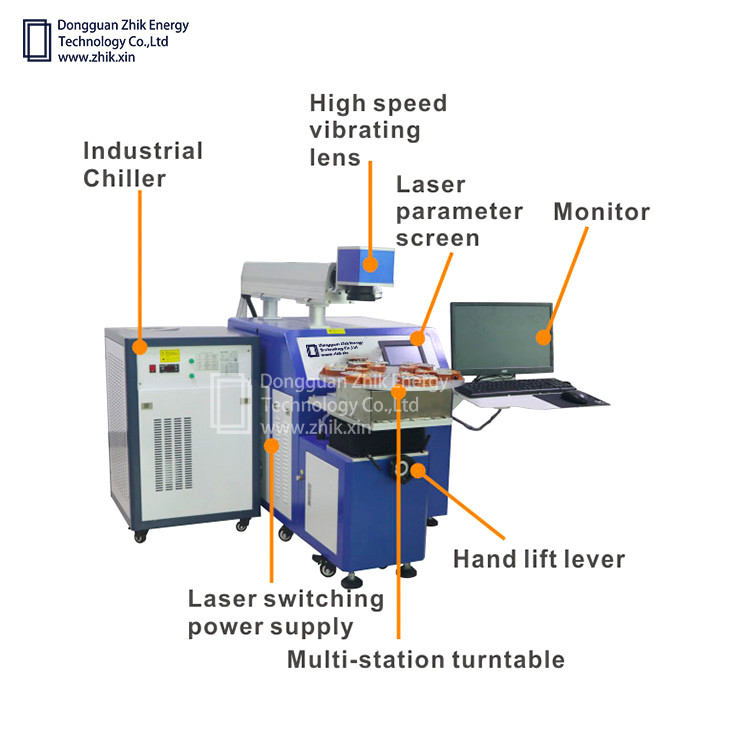

Protection Board Laser Welding Machine For Lithium Ion Batteries 500W 1000W 2000W 0


Technical Parameter
Maximum laser power
laser wavelength
laser frequency
pulse width
Spot adjustment range
Aimed at positioning
Microscope and red light (optional camera system)
cooling-water machine refrigerating power
Demand for electricity
380V±5V 50Hz/60A /220V±5V 50Hz/40A
External dimensions/net weight
Host computer:1150×650×1100mm 102Kg
cooling-water machine:500×550×750mm 65Kg
