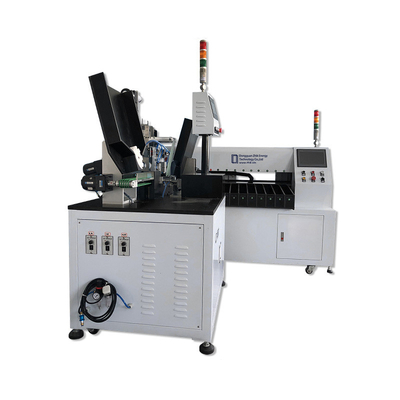

Automatic Battery Pack Production Machine For Sticking Insulation Paper OEM ODM

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-TZ- FX10D
Minimum Order Quantity 1 Sets
Price USD1800-24000/Sets
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-TZ- FX10D Power 2KW
Voltage 110V/220V Working Air Source 0.4-0.6Mpa
Dimension(L*W*H) 1640*930*1370MM(L*W*H) Weight 800kg
High Light

Automatic sticking insulation paper and automatic sorting machine


Cylindrical battery sorting machine


Cylindrical battery pack equipment

Leave a Message
Product Description

  • Automatic sticking insulation paper and automatic sorting machine


The internal resistance, voltage and other parameters of the battery are set through the software of the man-machine interface, and the PLC automatically completes the following functions:
Manually fill the battery into the silo → the positive electrode of the battery is pasted with insulating highland barley paper → the belt carries the battery → test the cylinder test and sorting (the tester uploads the data, software sorting) → the mechanical hand sorts the battery; the equipment is equipped with sound and light alarm, and the sorting can be completed Automatic shutdown, full material alarm, fault alarm, etc. Operating parameters can be set according to the actual requirements of customers


1) The equipment is compact and reasonable in structure, beautiful in appearance and small in space.
2) The equipment is easy to operate, without professional training, and workers can easily master it.
3) The equipment is controlled by PLC+touch screen, PLC is responsible for battery feeding, transporting, receiving and other actions, and the touch screen is responsible for data collection and storage of battery test instruments, voltage and internal resistance level sorting and setting, battery parameter management, etc. The operation is simple and easy to learn and work efficiency. High, save labor costs, good product performance.
4) The sticker machine and sorting machine can also be used separately, with good flexibility.
5) The equipment material adopts high-quality thick cold-rolled sheet metal frame.
6) The equipment is equipped with universal movable casters, which can easily move when the equipment is displaced.

Model specifications
Working air source
Sorting efficiency
equipment weight
Material Specification Requirements
The maximum diameter of the coil is 350MM, and the inner diameter of the core
72-75MM, width 100MM
pad power
 Electric, variable frequency speed regulation
Feeding method
18650 or 21700 or 26650 or 32700 finished cells, can be customized
