Pre Clamped Lithium Battery Raw Material , 18650 Cylinder Cell Case

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number 18650
Minimum Order Quantity 1 Box
Price USD120-250/Box
Packaging Details Standard export packaging
Delivery Time 5-10DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 Box
Product Details
Dimensions (Dia X Height) 18mm(OD) X 17.5mm(ID) X 67mm(H)
High Light

18650 Cylinder Cell Case


18650 battery model


Cylindrical battery model

Leave a Message
Product Description

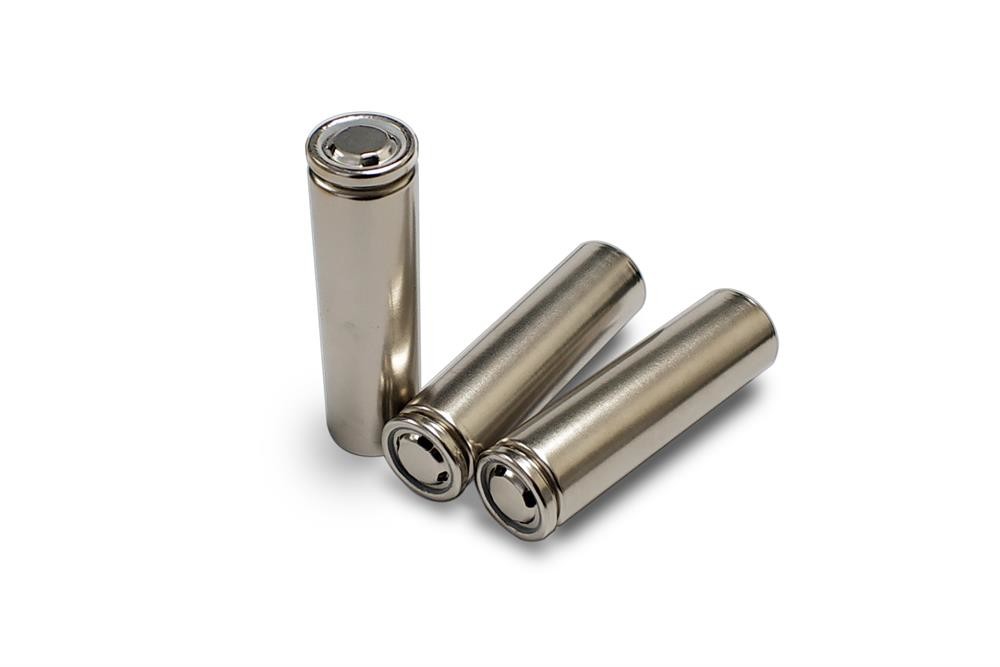

18650 Pre-Clamped Empty Cylinder Cell Case With Anti-Explosive Cap - 100 Pcs/Package

Note: These empty cylindrical cells are pre-clamped with the cap only and WITHOUT Cathode and Anode, they can NOT be used or charged as regular cylindrical batteries.

  • Cap with Built-in PTC Thermistor for overcurrent protection
  • Cut-off current is about 7A
Dimensions (Dia x Height)
  • Case: 18mm(OD) x 17.5mm(ID) x 67mm(H)
  • Top Cap: 17.5mm(D) x 4.05mm(H)
  • Top Insulator: 12.5mm(D) x 0.19mm(H)
  • Bottom Insulator: 12.5mm(D) x 0.19mm(H)
  • Case and cap are made of Nickel plated A3 steel
  • Seal O-ring and spacer are made of nylon
  • No insulating gasket
Weight 9.50 g/pcs
  • Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure -- if over 2.5MPa -- to ensure the can does not explode)
  • 18650 case's grooving and sealing machine is available upon request
