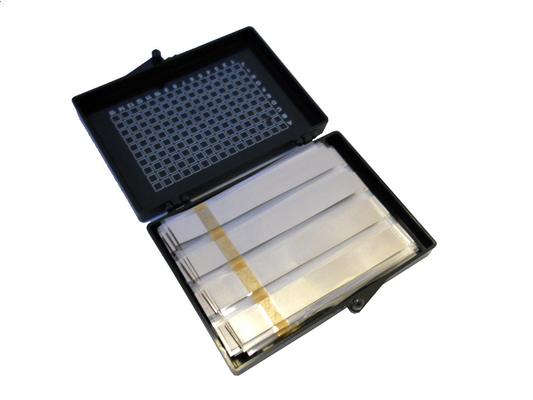

8mm Width Lithium Battery Raw Material Nickel Tab For Pouch Cell CE Certificate

  • 8mm Width Lithium Battery Raw Material Nickel Tab For Pouch Cell CE Certificate
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number 8mm*0.1
Minimum Order Quantity 1 Box
Price USD35-69/Box
Packaging Details Standard export packaging
Delivery Time 5-10DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 Box

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Substrate Length 61mm Net Weight 320mg/pcs
Tape Material PP/PEN/PP Substrate Thickness 0.1mm
Substrate Width 8mm Material Nickel 99.99%
Highlight

Lithium Battery Raw Material Nickel Tab

,

CE Lithium Battery Raw Material

,

8mm nickel tabs for batteries
Leave a Message
Product Description
  • 8mm Width Nickel Tab With Adhesive Polymer Tap As Negative Terminal For Pouch Cell

    8mm Nickel Tab with hot melt tape as Negative Terminal for Polymer Li-ion Battery -- 50pcs/Box
    • Material: Nickel 99.99%
    • Length: 60mm
    • Width: 8mm
    • Thickness: 0.09mm
    • Package: 50 pcs per box
    • Net Weight: 320mg/pcs
    • Gross Weight: 20g (Tabs with Box)
    • Max. Loading Current: 10A
    • Suggested Sealing Method (parameter below may vary from case to case):
    • Soft type heat-sealing blade (Blade with rubber)
    • 180-200C for upper blade
    • 160-180C for lower blade
    • 40PSI (0.3Mpa)
    • 3 seconds heating time
