3mm Width Nickel Tabs For Batteries as Negative Terminal for Polymer Li ion

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number 3mm*0.1
Minimum Order Quantity 1 Box
Price USD12-15/Box
Packaging Details Standard export packaging
Delivery Time 5-10DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 Box
Product Details
Substrate Length 60mm Tape Width 4mm
Tape Material PP/PEN/PP Substrate Thickness 0.1mm 0.15mm
Substrate Width 3mm Material Nickel
High Light

Nickel Tabs For Battery


Pure Nickel


Aluminum Tab

Leave a Message
Product Description

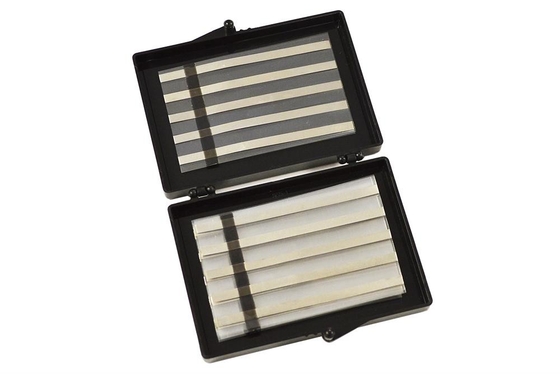

  • 3mm Width Nickel Tab as Negative Terminal for Polymer Li-ion Battery 40pcs/Box
    Material: Nickel 99.99%
    Length: 60mm
    Width: 3mm
    Thickness: 0.09mm in Nickel Tab
    0.28mm in Nickel Tab with Adhesive Polymer Tape
    Adhesive Polymer Tape is attached on the tab for immediate hot sealing
    Application: Connect to anode current collector as polymer battery negative terminal
    Net Weight: 160mg/pcs
    Gross Weight: 19.01g (Tabs with Box)
    Max. Loading Current: 3A

    Suggested Sealing Method (parameter below may vary from case to case):
    • Soft type heat-sealing blade (Blade with rubber)
    • 180-200C for upper blade
    • 160-180C for lower blade
    • 40PSI (0.3Mpa)
    • 3 seconds heating time
