Laboratory Semi Auto Cylindrical Cell Case Roll Grooving Machine for Lithium Cylinder battery CR123 18650 26650

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-G50
Minimum Order Quantity 1 Piece
Price USD2100-3000/Piece
Packaging Details Wooden packing
Delivery Time 14
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-G50 Grooving Depth 1.2~2.0mm
Accuracy ±0.1mm Grooving Width 1.1-1.5mm
Air Pressure 0.5-0.7MPa Grooving Battery Case Size CR123,18650,26650,32650,etc
High Light

Lab Grooving Machine


Cylindrical Cell Grooving Machine


32650 Cylindrical Battery Grooving Machine

Leave a Message
Product Description

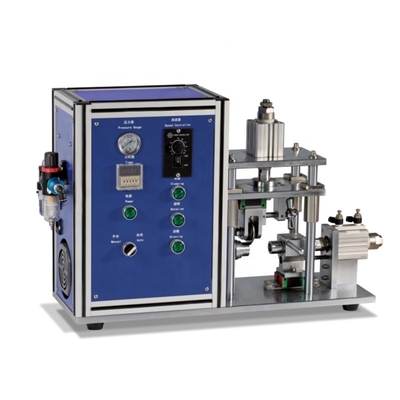

Semi-Auto Cylindrical Cell Case Roll Grooving Machine

ZK-G50 is suitable for uniform and automatic rolling grooves of cylindrical steel shells (or capacitor aluminum shells) equipped with batteries. The replacement of rolling groove molds can be applied to the production of cylindrical batteries of various specifications.


Product Name Grooving Machine
Model No. ZK-G50
Roll groove depth 1.2~2.0mm (adjustable)
Rolling groove width 1.1~1.5mm (according to the thickness of the hob)
Processing accuracy ±0.1mm
Hob life > 1 million times
Capacity Semi-automatic 400 EA/H
Configuration power supply 220v/50Hz
Power 140W
Compressed air 0.5MPa~0.7MPa
Dimensions 820mm X 255mm X 510mm
Weight 80kg
Suitable for various steel shell cylindrical battery roll grooves such as 18650, 26650.21700...
Suitable for aluminum shell capacitor rolling groove within Φ30
