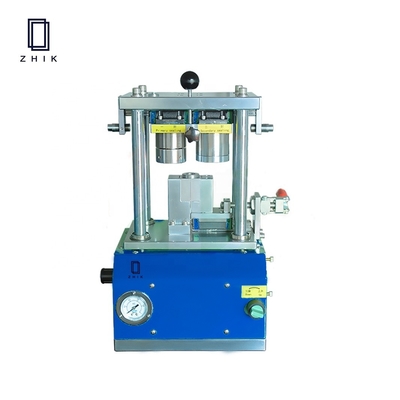

Crimping Battery Cell Making Machine for 26650 Cylindrical Battery

  • Crimping Battery Cell Making Machine for 26650 Cylindrical Battery
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-CC50P
Minimum Order Quantity 1 Set
Price USD4200-5500/ste
Packaging Details Wooden packing
Delivery Time 14
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 36Kg Sealing Trip 30
Highlight

Cylindrical cell crimping machine

,

18650 battery crimping machine

,

Cylindrical cell pneumatic crimping machine
Leave a Message
Product Description

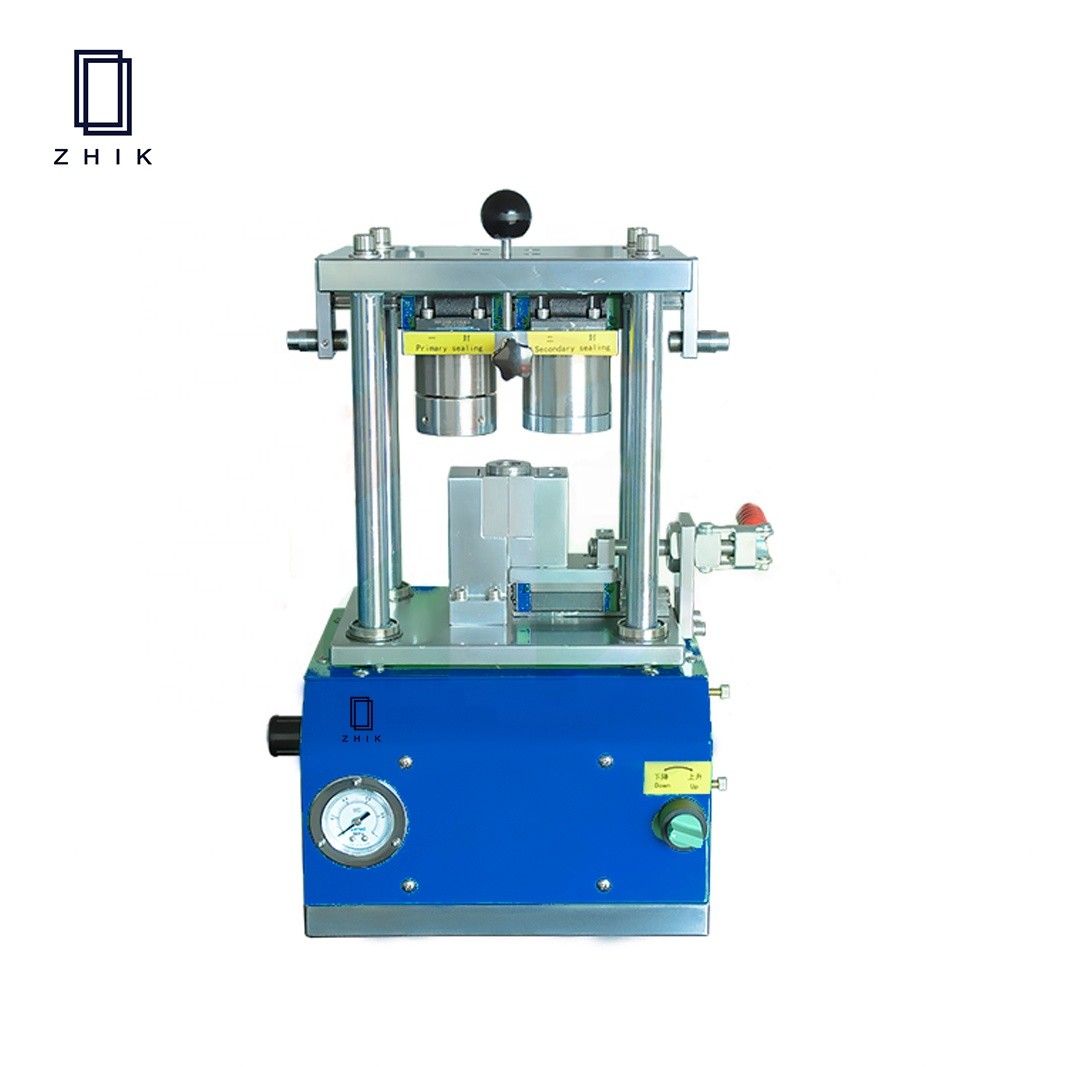

26650 Cylindrical Battery Crimping Machine
Product Description



Main features:
1 Totally operated by pneumatic. Without any electricity. Very easy to use.
2 Two steps for sealing which make better sealing.
3 Precise design of the mold ensures accurate and reliable sealing. Solid steel structure design makes a steady and safe use.
4 Good looking appearance, Simple maintenance, Small size, easy operater and accurate molding.

Technical Parameter
1
Model
ZK-CC50P
2
Warranty
One Year limited warranty with lifetime support
3
Gas source
0.4 ~ 0.8MPa argon, nitrogen cylinders, or compressed air (compressed air is not recommended in the glove box)
4
Exhaust gas design
specially designed exhaust ports, which can be externally connected through devices such as KF40
5
Gas consumption
480ml for single seal
6
Sealing pressure
manual control valve control, maximum pressure 1 MPA, recommended use pressure 0.7 MPa, accuracy ±0.5%
7
Sealing trip
30 mm
8
Sealing dies
Standard 18650 series package dies, it can be selected or matched with other specifications
9
Dimension
L290mm*W205mm*H330mm
10
Weight
36Kg

11

Structural material
1.With the function of preventing the short circuit of the battery seal.
2.high strength chromium steel, the surface after environmental plating and spray treatment will never rust
