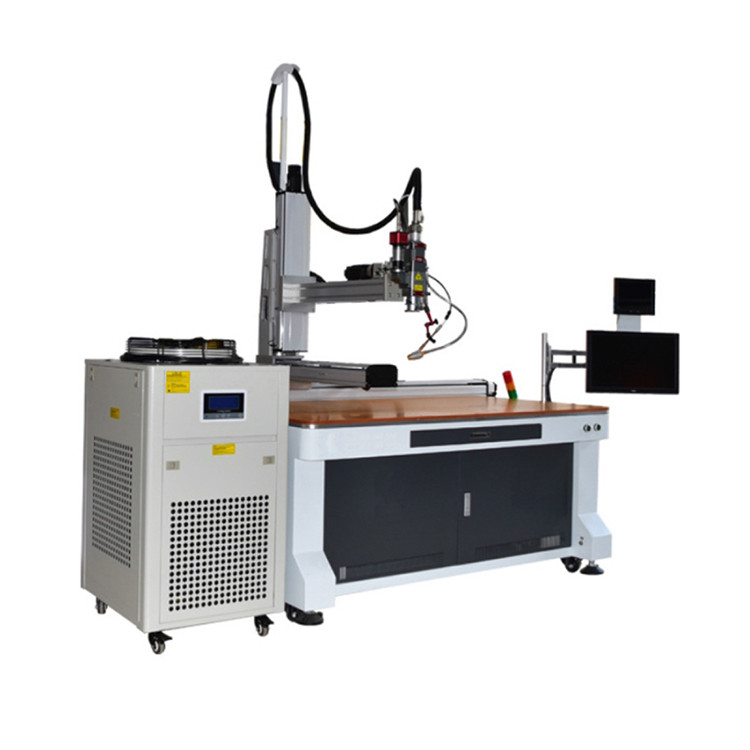

2000W Fiber Laser Welding Machine Automatic for Prismatic Lithium Battery Pack

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-BW1500
Minimum Order Quantity 1 Set
Price USD15000-38000/set
Packaging Details Wooden packing
Delivery Time 20
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Power 1500W Welding Penetration 0.1~3.0mm
Max Speed 500mm/s XY Travel Customizable, Max 700*500mm
Z Travel Customizable, Max 400mm R Axis Optional, 360° Rotation
High Light

Lithium Battery Pack Laser Welding Machine


battery pack 2000W Laser Welding Machine


Aluminum shell battery laser welding machine

Leave a Message
Product Description

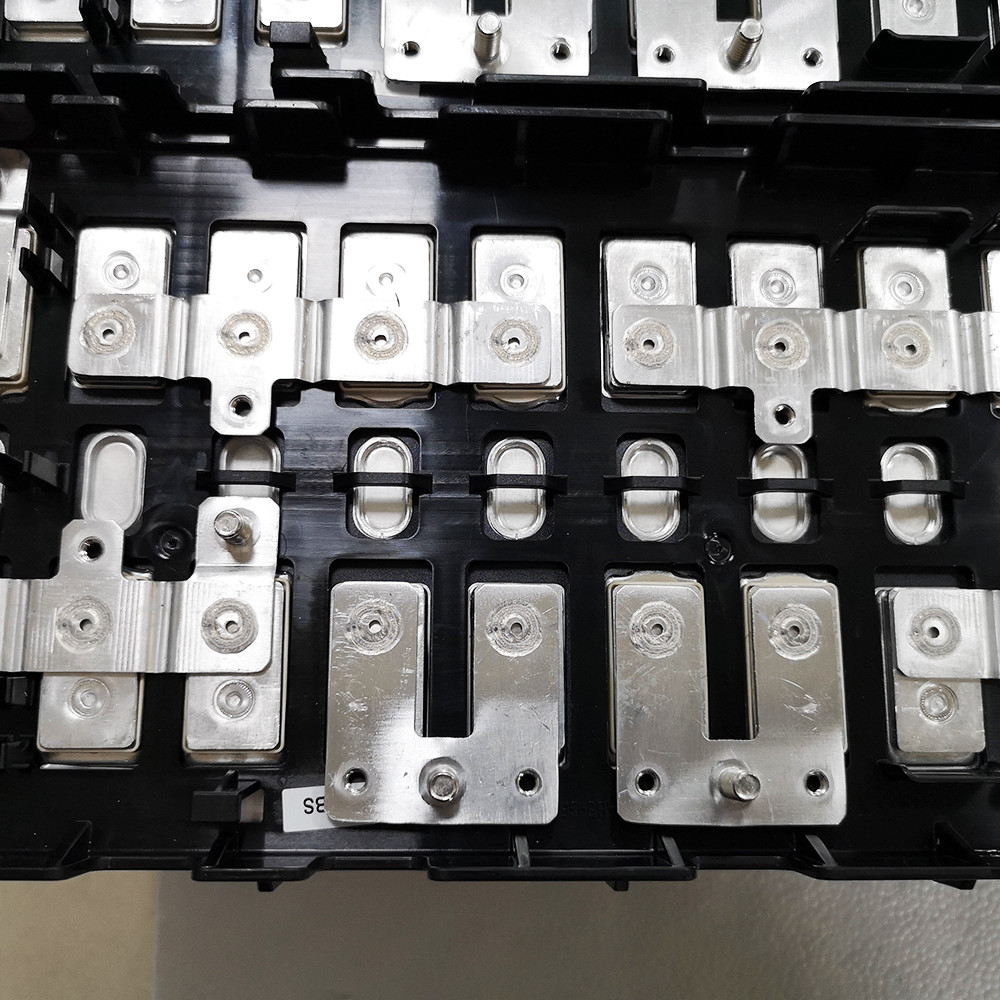

2000W Automatic Prismatic Lithium Battery Pack 1.5mm Aluminum Nickel Tab Fiber Continuous Laser Welding Machine

Laser welding is an efficient and precise welding method which uses high energy density laser beam as heat source.

Laser welding is one of the important aspects of laser material processing technology. The welding process belongs to the heat conduction type, the laser radiation heats the workpiece surface, and the heat on the surface diffuses through the heat transfer guide. By controlling the width, energy, peak power and repetition frequency of laser pulse, the workpiece is melted to form a specific molten pool. Laser welding is a new type of welding method. Laser welding mainly aims at the welding of thin-walled materials and precision parts, which can realize spot welding, butt welding, stack welding, seal welding, etc., With the following characteristics: 1. It has high aspect ratio, small weld width, small heat affected zone, small deformation and fast welding speed; 2. The weld is flat and beautiful, and there is no need to deal with or only simple process after welding; 3. The weld has high quality and no porosity, which can reduce and optimize the impurities in the base metal. the microstructure can be refined after welding. The strength and toughness of the weld are at least equivalent to exceed the base metal; 4. It can be precisely controlled, the focus light point is small, it can be positioned with high precision, and it is easy to realize automation; 5. Welding between some different materials is possible;

Laser Power
Control Method
Control card and computer
XY Travel
Customizable, Max 700*500mm
Z Travel
Customizable, Max 400mm
R Axis
Optional, 360° rotation
Position Accuracy
Repeatability Accuracy
Motion Source
Step motor or Servo motor
Max Speed
Welding Penetration
Cooling Method
Water cooling
Electricity Demand
Single phase 220V/50Hz 3-phase 380V/50Hz
Laser Wavelength
Observation Syatem
Red light and CCD system
Gas Protection
Optional, Argon, Nitrogen
Environmental Requirements
No vibration, interference and ventilation
Protection lens, purified water, protection gas
Machine Size
Machine Weight
