Linear Battery Liquid Injection Machine Automatic 1.5KW CE Certificate

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-ZXZY1
Minimum Order Quantity 1 Sets
Price USD80000-250000/Sets
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-ZXZY1 Power 1.5KW
Voltage 110V/220V Work Efficiency MAX 1.5--4K/H
Dimension(L*W*H) 10*1.2*1.7M(L*W*H) Injection Accuracy ±0.03g
High Light

Cylindrical battery automatic liquid injection machine


Electrolyte automatic filling machine


Automatic vacuum liquid injection machine

Leave a Message
Product Description

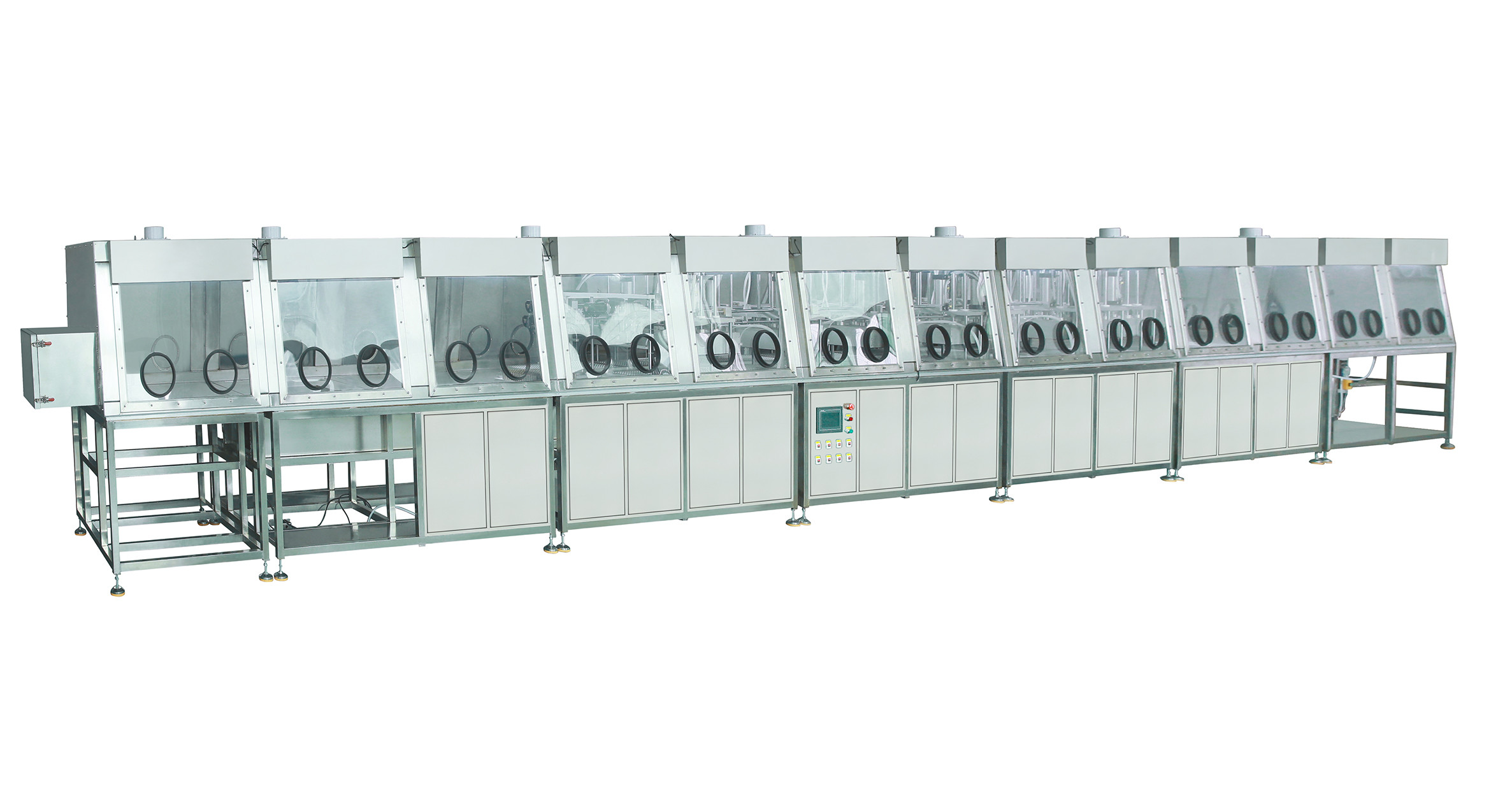

Linear Automatic Cylindrical Battery Liquid Injection Machine


1. Function overview:

1. This product is mainly used for liquid injection of cylindrical batteries, cap welding and vacuum static integrated flow linear equipment. Only need to manually load and unload the pallet, and the rest of the process equipment is automatically completed. This machine includes a glove box, five sets of liquid injection systems, and seven sets of vacuum stationary systems.

2. Working principle: Workflow.→Feeding→Manual loading on the tray→One injection→one vacuum→second injection, second vacuum→three injections→three vacuums→four injections→four times a vacuum→four times The second vacuum→five injections→five first vacuum→five second vacuum→retrieving the cover plate→the end of the work.



2. Basic parameters:

1. Working voltage: AC220V, power about 1.5KW.

2. Applicable battery: 18650 cylindrical battery, single 196PCS/disk (other specifications can be customized).

3. Working efficiency: (MAX) 1.5--4K/H, (production capacity depends on capacity).

4. Equipment size: (MAX) length 10m * width 1.2m * height 1.7m.


3. Technical parameters:
1. Double head electric injection pump:

a. Liquid output: 0--2.5g single time; (continuously adjustable).

b. Liquid injection accuracy: ±0.03g.

2. XY axis injection system:

a. Working stroke (MAX): X-axis 200MM, Y-axis 200MM.

b. The working speed (MAX) moves 50 times per minute/MIN.

3. Vacuum static box:

a. Vacuum degree: -0.09 MPa.

b. Cycle times: 0-5 can be set.

c. Pumping/resting time: 0~60min can be set.


4. Process performance:

1. The main components of the glove box: stainless steel frame, imported PE transparent glass.

A. Equipped with 5 glove boxes and 12 stations; (maintenance window).

B. The frame adopts SUS304, which has good corrosion resistance and high strength.

C. The visual window adopts imported PE transparent board, which has strong anti-corrosion and corrosion resistance.

D. The box body has good sealing performance.

2. The main components of the liquid injection system: liquid storage tank, X, Y axis liquid injection rack, 2.5g double-head liquid injection pump, liquid injection fixture, bus control system.

A. Configure 5 sets of liquid injection systems.

B. Double head injection pump, the single injection volume can be adjusted from 0-2.5 g.

C. Equipped with liquid injection fixture, each tray can hold 196 batteries. Standard (30PCS tray) Remarks (customer optional standard equipment is pipeline type): 1. The tray is returned to recycling by manual return to the water line.

3. The main components of the vacuum static system: equipment box, digital vacuum gauge, anti-corrosion sealing ring, bus electric control system.

A. Equipped with 7 sets of vacuum static boxes.

B. The vacuuming time and the standing time are independently and automatically adjustable.

C. Equipped with special corrosion-resistant sealing ring.
