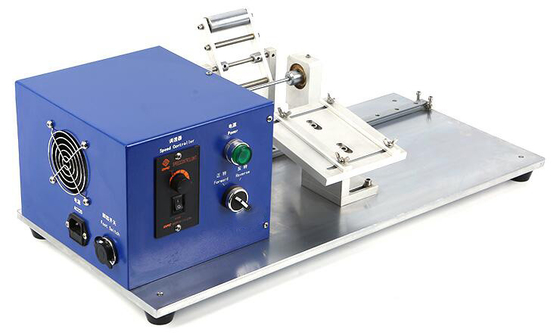

Laboratory Manual Battery Cell Making Machine For Cylindrical Cell Winding 40W

  • Laboratory Manual Battery Cell Making Machine For Cylindrical Cell Winding 40W
  • Laboratory Manual Battery Cell Making Machine For Cylindrical Cell Winding 40W
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-WM135
Minimum Order Quantity 1 Piece
Price USD1500-2500/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model ZK-WM135 Working Voltage AC100V/220V 50/60Hz
Winding Speed 0 - 170 RPM Adjustable Suitable Battery Size Less Than Φ35*L90mm, Or According To Your Requirement
Power 40W Dimension 720*320*280mm
Highlight

Manual Cylindrical Cell Winding Machine

,

battery Winding Machine

,

Cell assembly machine
Leave a Message
Product Description

  •

  • Hot-sale Manual Cylindrical Cell Winding Machine for Laboratory

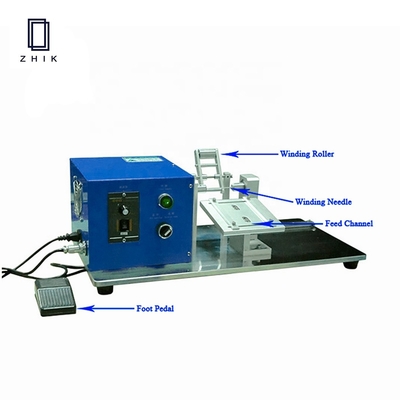

ZK-WM135-Cylinder semi-automatic winder machine is used for winding battery anode/cathode electrodes with separator together in the research of Li-ion cylinder batteries.






Model
Semi-Automatic Winding Machine ZK-WM135
Working Voltage
AC110V/220V, 50/60HZ
Power
40W
Warranty
·One Year limited warranty with lifetime support
Winding Speed
0 - 170 RPM Adjustable
Suitable battery size
Less than Φ35*L90mm, or according to your requirement
Winding Mode
Switchable between clockwise and counterclockwise
Output
70-100EA/h, according to battery size and maunal
Product Dimensions
(L*W*H)
550*310*270mm
Net weight
About 20kg (45 lbs)
Package size
720*320*280mm
Package weight
40kg

Application Notes
This machine can be used for cylinder battery with round winding shaft,
and you can also choose the square winding shaft for pouch cell core winding,
We will supply with the suitable winding accessories according to your battery model
