Double Sided Spot Battery Welding Machine Automatic For Cylindrical Lithium Battery

  • Double Sided Spot Battery Welding Machine Automatic For Cylindrical Lithium Battery
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-DAS450D
Minimum Order Quantity 1 Set
Price 13000-15000USD/Set
Packaging Details Wooden packing
Delivery Time 35 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15 set/month
Product Details
Power Supply AC 110V/220V ± 10% 50Hz ± 2Hz Equipment Power 3KW
X-axis Stroke 0 -450m M Z-axis Stroke 0 - 300m M
Welding Speed 0. 5 Seconds / Point; 3000 - 3600pcs / Hour Maximum Loaded Cell (18650) 300PCs(20X15)
Thickness Of Welded Nickel Strip 0. 1 Mm -0. 3 Mm; Fork Or Bump Above 0.2 Mm Repeat Positioning Accuracy ± 0.02m M
High Light

Automatic double sided spot welding machine

,

Lithium Battery Welding Machine

,

21700 Automatic spot welding machine
Leave a Message
Product Description

  • Automatic double sided spot welding machine for cylindrical lithium battery ZK-DAS450D

  • Automatic double-sided spot welding machine

  •

一. Equipment introduction

Applicable to:

Electric vehicle battery pack；

Automobile battery module；

Street lamp battery；

Balance car battery pack；

Scooter battery pack；

Mobile power supply；

Start the battery pack module；

Power tool battery pack；

Notebook battery pack, etc





二. Parameters of complete machine and power supply:
1. Equipment power supply: three-phase λ 220V±10%/50Hz±10%;
2. Equipment weight: 360 kg;
3. Overall dimension: 900mm (length) * 1100mm (width) * 1700mm (height);
4. Service environment:
4.1 please avoid using the equipment in places with high temperature, high humidity, vibration or impact, metal powder and welding spatter, and pay attention to the control of ambient temperature around the equipment;
4.2 equipment must be grounded and separated from personnel grounding.
5. Service life of equipment: more than 5 years.

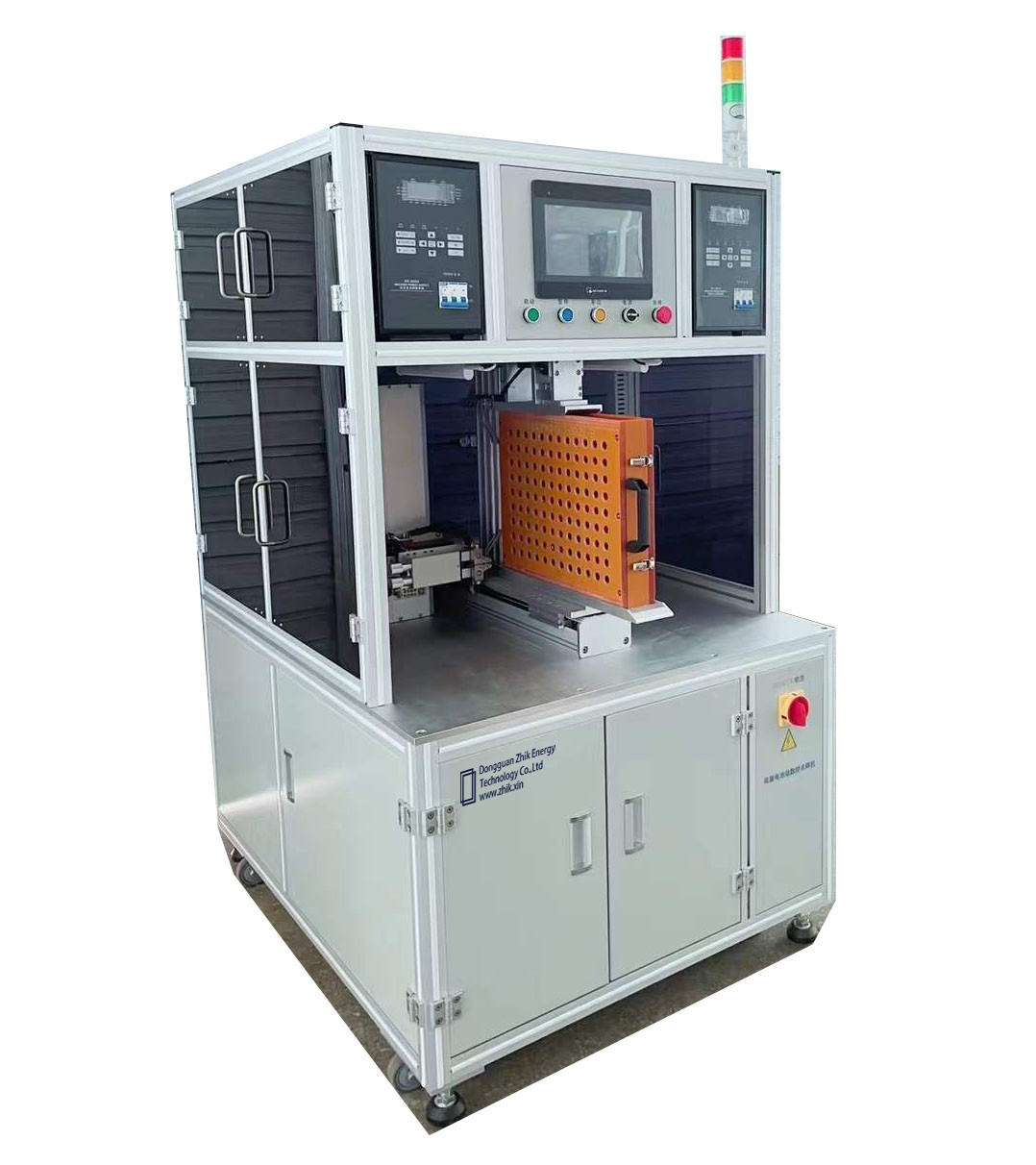

 Double Sided Spot Battery Welding Machine Automatic For Cylindrical Lithium Battery 0     Double Sided Spot Battery Welding Machine Automatic For Cylindrical Lithium Battery 1



X-axis stroke 0 -450m m
Z1 shaft stroke 0 - 300m m
Z2 axis stroke 0 - 300m m
welding speed 0. 5 seconds / point; 3000 - 3600pcs / hour
Maximum speed of motor drive 1 500mm/s
Maximum loaded cell (18650) 300PCs(20X15)
Number of file groups that can be saved 99 groups
operating system Motion controller + man-machine screen
Transmission mode Spindle closed-loop motor + screw + linear guide rail
Spot welding machine head servo motor
Thickness of Welded Nickel Strip 0. 1 mm -0. 3 mm; Fork or bump above 0.2 mm
Repeat positioning accuracy ± 0.02m m
Overall dimension LxWx H =900X1000X1600
