iron removal Slurry Filtration Equipment with 110V 220V Voltage

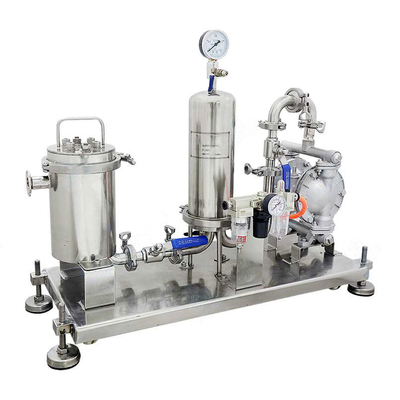

ZK-FT03 Slurry Iron Removal Filtration Processing Machine is used as slurry iron removal filtration treatment equipment, which is applied to the optimization of slurry after batching of positive and negative electrode slurry of lithium ion battery and before coating. The equipment is equipped with iron removal and vacuum filtration. item function.

The filter tank is all stainless steel design, with good acid and alkali corrosion resistance;
Stainless steel filter screen, different mesh filter screen can be configured according to requirements;
Equipped with permanent magnets for iron removal, the magnets can be easily removed for cleaning;
Optimize the fine particle size of the slurry and improve the consistency of the coating product;

Air source:

0.5-0.7MPa dry air

Pneumatic diaphragm pump:

pump body stainless steel, diaphragm PTFE, flow: 1m3/h, lift: 10m, suction lift: 1.5m (water)

Flow direction:

down in up out

Filtration method:

vacuum filtration, magnetic separation for iron removal, continuous treatment

Filter specification:

150 mesh stainless steel filter element, the mesh can be customized according to customer requirements

Iron removal capacity:

4 φ25*200mm magnetic rods, single 10000 Gauss

Slurry state:

Recommended viscosity≤20000CP, solid content≤80%

Cavity:

304 stainless steel, clamp connection

Interface:

Inlet and outlet φ25 clamp joint (chuck 50.5)

Valve:

φ25 manual ball valve (chuck 50.5), 2; 304 stainless steel

Equipment size:

L990*W380*H700(mm)

Weight:

about 50Kg
