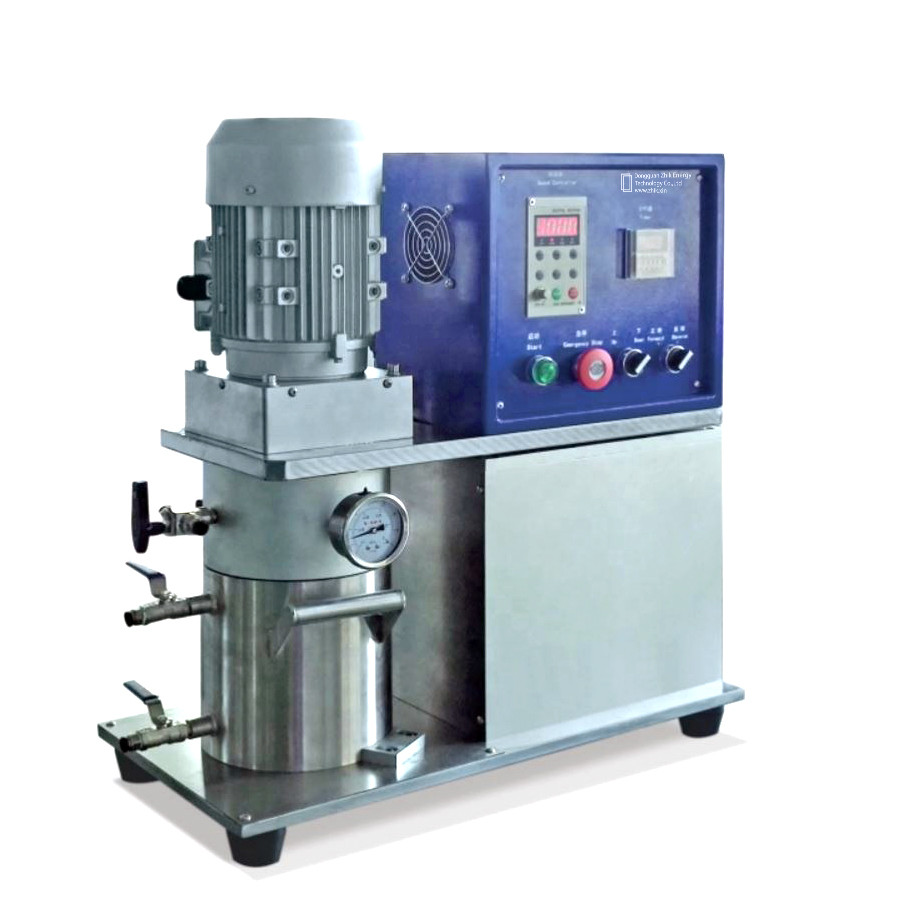

Vacuum high speed mixer machine For Lithium ion Battery Research 5L Capacity

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-GS05
Minimum Order Quantity 1 Sets
Price USD1850-2600/Sets
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-GS05 Max. Loading Capacity 5L
Voltage 110V/220V Power 0.75KW
Package Size 700 H * 600 L* 300 W Mm Weight 90kg
High Light

battery speed mixer machine


Battery slurry mixer


Lithium Ion high speed mixer

Leave a Message
Product Description
  • High Speed Vacuum Mixer For Lithium ion Battery Research



ZK-GS05 is a high-efficiency equipment integrating vacuum mixing and dispersing. It is suitable for the positive and negative electrode slurry mixing in the battery experiment process, as well as the mixing of powder materials and various ceramics. By programming the controller to set the time, speed, and the direction of rotate.


*Using the industry-leading soft sealing process, it can maintain -0.098Mpa for more than 24 hours;
*Adopting precision guide column support, the cylinder automatically pushes the barrel to open and close, humanized design, precise and efficient;
*1L double-layer stainless steel container, the barrel body is made of high quality 304 stainless steel, and the lathe is finished and then polished by precision automatic polishing machine to ensure high precision;
* The Speed range is 0 to 1400 rpm, time, speed, and the direction of rotation can be set by the controller.
*The motor adopts the gearbox frequency conversion adjustment, which can select different speed and torque according to different material and viscosities;
*Doubly dispersed blade design, the material is tumbling up and down and around, so that the slurry is mixed quickly and evenly;
* Small size, saving space;
* Exquisite appearance, using three-dimensional geometric design, simple and beautiful;



Rated power
0.75KW, 220V
Stirring speed
0-1400 RPM / min; speed can be adjusted by frequency converter;
Vacuum degree
-98KPa (vacuum pump not included)
Mixing Container
1L, 2L& 5L can be customized
The Barrel Opening and Closing Mode
the cylinder drive upper cover rises
Machine size
700 H * 600 L* 300 W mm
Timing function
you can set the time 0-99 (H)
