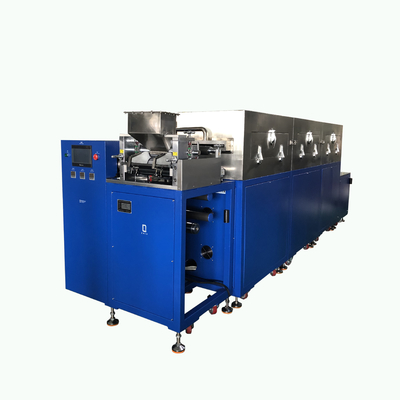

280mm Battery Electrode Coating Machine Roll To Roll Transfer Type Continuous

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-CZ300L
Minimum Order Quantity 1 Sets
Price USD38000-45000/Sets
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-CZ300L Max Electrode Width ≤280mm
Coating Speed 100-1500mm / Min (adjustable) Coating Accuracy ≤ ± 0.003mm
Dimension(L*W*H) 3800 × 810 × 1300 Mm(L*W*H) Weight About 2050 Kg
High Light

280mm Continuous Coating Machine


Battery Electrode Coating Machine


Continuous Battery Electrode Coating Machine

Leave a Message
Product Description

Battery Coating Machine

Lithium Battery Coating Machine Coating Mechanical Battery Coating Machine



Description of Coating Machine


The batch type experimental coater is a three-roll transfer coating equipment, which can perform continuous and intermittent coating, and is convenient for use in the surface coating process of various substrates. It is especially used in the lithium-ion battery industry. The equipment is designed for the convenience of researchers and meets the requirements of coating accuracy and consistency that are no different from production. The drying effect is excellent. It is suitable for lithium-ion batteries, super capacitors, nickel batteries and other Ideal for secondary battery research and development and small trials


Specification of Coating Machine

Model ZK-CZ300L Battery Coating Machine
Warranty One Year limited warranty with lifetime support
Pole piece width ≤300mm
Coating speed 100-1500mm / min (adjustable)
Coating accuracy ≤ ± 0.003mm
Coating roller bounce ≤2μm
Coating roller diameter Φ100mm
Unwinding diameter (Max) Φ250mm
Rewinding diameter (Max) Φ250mm
Tension control 5-50N (adjustable)
Scraper positioning accuracy Dial indicator display, accuracy ± 1μm

Drying temperature (Max)


Adjustable from room temperature to 150 ℃ with hot air circulation
Heating area Area 3, 1.2 meters
Dimensions Length × width × height = 3800 × 810 × 1300




Features of Coating Machine


  • It can be switched freely to realize continuous and intermittent coating;
  • Base material tension control, belt running is stable, equipped with deviation correction device;
  • Hot-air oven, blowing on both sides of the upper and lower sides, with high-quality drying effect;

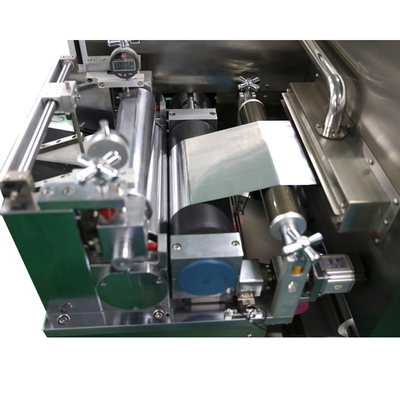

  • Three-roll transfer coating with wider coating window;

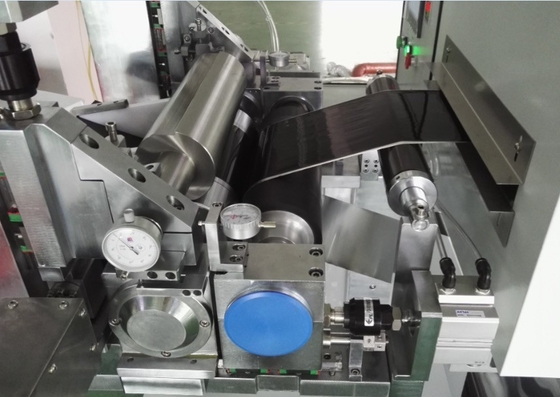

  • Comma scraper measurement, with precise adjustment mechanism, to obtain high coating accuracy;
  • PLC control, touch screen operation, easy to use;
  • Optional solvent recovery and treatment device;


Process of Coating Machine

280mm Battery Electrode Coating Machine Roll To Roll Transfer Type Continuous 0


Our service

A. Warranty: 12 months after receiving the machine. During the warranty period, once the parts are damaged. We will ship it to you free of charge.

B. Out of Warranty: Part Cost Price

C. Our machines are installed, adjusted, re-checked, and re-run before shipment. All complete units are fully installed. You can use the machine as soon as you get it.

D. When using the machine for the first time, we have some methods to help you learn the operation.

(1) English operating manual.

(2) Provide free training for your employees who come to the factory. You are solely responsible for travel expenses.

(3) If you need us to send our technicians to your place to train or solve technical problems, you are only responsible for

Travel and room and board expenses for our staff.

(4) Provide technical support for photos, videos or cameras via the Internet.

E. After-sale service: Spare parts and technical support are provided for a long time.



Why choose US?

The leading core technology, stable product quality, strict control of each quality, timely and efficient after sale service. The whole production process controlled by our own factory.

1. Strict Quality control

All the machines are assembled, tested,and inspected from materials completed by our own factory

2. Our hassle-free services

① We provide comprehensive one-stop services, customer training and satisfied after sales services.

② Online support, video technical support for troubleshooting manufacturing problems, engineers are available to service oversea as necessary.

③ Sold enjoy one year of free equipment warranty and lifetime technical support.

No mater you are a green hand, we will train you up-to-date technology skills, and keep an eye on your business opportunities.

3. Professional team Customer may also ask:

We have teams of experienced technical experts and professionals providing most professional and just-in-time technical consults and services, timely supply of spare parts in place.

If you are still confused how to start printing work, don't worry, contact us and we will help you out!! No mater you are a green hand, we will train you up-to-date technology skills, and keep an eye on your business opportunities. Our friendly and

professional team that is able to handle all your inquiries whenever you need.

4. Safety and fast transportation



Q: What is your warranty policy?

A: We provide two years warranty for all parts, if customers need five years warranty, it is also available.

Q: What is your after-sale service?

A: We provide equipment & software installation and training, as well as plate test & production training, if equipment has any problem, 24 hours customer service is online, customers will get a quick professional technical team remote diagnosis support.

Q: What is your delivery time?

A: Goods will be delivered in one or two months after order is confirmed.

Q: What service can you offer?

A: We provide OEM/ODM service, have a stronger R&D team to best support you.
