PID Closed Loop Tension Control System Slot Die Coater For Battery Electrode

  • PID Closed Loop Tension Control System Slot Die Coater For Battery Electrode
  • PID Closed Loop Tension Control System Slot Die Coater For Battery Electrode
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-SDC350-3
Minimum Order Quantity 1 Sets
Price USD25000-29000/Sets
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max Electrode Width 100~280mm Coating Speed 0.1-1m/min
Coating Accuracy ≤ ± 0.003mm Roller Width 350 Mm
Equipment Mechanical Running Speed 3m/min Keyword Slot Die Coating,Battery Transfer Coater,Roller Coater
Highlight

280mm Electrode Slot Die Coater

,

Battery Electrode Slot Die Coater

,

Battery Electrode Slot Die Coating Machine
Leave a Message
Product Description



Slot Die Coating Machine
1.Applicable to the coating process of oily or water-based lithium iron phosphate, oily lithium cobaltate, NMC, lithium manganate, lithium nickel cobalt manganese oxide, oily or aqueous negative carbon graphite, lithium titanate and other slurry systems;
2.Using fully automatic PID closed-loop tension control system, the tension control accuracy can reach ±1N level; 3.Imported standard parts such as Siemens PLC control system and high-precision servo motor to ensure the high consistency and stability of the coated product in terms of areal density and size. The proportion of imported standard parts to the standard parts of the whole machine is as high as 85%.

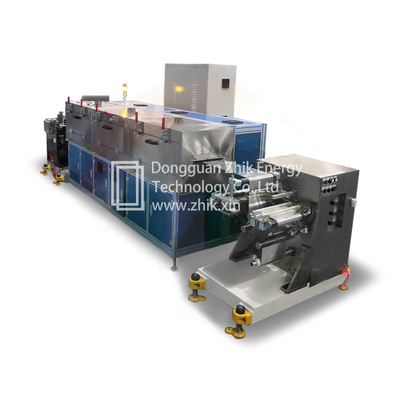

PID Closed Loop Tension Control System Slot Die Coater For Battery Electrode 0
1.
Suitable system
Oily or water system lithium iron phosphate, lithium cobaltate, lithium manganate, NMC, lithium nickel cobalt manganese oxide,
lithium titanate, carbon graphite and other systems

2.
Operating substrate thickness
Al foil:10～50um
Width :150-300mm
Diameter:Max:250mm
Weight:Max 500kg

Cu foil:10～50um
Width :150-300mm
Diameter:Max:250mm
Weight:Max 500kg
Both suitable for single side sooth and double side smooth.
3.
Roller width
350 mm

4.
Coating width
100~280mm

5.
Equipment mechanical running speed
3m/min

6.
Equipment coating speed
0.1-1m/min
Depending on the drying condition
7.
Suitable viscosity of slurry
2000~16000 Cps

8.
Single side coating dry thickness range
50-250μm

9.
Minimum intermittent length
5mm

10.
Multistage minimum coating length
20mm

11.
Solvent properties
Oil solvent NMP (s.g=1.033,b.p=204℃)

Aqueous solvent H2O/NMP (s.g=1.000,b.p=100℃)

12.
Suitable solid content
Cathode S．C. 60%±20%

Anode S．C. 50%±10%(PVDF)
S．C. 50%±5%(SBR)

13.
Proportion
Cathode 1.5—2.5g/cm2

Anode 1～1.8g/cm2
14.
Coating mode
Bilayer front and back 3 different spaced intermittent transfer coating / second side automatic tracking / continuous transfer
coating

15.
Direction of substrate running
Forward coating, substrate positive, reverse empty foil operation

16.
Methode of change the roller
By manual

17.
Min coating thickness
20 um,accuracy 1%,precision coating thickness (dry film) is±2 um or better throughout the coating length and width.

18.
Coating length
300 m
