Conductive Aluminum Foil For Battery Cathode Substrate Carbon Coated 200mm

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number 200mm
Minimum Order Quantity 1 Box
Price USD180-350/week
Packaging Details Standard export packaging
Delivery Time 5-10DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000roll/week
Product Details
Density 0.5 G/m2 Surface Resistivity < 30 Ohms Per 25um2
Tensile Strength ≥150MPa Elongation ≥0.5%,≤6%
Surface Wettability Tension >50 Dyn/cm Copper Purity > 99.9%
High Light

Carbon Coated Aluminum Foil


Conductive Carbon Coated Aluminum Foil


Lithium Battery Aluminum Foil

Leave a Message
Product Description

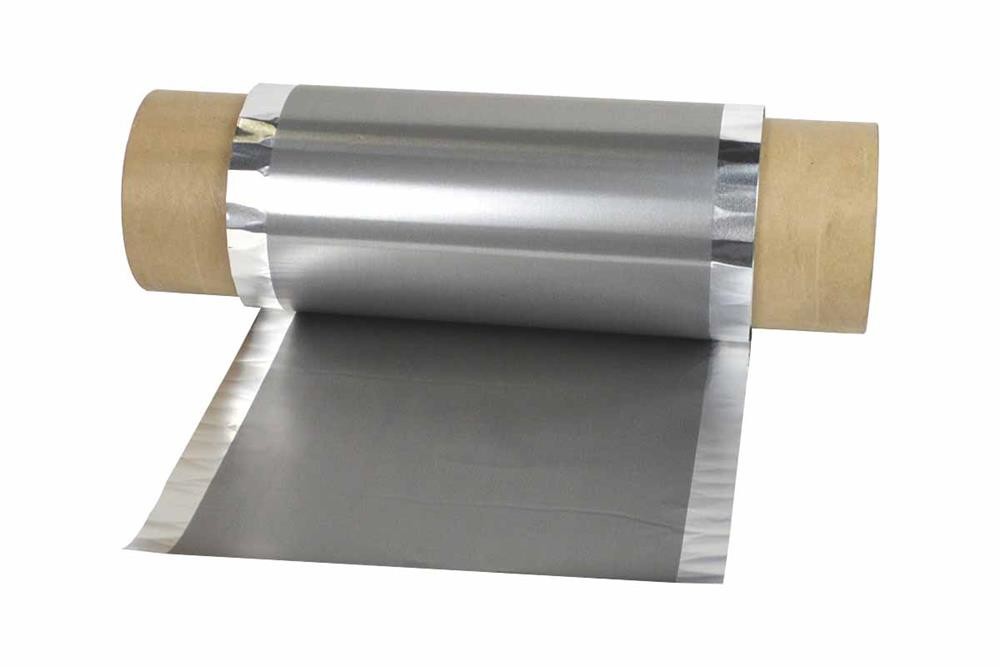

Conductive Carbon Coated Aluminum Foil For Battery Cathode Substrate

Conductive carbon coated Aluminium foil can replace conventional Al foil as battery cathode substrate with improved properties

  • Better electrical conductivity and less internal resistivity
  • Better mechanical strength and toughness to avoid short circuit caused by dendrite growth
  • Improved adhesion to the electrode material
  • Provides larger discharging capability and longer service life for Li-Ion batteries
  • Conductive carbon coating
    • Double side coating with 1-micron thickness each side
    • Density: 0.5 g/m2
    • Surface resistivity: < 30 ohms per 25um²
    • Binder: Modified acrylate adhesive (water based)
  • The substrate of Aluminum Foil
    • Purity > 99.9%
    • Thickness: 16 micron
  • Package for sales: 1.0 kg/roll
    • Coated width: 200mm
    • Total Width: 260 mm cathode substrate
    • Total Thickness: 18 um
    • Length: about 80 meters ( packing based on weight )
    • Core Size: 76 mm (3 inch)
