Aluminum Tab Lithium Battery Raw Material 3mm Width For Pouch Li Ion Cell

  • Aluminum Tab Lithium Battery Raw Material 3mm Width For Pouch Li Ion Cell
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number 3mm*0.1
Minimum Order Quantity 1 Box
Price USD12-15/Box
Packaging Details Standard export packaging
Delivery Time 5-10DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 Box

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Substrate Length 61mm Net Weight 46mg/pcs
Tape Material PP/PEN/PP Substrate Thickness 0.1mm
Substrate Width 3mm Material Aluminum 99.99%
Highlight

Aluminum Strip For Battery

,

Battery Aluminum Strip Tab

,

Aluminum Strip
Leave a Message
Product Description

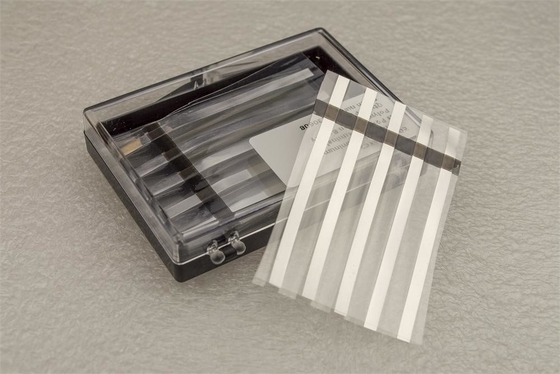

  • 3mm Width Aluminum Tab as Positive Terminal for Pouch Li-ion Cell 40pcs/Box



    Aluminum Tabs with 3mm width, for use as the Positive Terminal of Polymer Li-ion Batteries 40pcs/Box
    1. Connect to cathode current collector as polymer battery positive terminal
    2. Suggested Sealing Method: (parameter below may vary from case to case)
    - Soft type heat-sealing blade (Blade with rubber)
    - 180-200C for upper blade
    - 160-180C for lower blade
    - 40PSI (0.3Mpa)
    - 3 seconds heating time


    Specification

    Material Aluminum 99.99%
    Length 61mm
    Width 3mm
    Thickness 0.1mm
    Max. Loading Current 3A
    Net Weight 46mg/pcs
    Gross Wight 13.09g (Tabs with Box)
