Pouch Cell Lithium Battery Raw Material , Aluminium Laminated Film OEM ODM

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number 40*57
Minimum Order Quantity 1 bags
Price USD20-50/bags
Packaging Details Standard export packaging
Delivery Time 5-10DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 set
Product Details
Battery Size 40*57 Shape Pouch Battery
Material Aluminum Plastic Film Packaging Specifications 50 Pieces/pack
Place Of Origin Guangdong, China Application Pouch Battery
High Light

Pouch Cell Case Aluminum Laminated Film


Aluminum Laminated Film


Battery Materials Aluminum Laminated Film

Leave a Message
Product Description
  • Pouch Cell Case Packing Aluminum Laminate Film For Lithium Ion Battery

  • Product performance description


The formed aluminum-plastic film can be directly used for cell wrapping, and the forming size is L57mm * W40mm.

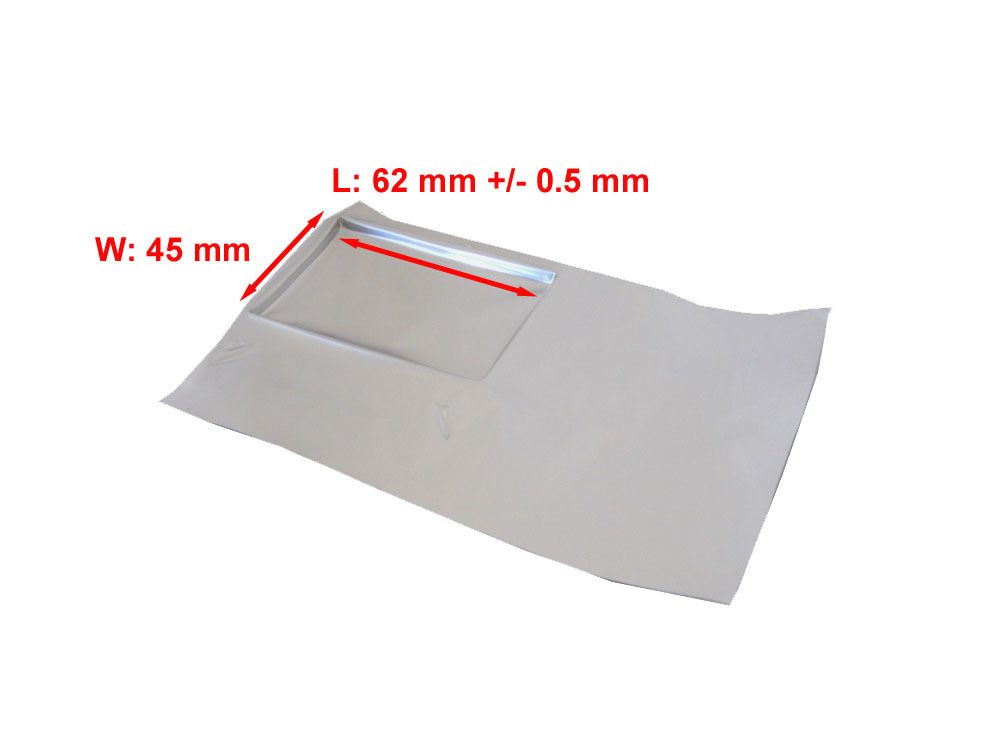

Case Dimensions Outside Dimension after sealing: 45 Width x 62 Length (mm)
Formed thickness options: From 1 mm to 5 mm; Please select the option from the optional bar
Net Weight 200g (50 pcs)
Layers from outside to inside (material in bracket)

Polyamid (JIS Z1714): 0.025mm(+-0.0025mm)

Adhesive (Polyester-polyurethane): 4-5g/m2

Aluminum foil (JIS A8079,A8021): 0.040mm(+-0.004mm)

Adhesive (Urethane-free Adhesive): 2-3g/m2
Polypropylene: 0.040mm(+-0.004mm)

Thickness: 111μm±11μm
Surface Quality Matte finish
Pinholes Subject to the applicable aluminum foil standard
Impurity 1mm or less in diameter
Fish Eye 2mm or less in diameter(clear),1mm or less in diameter(colored)
Moisture Vapor/O2 Transmission Rate 200ppm / 5 years
Laminate Strength

Nylon/Al more than 2N/15mm

Al/CPP more than 5N/15mm

Heat Seal Strength More than 29.4N/15mm wide at 200℃ x 0.2Mpa
Solvent Retention Less than 5mg/m2
Appearance Within the sample of the limit
