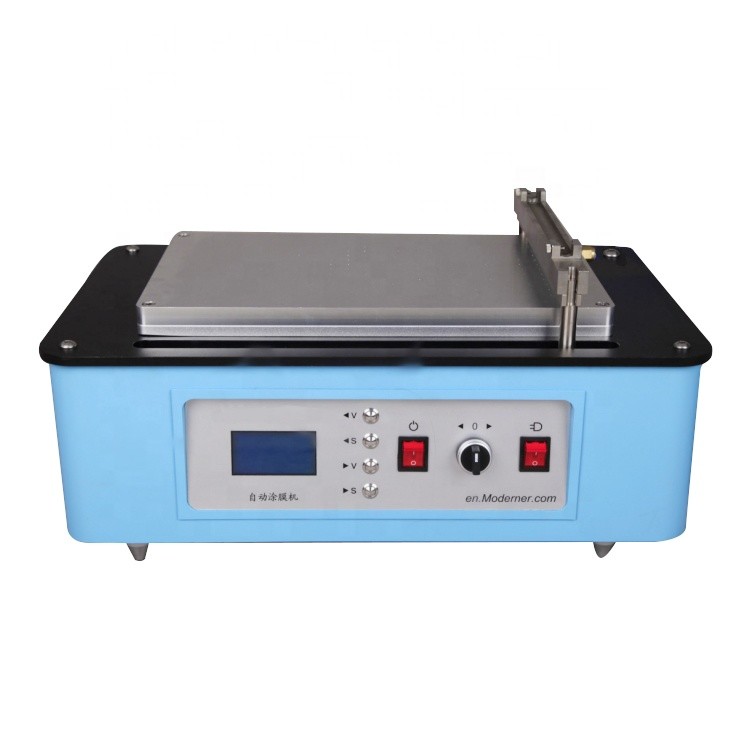

Lab Desktop Battery Coating Machine For Lithium Battery Electrode automatic

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-AFA-I
Minimum Order Quantity 1 Sets
Price USD2600-2800/Sets
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-AFA-I Coating Table Hole Range 305*177MM
Speed Of Coated Push Rod Movement (optional In Both Directions) 5-10-15-20-25-50-75-100-125-150MM/S Automatic Grade Automatic
Dimension(L*W*H) 550*340*270MM Weight About 41KG
Warranty 1.5years After Warranty Service Field Maintenance And Repair Service, Online Support,Video Technical Support
High Light

Desktop Battery Coating Machine


Electrode Coating Machine


Automatic Electrode Coating Machine

Leave a Message
Product Description
  • Precision Lab desktop hot doctor blade battery Coating Machine equipment For Lithium Battery Electrode
  • ZK-AFA-I Lab desktop automatic coating film dryer

ZK-AFA-I automatic coating film dryer is widely used in various high-temperature coating film research, such as ceramic thin film, crystal thin film, battery material thin film, special nano-thin film;

Main technical parameters
model AFA-I
The total power 100W
Coating table size 400*248*25MM
Coating table hole range 305*177MM
Speed of coated push rod movement (optional in both directions) 5-10-15-20-25-50-75-100-125-150MM/S
Coated push rod movement distance (bidirectional optional) 25-300MM(Each block interval)
Use the power supply 200V 50HZ
Overall dimensions 550*340*270MM
The weight of the 41KG
