Lab Lithium Ion Cylindrical Battery Manufacturing Equipment Production Line OEM ODM

  • Lab Lithium Ion Cylindrical Battery Manufacturing Equipment Production Line OEM ODM
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-CXM01
Minimum Order Quantity 1 Sets
Price USD40000-50000/Sets
Packaging Details Wooden packing
Delivery Time 45
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Company Name ZHIK Model ZK-CXM01
Delivery Date 52day Warranty Period 1year
Technical Support Permanently Available Equipment Voltage Customizable
High Light

Cylindrical Battery Production Line

,

18650 Battery Production Line

,

Production Line For Li Ion Battery
Leave a Message
Product Description

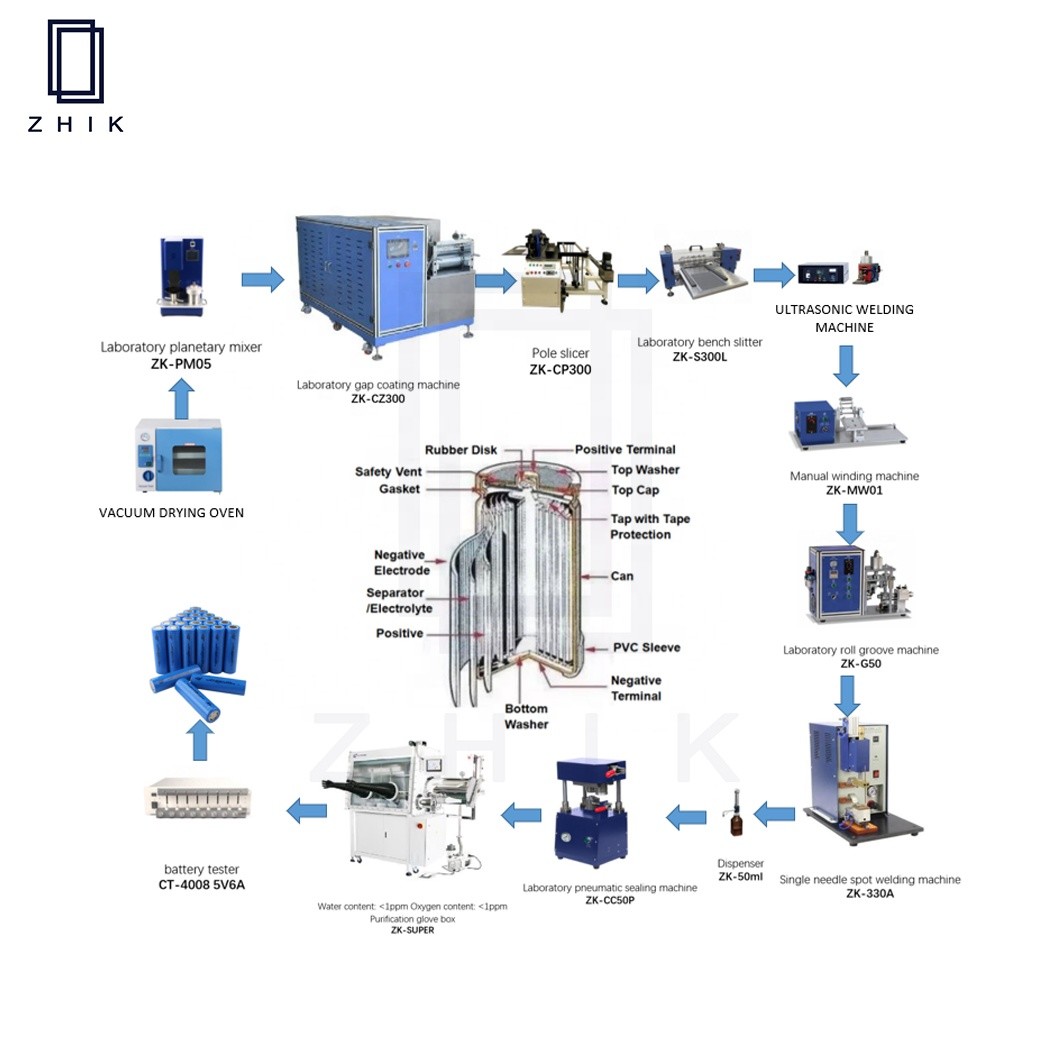

Lithium ion Cylindrical Cell Lab Fabrication Line Machine Production Equipment for Battery Set Up

  •

ZHIK is a leading manufacturer of affordable, compact, and durable battery research equipment. Our expert engineering team will assist and provide customers with the necessary guidance in selecting the most cost effective technology solution for all research needs.



Process
Product Name
Description
Powder Process
Tube Furnace
1200C Single Zone Tube Furnace
Tube size(OD)(mm):Dia60X1000
Powder Grinding
Planetary Ball Mill
0.4L Planetary Ball Mill
Powder Grinding
Zirconia Jar and Zirconia Ball
100mL zirconia Jar: 4set
1kg mixied size 5-15mm zirconia ball
Vacuum Mixing
Small Lab Mixer
Compact Dual-Shaft Planetary Vacuum Mixer Machine
(with a set of 500mL stainless steel jar)
Slurry Viscosity Testing
Touch Screen Viscometer
Lab Rotational Digital Touch Screen Viscometer
NDJ-5S
Electrode Coating
Electric Heat Film Coating Machine with Dryer
Optional Coating Size Heat Film Coating Machine
Coating size: 100x250mm
Roll press
Heat Roll Press Machine For Lithium Battery Production
Roller Size:
100mm x 200mm
(Rolling size can be customized)
Sheet Cutting
Battery Electrode Roll Slitting Machine
Slitting width: 20-500mm
Slitting thickness: 100-300um
Vacuum Drying
50L Digital Vacuum Ovens With High Temperature Controller & Inner Chamber
Temperature range:RT+10~200 C
Volume: 50L
Ultrasonic Welding
Al Tab Ni Tab Ultrasonic Welding Machine
Power: 2000W
24KHZ
(Can weld the battery tab and battery cap)
Electrode Winding
Semi-Auto Winding Machine
Suitable battery size:Less than Φ35*L90mm, or according to your requirement
Spot Welding
Precise Micro Spot Welder
Welding Thickness: 0.03 - 0.25mm
Welding Current: 2500A
Grooving
Laboratory 18650,26650,Etc Cylindrical Cell Grooving Machine
Grooving depth: 1.2~2.0mm
Grooving height: 1.1~1.5mm
Accuracy:±0.1mm
Productivity: 400 grooving /hr
(including a pc of 18650 grooving die)
Glove Box
Single-Side (1200*1000*900mm) Vacuum Glove Box With H2O & O2 Purification System
Environment of Box inside: H2O <1 ppm (20°C/68 ℉, 1 atm)
O2 <1 ppm (20°C/68 ℉, 1 atm)
Structure: Integrated structure (Purification System integrated under the box)
Electrolyte Injection
Laboratory Small Electrolyte Filling Machine For Li-Ion Battery
Injecting range: 0-50ml
Electrolyte Diffusion
Electrolyte Diffusion & Degassing Chamber
Product Dimensions:
1. Vacuum Box: 500mm(L) x 350mm(W) x 630mm(H)
2. Control Unit: 460mm(L) x 220mm(W) x 340mm(H)
including a pc of fixture for 18650
Hydraulic Sealing
Hydraulic Sealing Machine For Cylindrical Case
Crimping Dies: Six standard die selectable: including a pc of 18650 crimping die
Battery Analysis
5V6A 8 Channel Lithium Ion Battery Tester Equipment For Experiment
Current: Range: 12mA – 6000mA
Voltage: Range: 10mV-5Vfor charging, 2.5V-5Vfor discharging
(including battery clamps, software,middle machine, software, CDROM,Power cables, and manual)
