Lab Small Battery Rolling Machine 100mm Width For Electrode Rolling

  • Lab Small Battery Rolling Machine 100mm Width For Electrode Rolling
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-SM100
Minimum Order Quantity 1 Piece
Price USD1200-1400/Piece
Packaging Details Wooden packing
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-SM100 Effective Roll Width 100mm
Press Accuracy ≤±0.005 Roller Size 96mm Dia. X 100mm Width
Weight 45KG Equipment Size L350 X W240 X H350(mm)
High Light

Manual Rolling Machine

,

Press Machine

,

Lab Press Machine
Leave a Message
Product Description

  • 100mm Width Lab Small Hand Manual Battery Roll Press Machine Calender Machine Price For Electrode Rolling

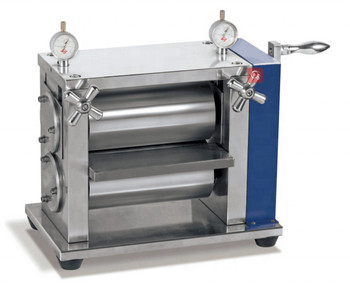

1. ZK-SM100  is a Lab Manual Roller Press Machine. The roller size is 96mm Dia. x 100mm Width. It is an ideal press machine for adjusting thickness to increase the density of battery electrode active material.



2. This lab roller press machine is mainly used in lithium battery electrode, small amount of precious metals such as gold and silver materials, copper, aluminum and other non-ferrous metal materials manually pressed.



Model  ZK-SM100
Warranty One Year limited warranty with lifetime support
Structure
  • Heavy duty steel frame, gears and handle
  • Roller made from hardened tool steel (HRC > 60)
  • Dual micrometer for accurate thickness adjustment
Roller size

96mm Dia. x 100mm Width

Roller surface with Cr electroplated coating, roller surface finish >0.8
Press accuracy ≤±0.005
Press thickness range 0-2mm, adjustable
Press width Max 100mm
Product dimensions L350mm x W240mm x H350mm
Weight 45kg
Application Notes
  • Must use acetone to clean and dry rollers' surfaces to avoid rusting.
  • If it is not used for a long time, it needs to be coated with antirust oil.



Here are some of our test results for your reference.

Electrode Size Original thickness Finished thickness

LiFePO4

doble sided coated

 W50 x L260 mm 0.205mm 0.09mm

LiMn2O4

doble sided coated

 W50 x L260 mm 0.205mm 0.09mm

Copper foil + graphite

single sided coated

 W75 x L240 mm 0.09mm 0.04mm
