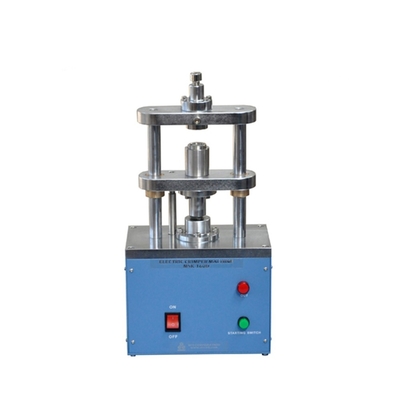

Electric Battery Crimping Machine for CR20XX Coin Cells Digital Pressure Controlled

  • Electric Battery Crimping Machine for CR20XX Coin Cells Digital Pressure Controlled
  • Electric Battery Crimping Machine for CR20XX Coin Cells Digital Pressure Controlled
Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number 160E
Minimum Order Quantity 1 Piece
Price USD2000-25000/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model 160E Working Voltage AC100V/220V 50/60Hz
Structure Heavy Duty Steel Platform Product Dimensions Dimension: 220mm(L) X 130mm(W) X 430mm(H)
Weight 120KG Equipment Size 1500(L)*500(W)*1100(H)
Highlight

msk 160E

,

MTI Electric Crimp Press

,

Coin Cell Electric Crimping Machine
Leave a Message
Product Description

  • Digital Pressure Controlled Electric Crimper for CR20XX Coin Cells (Ar Glovebox Compatible) 160E

  •

  • COIN CELL ELECTRIC CRIMPING MACHINE

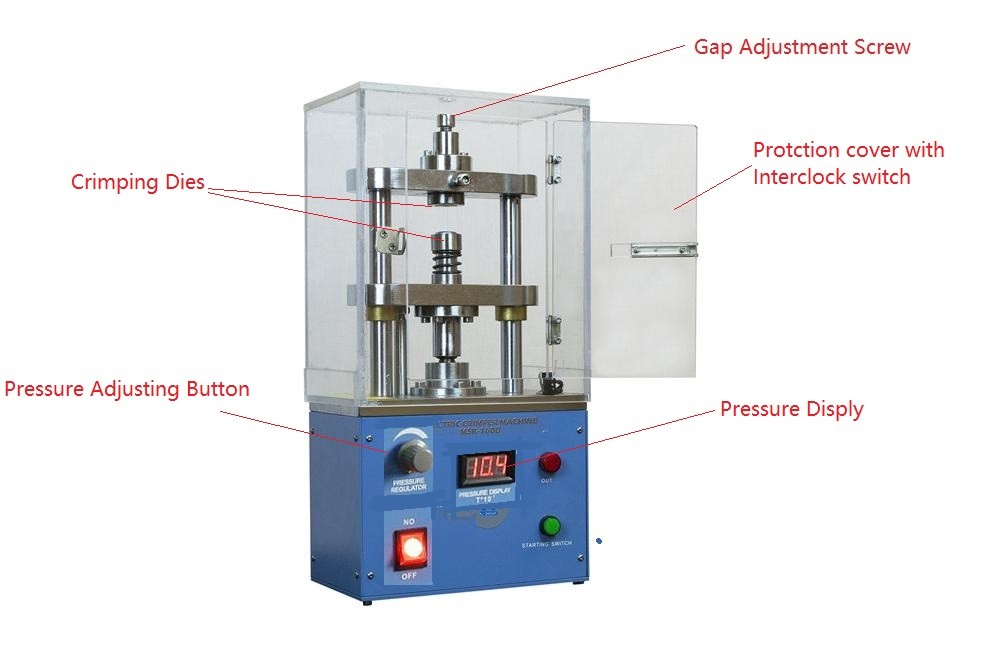

ZK-MSK-160E is a compact Pressure Adjustable Electric Crimper for CR2016, CR2025, and CR2032 coin cells. The use of a 24VDC motor enables the operation inside a glove box under the Ar atmosphere for Li-S, Li Metal Air, and Li half-cell testing. The digital pressure controller can keep the crimping force consistent at each time. The compact size of the crimper allows the user to move it in or out from the airlock chamber of the standard glove-box.




Power
voltage single-phase 110V~220V AC±10%; frequency 50Hz/60Hz; power 100W
Die Set & Compatibility
Assembling dies for crimping CR2032, CR2025, & CR2016 coin cells (Optional CR2325, CR2450 die sets are available upon request).
Pressure
A built-in load cell with a digital display for pressure measurement and control Pressure adjustment range: 0-1.35T Recommended
assembling pressure for CR20XX coin cells should be over 0.8T for MTI's CR2032 cases. Please find the desired pressure by
experiment.
Structure
Heavy Duty Steel Platform
Product Dimensions
* Dimension: 220mm(L) x 130mm(W) x 430mm(H)
* Net Weight:: 25 kg (55 lbs)
* The crimper can be sent into the glovebox via an airlock chamber
Compliance
CE
Warranty
Two years limited warranty with lifetime support
Net Weight
55Ibs
Shipping Weight
80Ibs
