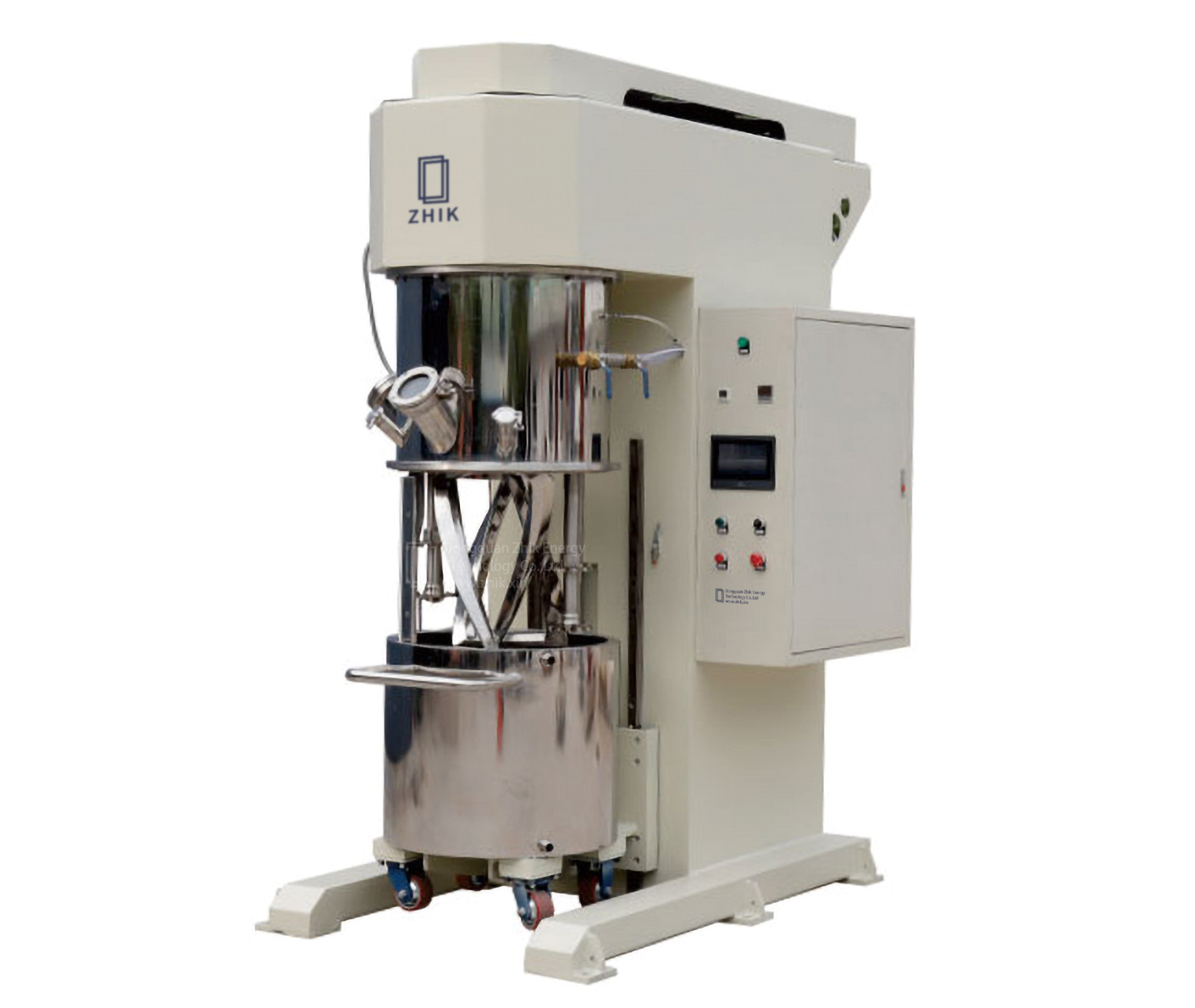

50L Vacuum Planetary Mixer For Battery Slurry Mixing CE Certificate

Place of Origin China
Brand Name ZHIK
Certification CE IOS
Model Number ZK-PM50L
Minimum Order Quantity 1 Piece
Price USD20000-25000/Piece
Packaging Details Wooden packing
Delivery Time 24
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15set/month
Product Details
Model ZK-PM50L Max. Loading Capacity 50L
Voltage 380V Power 13KW
Package Size L1860mm*W1130mm*H2000mm Weight 1380kg
High Light

Planetary Mixer


50L Double Planetary Mixer


Three shaft double planetary mixer

Leave a Message
Product Description
  • vacuum planetary mixer for battery slurry mixing 50L


The double planetary mixer is particularly suitable for dissolving, mixing, mixing, and reacting materials from powder to high

viscosity and high density. Different mixing paddles can be selected according to different production processes and material

characteristics (such as: twist frame, multi-blade formula)





1. Temperature measurement method All models PT100 temperature sensor detects the temperature of the material
2. The double layer of the material barrel passes through cooling water or heat conduction hot oil
3. The standard mixing pulp is twist pulp, which is one-time open-mold casting without any welding to ensure accuracy, and can be equipped with folding pulp.
4. The standard vacuum pressure gauge is Panasonic digital vacuum gauge
5. 20L, 30L, 50L, 100L, 200L dispersing linear velocity are 11.9M/S, 14.7M/S, 15.1M/S, 18.84M/S, 20.5M/S respectively
6. The barrel is double-layered + supercooled water or heat-conducting oil at the bottom of the diversion groove. The customer needs to heat the temperature over 60 degrees and needs to be outsourced with thermal insulation cotton. Customers need to point out in advance when ordering
7. The material barrel can be discharged at the bottom or at the front
8. The maximum heating temperature cannot exceed 200 degrees Celsius



Product name
Double planetary mixer
Model No.
Max.Loading Capacity
Range of Spindle Speed   1-3200  r.p.m
